MIPRO ACT-72 Dual Channel True Diversity Wireless Microphone Receiver

Product Introduction

The MIPRO ACT-72 Dual Channel True Diversity Wireless Microphone Receiver is a professional-grade dual-channel UHF wireless microphone receiver designed for live performances, houses of worship, conferences, auditoriums, education facilities, and professional audio applications. Built with advanced True Diversity technology, high dynamic range audio performance, and MIPRO’s exclusive ACT™ synchronization technology, the ACT-72 delivers stable wireless transmission, exceptional sound clarity, and reliable anti-interference performance even in demanding RF environments.

Featuring a rugged EIA-standard 1U metal chassis, full-color VFD display, and up to 400 preset channels, the ACT-72 is engineered for professional system integrators, event companies, rental providers, churches, and commercial AV installations requiring dependable wireless microphone performance.

---

Product Description

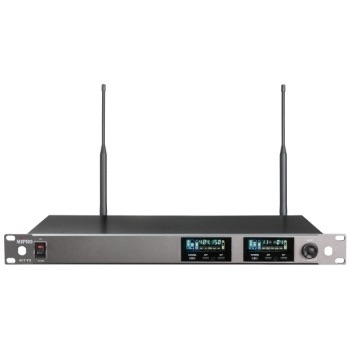

The MIPRO ACT-72 Dual Channel True Diversity Wireless Microphone Receiver combines advanced RF stability, intelligent frequency management, and transparent audio quality into a compact 19-inch rack-mountable receiver system. Utilizing UHF PLL synthesized circuitry with sophisticated RF and IF design, the ACT-72 significantly reduces interference while increasing the availability of compatible channels in crowded wireless environments.

The receiver supports 400 preset channels with multiple compatible frequency groups and a user-defined memory group for flexible deployment. MIPRO’s industry-leading ACT™ synchronization technology enables fast and accurate frequency synchronization between the receiver and transmitters.

Its True Diversity reception system continuously selects the strongest signal path for uninterrupted wireless operation, while the dual “PiloTone & NoiseLock” squelch circuits minimize unwanted RF noise and signal dropouts. The high-brightness full-color VFD display provides clear visibility of RF/AF meters, battery status, interference warnings, group/channel information, and more, making monitoring simple in both bright and dark environments.

Designed for professional audio installations, the ACT-72 also supports remote computer monitoring and control via optional MIPRO RCS.Net software, making it ideal for large-scale venues and centralized AV management systems.

---

Key Features & Bullet Points

• Dual-channel professional UHF wireless microphone receiver
• True Diversity receiving technology for stable RF performance
• EIA standard 19-inch 1U rack-mount metal chassis
• Advanced RF shielding and heat dissipation design
• 400 preset channels with user-definable frequency group
• MIPRO ACT™ infrared synchronization for fast frequency setup
• Dual “PiloTone & NoiseLock” squelch circuits reduce interference
• Full-color VFD display with automatic brightness adjustment
• RF interference warning indicator for optimized signal setup
• High dynamic range and high-fidelity audio reproduction
• Balanced XLR outputs with selectable output levels
• Single-channel or mixed output selection
• Supports remote setup and monitoring via MIPRO RCS.Net software
• Built-in universal 100–240V AC switching power supply
• Ideal for churches, conferences, stage performances, schools, auditoriums, and rental systems

---

Solution & Application

Professional Church & Worship Solution

The MIPRO ACT-72 Dual Channel True Diversity Wireless Microphone Receiver provides stable and interference-free wireless microphone performance for churches and worship halls where multiple wireless systems are used simultaneously. Its True Diversity technology and advanced squelch circuitry ensure reliable vocal transmission during sermons, worship sessions, and live music performances.

Conference & Corporate Meeting Solution

Perfect for meeting rooms, conference halls, and seminar venues, the ACT-72 delivers crystal-clear speech intelligibility with reliable wireless stability. The rack-mountable design allows easy integration into professional AV racks and centralized control systems.

Live Event & Rental System Solution

With up to 400 preset channels and advanced anti-interference capability, the ACT-72 is ideal for event companies and rental providers handling concerts, stage performances, and outdoor events where multiple wireless systems operate together.

Education & Auditorium Solution

Suitable for universities, lecture halls, and auditoriums, the ACT-72 enables professional wireless microphone management with easy monitoring, fast synchronization, and consistent audio performance for speeches, presentations, and educational events.

Commercial AV Integration Solution

The ACT-72 integrates seamlessly into professional sound systems, PA systems, and centralized AV installations, providing long-term reliability and stable wireless communication for commercial environments.

---

Technical Specifications

• Channel: Dual Channel
• Frequency Range: UHF 482~698 MHz / 480~874 MHz (country dependent)
• Bandwidth: 72 MHz
• Receiving Mode: True Diversity
• Frequency Response: 50Hz – 18kHz
• Signal-to-Noise Ratio: >108dB(A)
• THD: <0.5% @ 1kHz
• Output Connectors: Balanced XLR
• Power Supply: Built-in 100–240V AC Switching Power Supply
• Dimensions: 482 × 44 × 265 mm
• Weight: Approx. 3.0 kg
