MIPRO ACT-515 Wireless Microphone System + ACT-500H Handheld Mic (UHF Professional Malaysia)
Specifications
Details
ðĩ PRODUCT INTRODUCTION
The MIPRO ACT-515 Wireless Microphone System with ACT-500H Handheld Mic is a next-generation professional UHF solution designed for superior signal stability, crystal-clear audio, and reliable performance. Featuring a durable EIA-standard half-rack metal chassis and a new dual-color LCD display, the system provides clear visual status indication (Working / Standby) and intuitive control via a rotary knob and front-panel buttons.
Built on MIPRO’s proven ACT-7 Series technology, the ACT-515 incorporates a 24 MHz narrowband true diversity receiving circuit, ensuring long-distance, dropout-free reception—perfect for demanding environments such as live events, churches, and professional PA systems.
ð· PRODUCT DESCRIPTION

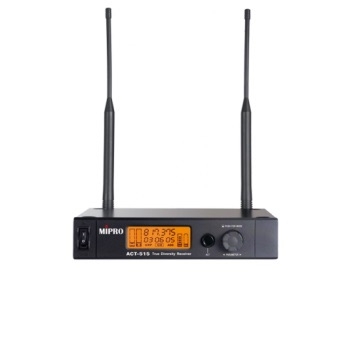

The MIPRO ACT-515 is a single-channel true diversity wireless receiver engineered for high-end audio applications. Its advanced design significantly reduces intermodulation distortion and increases the number of interference-free channels, ensuring stable operation even in crowded RF environments.
Equipped with PiloTone & NoiseLock dual-squelch technology and an RF interference warning indicator, users can easily adjust sensitivity (SQ) to maintain optimal signal performance. The built-in Auto Scan function quickly identifies the best available frequency, while ACT™ sync technology enables instant pairing between the transmitter and receiver.
The system supports 7 preset groups with 80 pre-programmed frequencies, and a user-defined group allowing up to 16 channels from 961 selectable frequencies. With optional RCS2.Net software, users can remotely monitor and control up to 64 channels in real time—ideal for large installations.

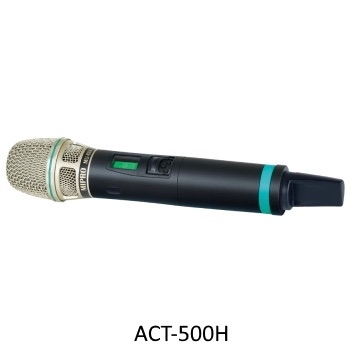

Paired with the ACT-500H handheld transmitter, this system delivers powerful, clear, and professional audio performance for speech, presentations, and live events.
ðĒ KEY FEATURES / BULLET POINTS
ðĪ Professional Handheld Wireless System
- Includes ACT-500H handheld microphone
- Ideal for speech, presentation, and stage use
- Single-channel professional system
ðĄ True Diversity Signal Stability
- 24 MHz narrowband true diversity receiving circuit
- Long-distance reception with minimal dropouts
- Reduced intermodulation distortion
ð§ Advanced Frequency Management
- Auto Scan for quick frequency selection
- ACT™ sync for fast transmitter pairing
- 7 preset groups with 80 frequencies
- User-defined group with up to 961 selectable frequencies
ð Superior Audio Performance
- Frequency response: 50Hz – 18kHz
- Dynamic range >111 dBA for clean, detailed sound
- Balanced & unbalanced output options
- Adjustable output gain levels
ðķ Professional Anti-Interference Technology
- PiloTone & NoiseLock dual-squelch circuits
- RF interference warning indicator
- Adjustable SQ sensitivity control
ð Expandable & Remote Control Ready
- Supports RCS2.Net software for remote monitoring
- Control up to 64 channels (optional)
- FSA frequency coordination software support
ð Durable & User-Friendly Design
- EIA standard half-rack metal chassis
- Dual-color LCD display with status indication
- Rotary knob + button control for easy operation
- Detachable antenna with signal boost capability
⥠Reliable Power System
- External AC 100–240V switching power supply
- Stable operation under voltage fluctuations
ðĄ TECHNICAL SPECIFICATIONS (SUMMARY)
- Channel: Single Channel
- Frequency Range: UHF 480 ~ 934 MHz (country dependent)
- Bandwidth: 24 MHz
- Receiving Mode: True Diversity
- Sensitivity: 6 dBμV (S/N > 80 dB)
- Dynamic Range: >111 dBA
- Frequency Response: 50 Hz – 18 kHz
- Audio Output:
- Balanced: +16 dB / 0 dB / -6 dB
- Unbalanced: +10 dB / 0 dB / -6 dB
- Interface: USB / ACT-BUS (remote control support)
- Power Supply: DC 12–15V / AC 100–240V
- Dimensions: 210 × 44 × 163 mm
- Weight: Approx. 0.9 kg
ðī SOLUTION / APPLICATION
ðŊ Ideal For:
- Church & Worship Systems
- Corporate Presentations & Conferences
- Stage Performances & Live Events
- Training & Educational Institutions
- Professional PA System Installations
ðĄ Why Choose ACT-515 Wireless System?
The MIPRO ACT-515 offers true diversity performance, advanced frequency control, and professional-grade audio clarity. With remote monitoring capability, anti-interference technology, and reliable signal stability, it is an excellent choice for professionals who demand consistent and high-quality wireless audio.
