Details

---

📄 Product Description

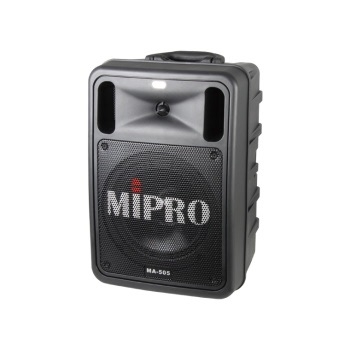

The MIPRO MA-505 is engineered for performance and versatility. Featuring a 1” tweeter and 8” woofer, it produces rich, full-range sound with deep bass and clear highs—ideal for medium to large spaces.

Powered by a 145W RMS (248W peak) Class D amplifier, it delivers up to 105 dB SPL, ensuring strong sound projection and wide coverage.

The system supports up to 4 wireless receiver modules, allowing multiple microphones to be used simultaneously. Its built-in active dual antennas ensure stable, long-distance wireless reception with minimal interference.

A key feature is its wireless interlink capability, enabling multiple MA-505 units to connect wirelessly to expand sound coverage without additional cables—perfect for large venues and outdoor events.

It also includes VOP (Voice-Over-Priority) for automatic microphone priority, tone control for sound tuning, and mixed input amplification for wired microphones, wireless microphones, and audio sources such as Bluetooth or USB (optional).

The system operates on both AC power and built-in rechargeable Li-ion battery, providing up to 8 hours of use. A built-in storage compartment for the AC cable ensures easy transport and setup.

---

✅ Key Features / Bullet Points

• 🔊 High Power 145W RMS Output – Strong coverage for medium to large areas
• 🔈 2-Way Speaker System (8” Woofer + 1” Tweeter) – Full, clear sound

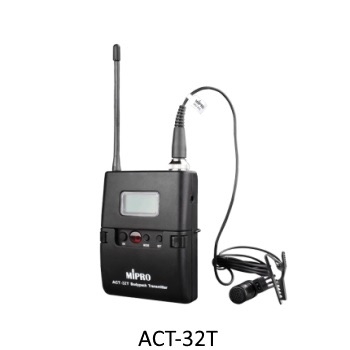

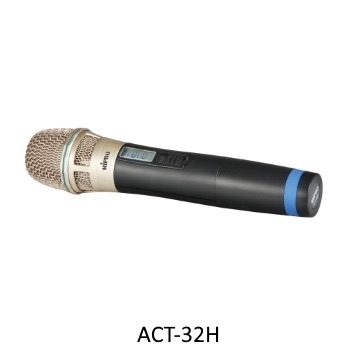

• 🎤 Hybrid Mic Setup (Handheld + Bodypack Clip Mic) – Flexible use for different scenarios
• 📡 Supports Up to 4 Wireless Modules – Expandable for multi-user applications
• 📶 Built-in Active Dual Antennas – Stable long-range wireless performance
• 🔗 Wireless Interlink Function – Connect multiple units wirelessly
• 🎚️ VOP & Tone Control – Automatic mic priority and sound adjustment
• 🎵 Multiple Audio Inputs – Mic, Bluetooth, USB, CD/SD (optional)
• 🔌 Extension Speaker Output – Compatible with MA-505EXP passive speaker
• 🔋 AC + Rechargeable Battery – Up to 8 hours operation
• 🎒 Rugged & Portable Design (8 kg) – Easy to carry or tripod mount
• 📦 Cable Storage Compartment – Clean and convenient setup

---

💡 Solution / Applications

The MIPRO MA-505 Portable PA System is built to meet diverse professional needs:

🎓 Training & Education

Use the clip mic for hands-free teaching and the handheld mic for Q&A or interaction.

🎤 Seminars & Presentations

Perfect for presenters who need flexibility between handheld speaking and hands-free operation.

🏟️ Outdoor & Large Area Coverage

Wireless interlink expands coverage across large spaces without complex wiring.

🚶 Tour Guide & Field Activities

Bodypack mic ensures mobility, while handheld mic is ideal for announcements.

🛍️ Promotions & Events

Engage audiences effectively with flexible microphone options during demos and roadshows.

🚨 Announcements & Crowd Control

VOP and siren functions support clear communication and safety announcements.
