🔥 Product Introduction

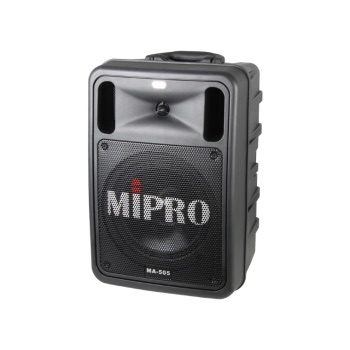

The MIPRO MA-505 Portable PA System with ACT-32H Wireless Handheld Microphone is a high-power, professional portable sound system designed for large classrooms, events, outdoor use, and stage applications.

Featuring a one-piece molded cabinet with a high-efficiency amplifier, it delivers powerful, clear sound with excellent coverage. Built for durability and mobility, the MA-505 is the ideal solution for users who need strong audio performance in a portable format.

---

📄 Product Description

The MIPRO MA-505 is engineered for superior performance and flexibility. Equipped with a 1” tweeter and 8” woofer, it produces rich, full-range sound with deep bass and clear highs—perfect for both speech and music applications.

With a powerful 145W RMS (248W peak) Class D amplifier, the system ensures strong sound projection up to 105 dB SPL, making it suitable for medium to large venues.

The system supports up to 4 wireless receiver modules, allowing multiple microphones to be used simultaneously. It also features built-in active dual antennas, ensuring stable and long-distance wireless reception.

Unique to the MA-505 is its wireless interlinking capability, allowing multiple units to connect wirelessly to expand coverage without complex cabling—ideal for large events or outdoor environments.

Additional features include VOP (Voice-Over-Priority) for automatic mic priority, tone control for sound adjustment, and mixed input amplification for wired mic, wireless mic, and audio sources.

The system is powered by both AC supply and built-in rechargeable Li-ion battery, providing up to 8 hours of operation. Its rugged yet lightweight design allows easy transport and tripod mounting for flexible setup.

---

✅ Key Features / Bullet Points

• 🔊 High Power 145W RMS Output – Strong sound coverage for large spaces
• 🔈 2-Way Speaker System (8” Woofer + 1” Tweeter) – Full-range clear audio

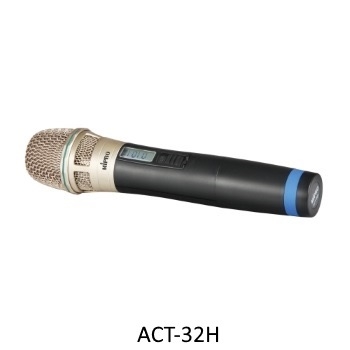

• 🎤 ACT-32H Wireless Handheld Microphone – Reliable and professional wireless performance
• 📡 Up to 4 Wireless Receiver Modules – Expandable for multi-user applications
• 📶 Built-in Dual Antennas – Stable long-distance signal reception
• 🔗 Wireless Interlink Function – Connect multiple units wirelessly for wider coverage
• 🎚️ VOP & Tone Control – Automatic mic priority and sound adjustment
• 🎵 Multi Audio Input Support – Wired mic, wireless mic, Bluetooth, USB, CD/SD (optional)
• 🔌 Extension Speaker Output – Connect MA-505EXP passive speaker
• 🔋 AC + Rechargeable Battery – Up to 8 hours operation
• 🎒 Durable & Portable Design (8kg) – Easy to carry and tripod mount
• 📦 Storage Compartment for Cable – Convenient cable management

---

💡 Solution / Applications

The MIPRO MA-505 Portable PA System is designed to solve demanding audio needs across various environments:

🎓 Education & Large Classrooms

Perfect for lecture halls and large classrooms where higher power and wider coverage are required.

🎤 Events & Stage Performance

Ideal for corporate events, public speaking, and stage use with strong sound output and multiple mic support.

🏟️ Outdoor & Large Area Coverage

Wireless interlink function allows multiple units to cover large outdoor spaces without complex wiring.

🛍️ Roadshow & Promotions

Great for exhibitions and promotions where strong, clear audio is needed to attract attention.

🏫 Institutions & Houses of Worship

Suitable for schools, training centers, and religious venues requiring reliable and scalable PA systems.

🚨 Emergency & Public Address

Built-in siren and voice priority features make it effective for announcements and crowd control.
