Details

---

📌 Product Introduction

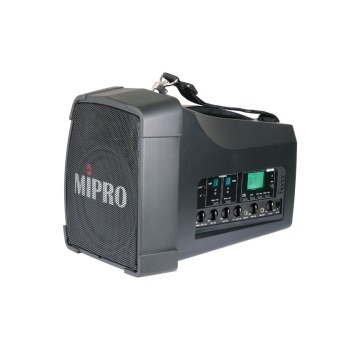

The MIPRO MA-200D Portable Wireless PA System with Dual ACT-32T Bodypack Clip Microphones is a powerful dual-channel hands-free amplification system designed for teaching, fitness, training, events, and outdoor use. Featuring 60W output, two wireless bodypack microphones, and a two-way speaker system, it delivers clear, loud, and full-range sound with complete freedom of movement.

---

📄 Product Description

The MIPRO MA-200D incorporates the design excellence of MA-100 and MA-202, featuring a two-way high-efficiency speaker system (1” tweeter + 5” woofer) for superior sound clarity and rich audio performance across a wide frequency range (80Hz – 18kHz).

With 60W RMS output (102W peak) and up to 103 dB SPL, it ensures powerful coverage for larger spaces and outdoor environments.

Equipped with dual-channel UHF / 5.8GHz wireless receiver modules, it supports two ACT-32T bodypack transmitters with clip (lavalier) microphones, allowing two users to operate hands-free simultaneously—ideal for trainers, instructors, and presenters.

The system includes an audio input mixer with individual volume control, and supports Bluetooth module (optional), USB player/recorder, and multiple connectivity options. Built-in echo effect, alarm siren, and TWS stereo pairing enhance flexibility for both professional and emergency applications.

Powered by a removable Li-ion battery (up to 10 hours) and weighing only 2.4kg, it combines power and portability in one compact system.

---

🚀 Key Features / Bullet Points

• ✅ Dual-channel wireless system – supports 2 users simultaneously

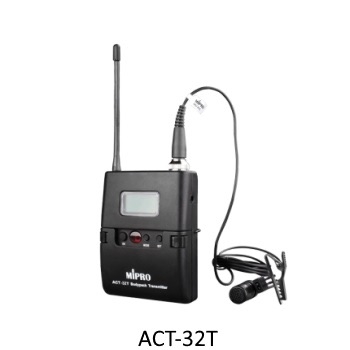

• ✅ Includes 2 × ACT-32T bodypack + clip microphones
• ✅ Hands-free operation – ideal for training & teaching
• ✅ 60W RMS (102W Peak) high power output
• ✅ Max SPL 103 dB – loud & wide coverage
• ✅ Two-way speaker system (1” tweeter + 5” woofer)
• ✅ Wide frequency response 80Hz – 18kHz
• ✅ Built-in echo effect & alarm siren (fade-in)
• ✅ Optional Bluetooth module & USB player/recorder
• ✅ Individual volume control for each audio source
• ✅ Supports TWS stereo pairing (2 units)
• ✅ Up to 10 hours battery operation
• ✅ Removable Li-ion battery pack (MB-14)
• ✅ Lightweight 2.4kg portable design
• ✅ Flexible use: hand carry / tripod stand / table mount

---

💡 Solution / Application (Strong Dual Hands-Free + Power Angle)

• 🏫 Teaching & Training (Dual Hands-Free)
  Two instructors or trainer + assistant setup
• 🧘 Fitness & Coaching
  Perfect for gym, Zumba, yoga classes (2 trainers)
• 🎤 Events & Presentations
  Dual presenters with full mobility
• 🕌 Religious & Community Use
  Hands-free use for announcements and sessions
• 🚶 Outdoor Activities & Tour Guide
  High output suitable for noisy environments
• 🎶 Music Playback & Entertainment
  Better sound quality with two-way speaker system
• 🚨 Emergency & Safety Alerts
  Built-in siren for warning and crowd control

👉 Best solution for dual hands-free wireless amplification with higher power and wider coverage

Datasheet	MA-200D Datasheet [PDF]
Receiver Channels	Dual-channel
Max. SPL	103 dB
Drivers	1" Treble & 5" Woofer
Frequency Range	80 Hz – 18 kHz
Audio Inputs	MIC IN: 1 × 1/4" (6.3 mm) LINE IN: 1 × 1/8" (3.5 mm)
Audio Output	LINE OUT: 1 × 1/8" (3.5 mm)
Amplifier	Class D
Output Power	60 W RMS, 102 W peak
Receiver Module	2 × UHF or ISM 5.8 GHz module
Audio Players	Plug-in Bluetooth module & USB recorder / player
Other Functions	Echo on mics & siren sound effect
Power Supply	DC (19 – 24 V) socket for external AC (100 – 240 V) power supply
Battery	4 × 18650 Li-ion batteries (MB-14)
Battery Indicator	4-segment indicator (25/50/75/100%)
Standby Time	Up to 10 hours
Dimensions	163 × 204 × 276 mm (W × H × D)
Weight	Approx. 2.4 kg (batteries included)
Optional Accessories	SC-200 carry bag MS-30 tripod stand MM Series microphones
Patents and Approvals	Patented. Telecom and safety regulations approved
Note	Refer to the actual product in the event of product description discrepancy
