Details

---

Product Introduction

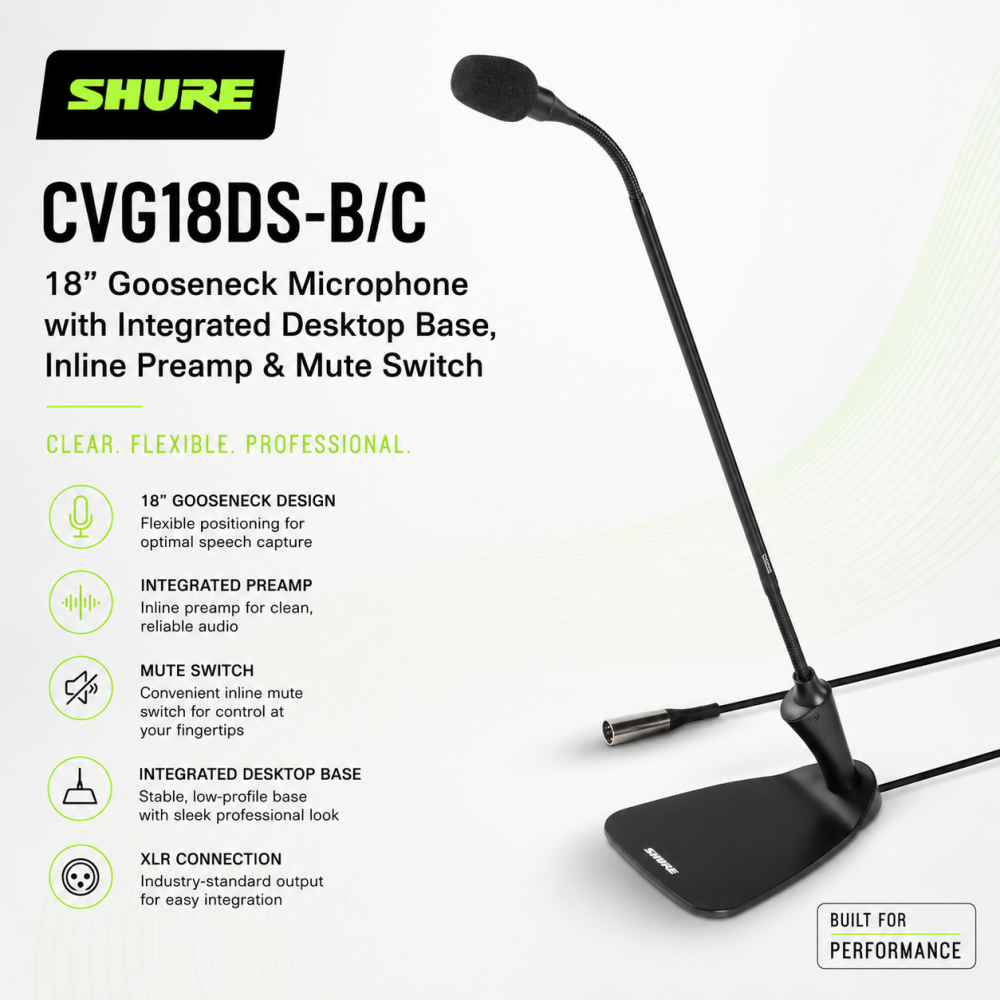

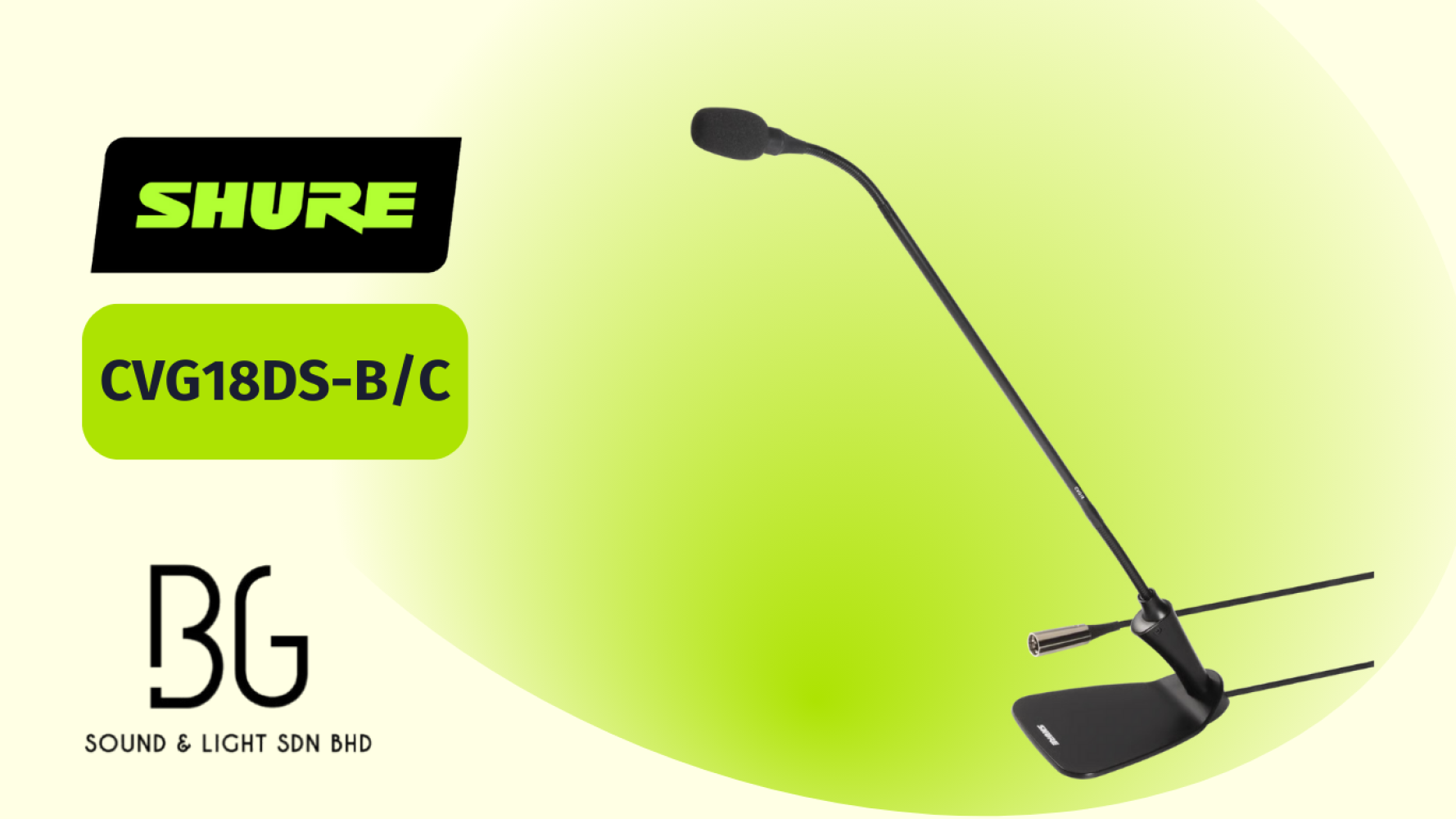

The Shure CVG18DS-B/C is an 18” (45.7 cm) gooseneck cardioid microphone with an integrated desktop base, inline preamplifier, and optional mute function with LED lighting. Designed for installed sound reinforcement and conferencing, it features dual-section articulation for flexible positioning and Commshield® RF Filtering technology for superior interference protection.

---

Key Features

• Cardioid Polar Pattern: Tailored for clear speech pickup and background noise rejection

• Integrated Desktop Base: Ensures stability and plug-and-play installation

• Optional Mute Function with LED: Quick access to control audio mute status

• 18” (45.7 cm) Dual-Section Gooseneck: Precise positioning and maximum articulation

• Commshield® RF Filtering: Protects against RF interference from smartphones and wireless devices

• Plug-and-Play Design: Simplifies setup for podiums, desktops, and conferencing systems

---

Basic Specifications

• Transducer Type: Condenser

• Polar Pattern: Cardioid

• Frequency Response: 60 Hz – 16 kHz

• Sensitivity: -33 dBV/Pa (22 mV/Pa)

• Equivalent Self-Noise: 27 dB(A)

• Maximum SPL: 120 dB

• Impedance: 180 Ω

• Output Connector: 3-Pin XLR

• Phantom Power Requirement: 11–52 VDC

• Cable Length: 3.6 m / 12 ft

• Dimensions (H × W × D): 457.2 × 15.09 × 15.09 mm (18 × 0.594 × 0.594 in)

• Weight: 1216 g / 2.681 lbs

---

Packing Size & Weight

• Product Dimensions (H × W × D): 457.2 × 15.09 × 15.09 mm (18 × 0.594 × 0.594 in)

• Weight: 1216 g (2.681 lbs)

• Packing Dimensions (H × W × D): Approx. 500 × 200 × 100 mm (19.7 × 7.9 × 3.9 in)

• Shipping Weight: Approx. 1.7 kg (3.75 lbs)
