Details

---

Product Introduction

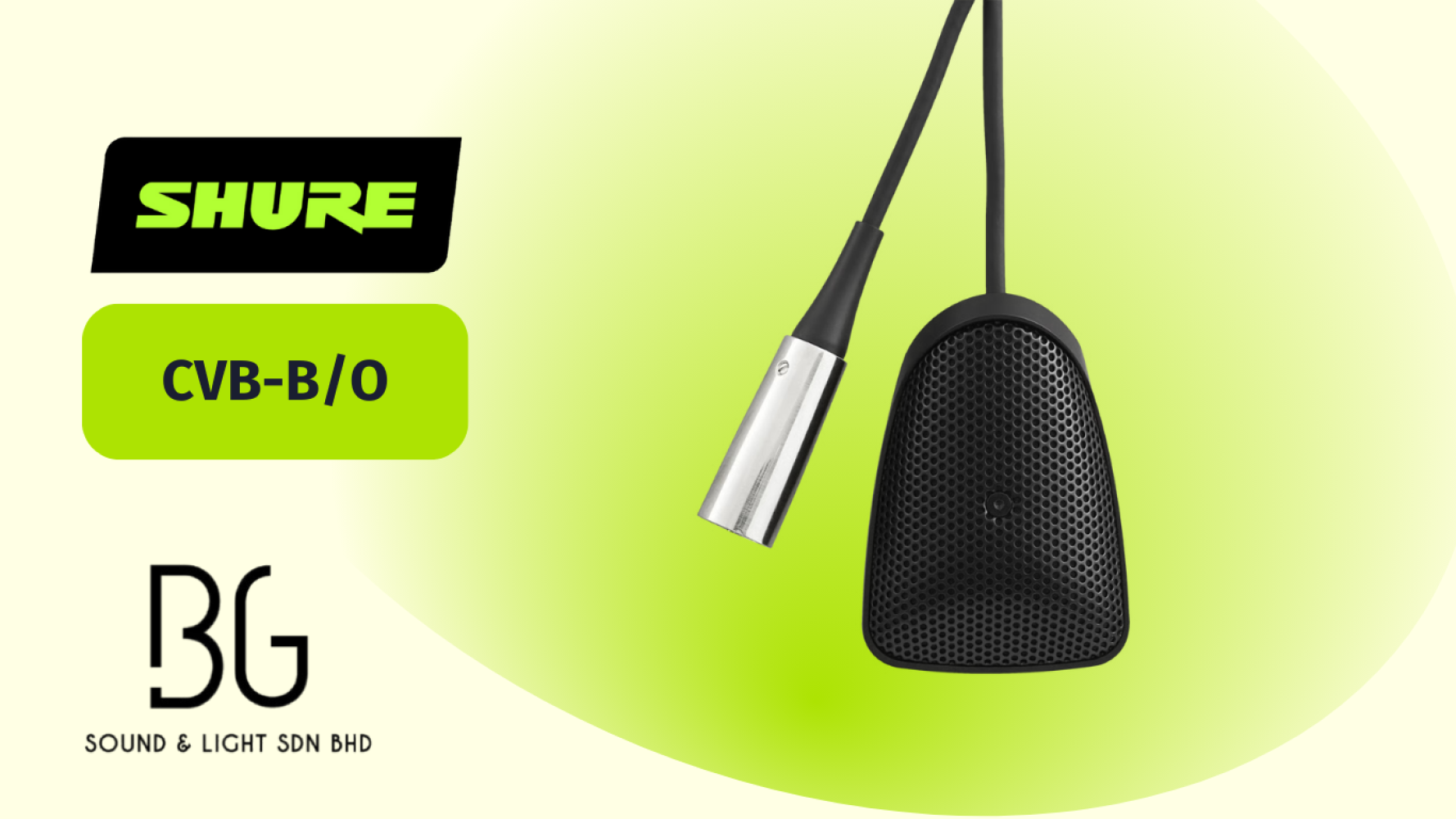

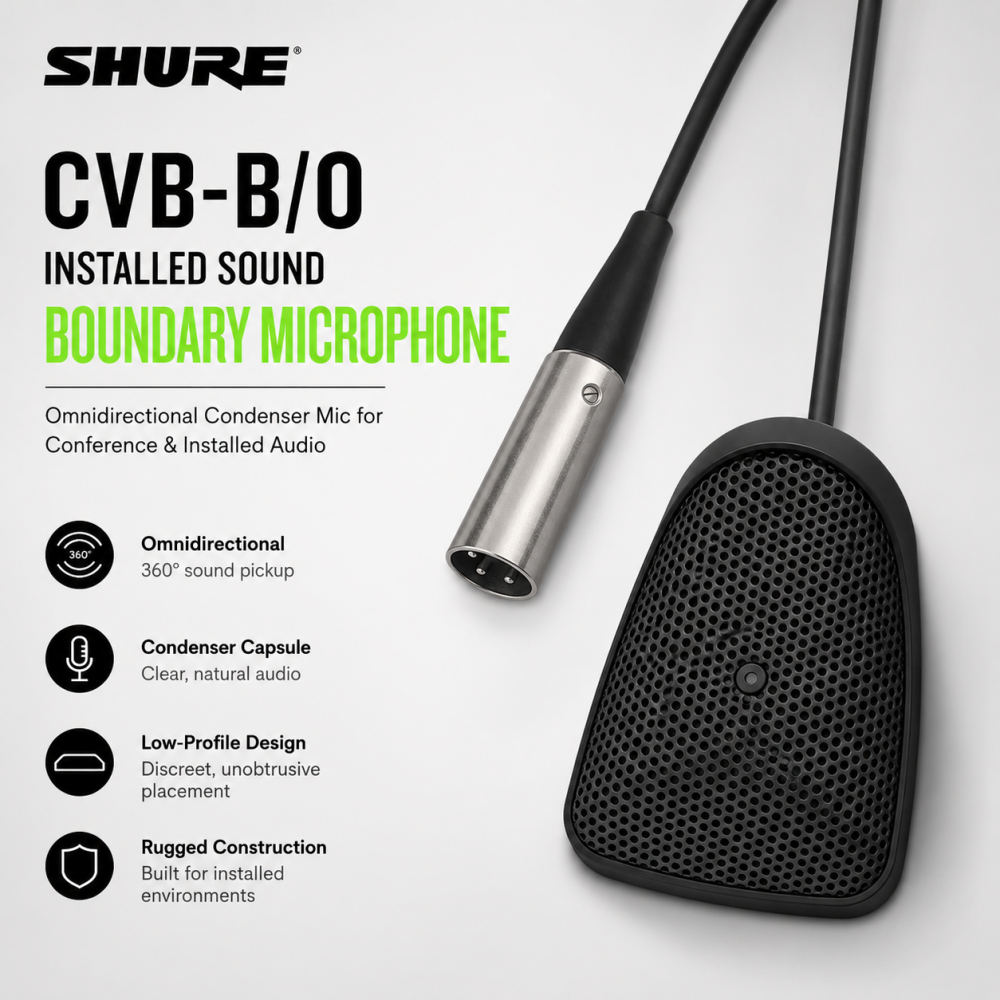

The Shure CVB-B/O Installed Sound Boundary Microphone offers professional-grade audio performance with a low-profile, discreet design ideal for conference rooms, boardrooms, and fixed installations. Equipped with Commshield® RF Filtering Technology, it protects against RF interference from portable wireless devices.

With an omnidirectional pickup pattern, the CVB-B/O captures clear, natural sound from all directions, making it perfect for round-table discussions and multi-speaker applications.

---

Key Features

• Omnidirectional Polar Pattern – Captures sound from all directions for comprehensive coverage

• Commshield® RF Filtering Technology – Guards against interference from smartphones and wireless devices

• Low-Profile Design – Blends seamlessly into any room aesthetic with black or white color options

• Attached 12 ft (3.6 m) XLR Cable – Provides easy and reliable connection

• Professional Shure Quality – Rugged construction ensures long-term durability

• Flexible Applications – Ideal for conference rooms, lecture halls, worship spaces, and corporate installations

---

Specifications

• Weight: 227 g / 0.5 lbs

• Dimensions (H × W × D): 24 × 63 × 88 mm / 0.945 × 2.48 × 3.465 in

• Transducer Type: Condenser

• Polar Pattern: Omnidirectional

• Frequency Response: 70 Hz – 16 kHz

• Sensitivity (Omnidirectional): -28 dBV/Pa (40 mV/Pa)

• Equivalent Self-Noise: 20 dB(A)

• Maximum SPL: 117 dB

• Impedance: 180 Ω

• Output Connector: 3-Pin XLR

• Phantom Power Requirement: 11–52 VDC

• Cable Length: 3.6 m / 12 ft

• Low Cut Filter: No

• Attenuation Pad: No

• Interchangeable Capsule: No
