Product Introduction

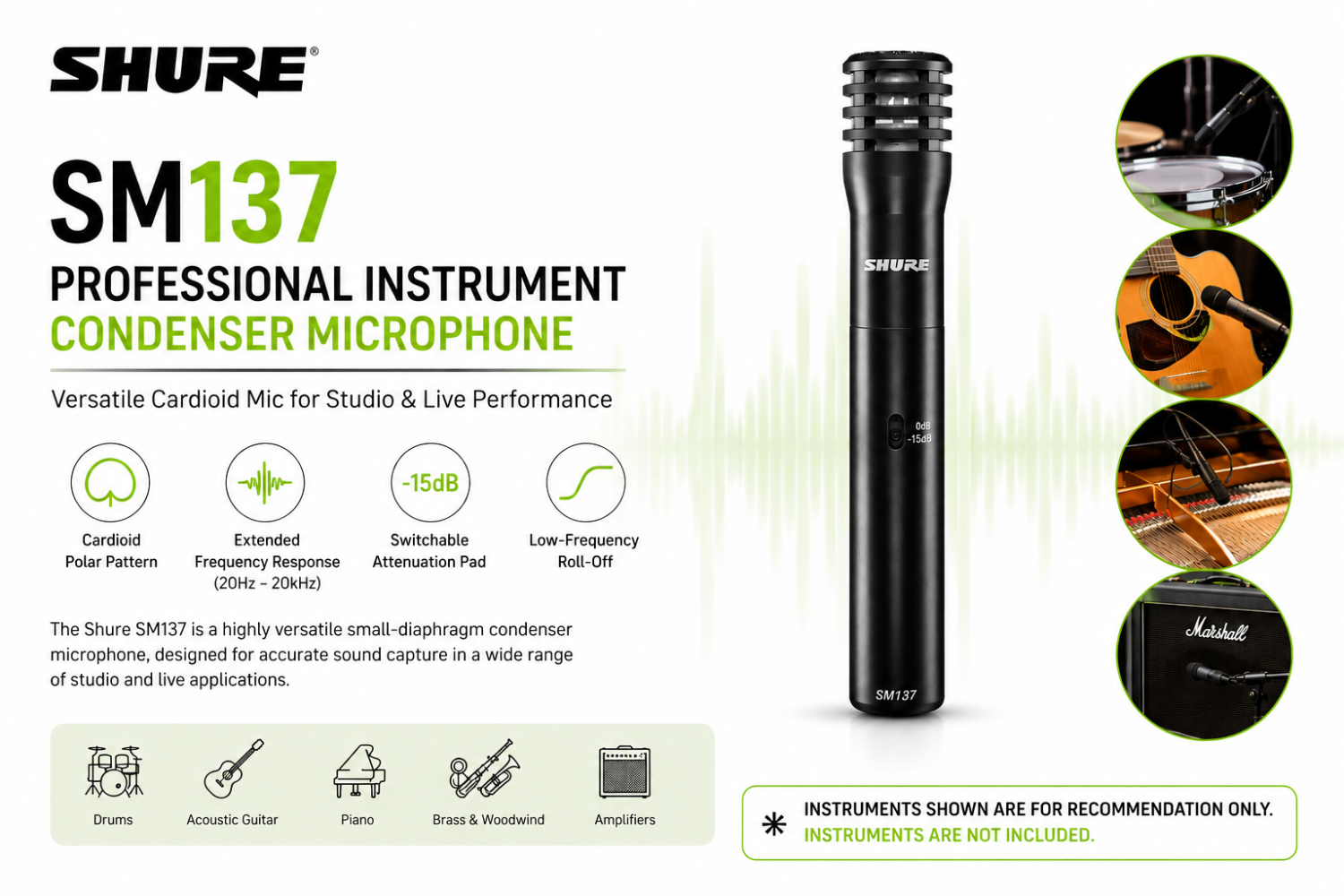

The Shure SM137 is a professional cardioid condenser instrument microphone designed to deliver natural sound reproduction in both studio recording and live performance environments. Featuring an ultra-thin diaphragm, a transformerless Class-A preamplifier, and a built-in 15dB pad, the SM137 ensures smooth highs, tight low-end response, and consistent performance even with high SPL sound sources.

It is ideal for miking acoustic guitar, cymbals, strings, piano, and other instruments, offering low self-noise and excellent clarity for professional musicians and engineers.

Key Features (Bullet Points)

• Ultra-thin diaphragm for smooth high-end and tight, controlled low-end

• Transformerless Class-A preamplifier for transparent sound reproduction

• 15dB attenuation pad for handling high SPL instruments consistently

• Low self-noise circuitry for clean recording in sensitive applications

• Cardioid polar pattern minimizes background noise and feedback

• Versatile use – perfect for acoustic instruments, cymbals, piano, strings, and studio or stage applications

Specifications

• Transducer Type: Condenser

• Polar Pattern: Cardioid

• Frequency Response: 20 Hz – 20 kHz

• Sensitivity: -41 dBV/Pa (8.90 mV/Pa)

• Equivalent Self-Noise: 19 dB(A)

• Maximum SPL:
  • 139 dB SPL (154 dB SPL with Pad, 1000 Ω load)
  • 144 dB SPL (159 dB SPL with Pad, 2500 Ω load)

• Impedance: 150 Ω

• Attenuation Pad: Yes, 15 dB

• Low Cut Filter: No

• Output Connector: 3-Pin XLR

• Phantom Power Requirement: 48V DC

• Dimensions: 162 × 24 × 24 mm (6.378 × 0.945 × 0.945 in)

• Weight: 195 g (0.43 lbs)
