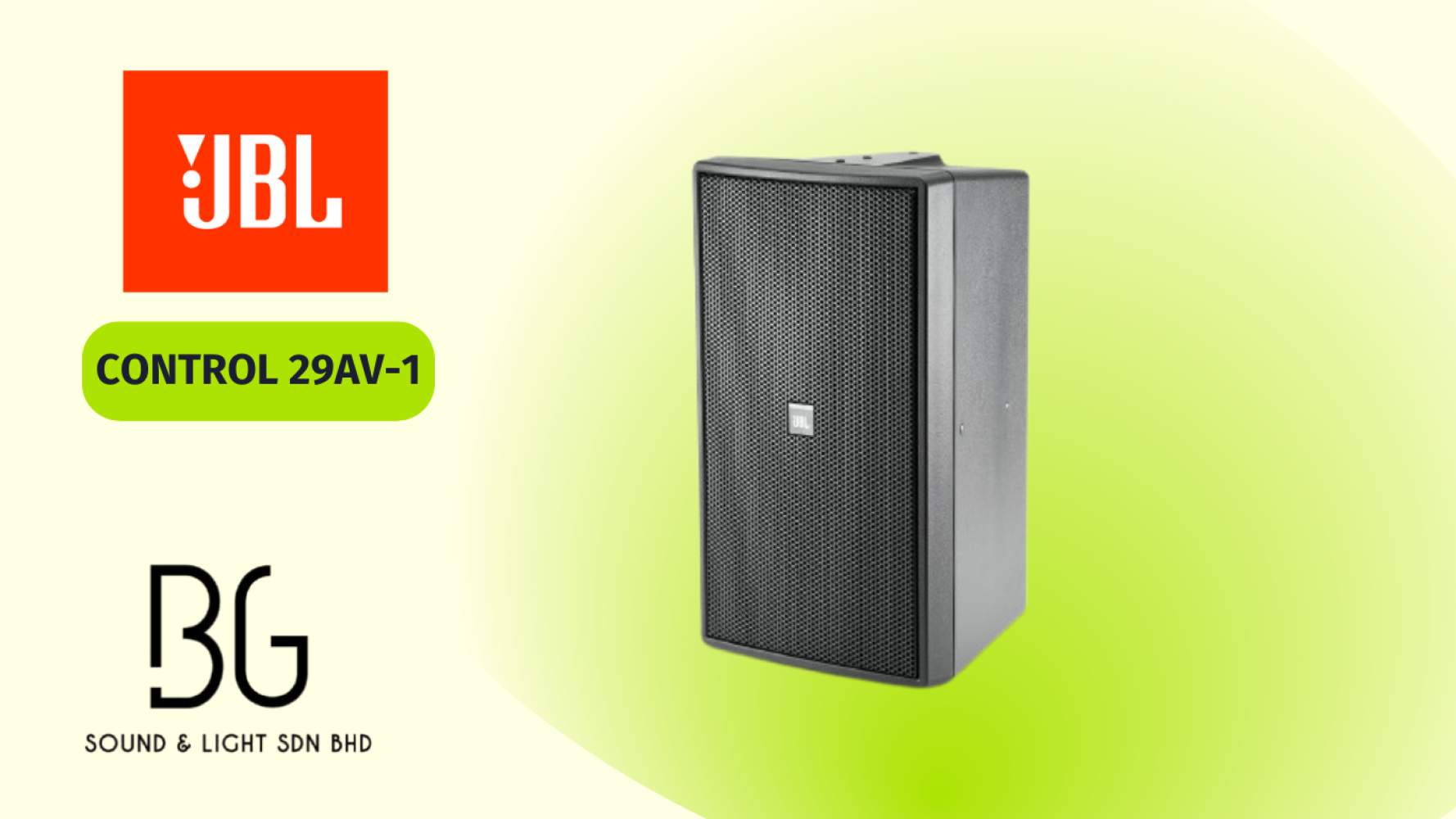

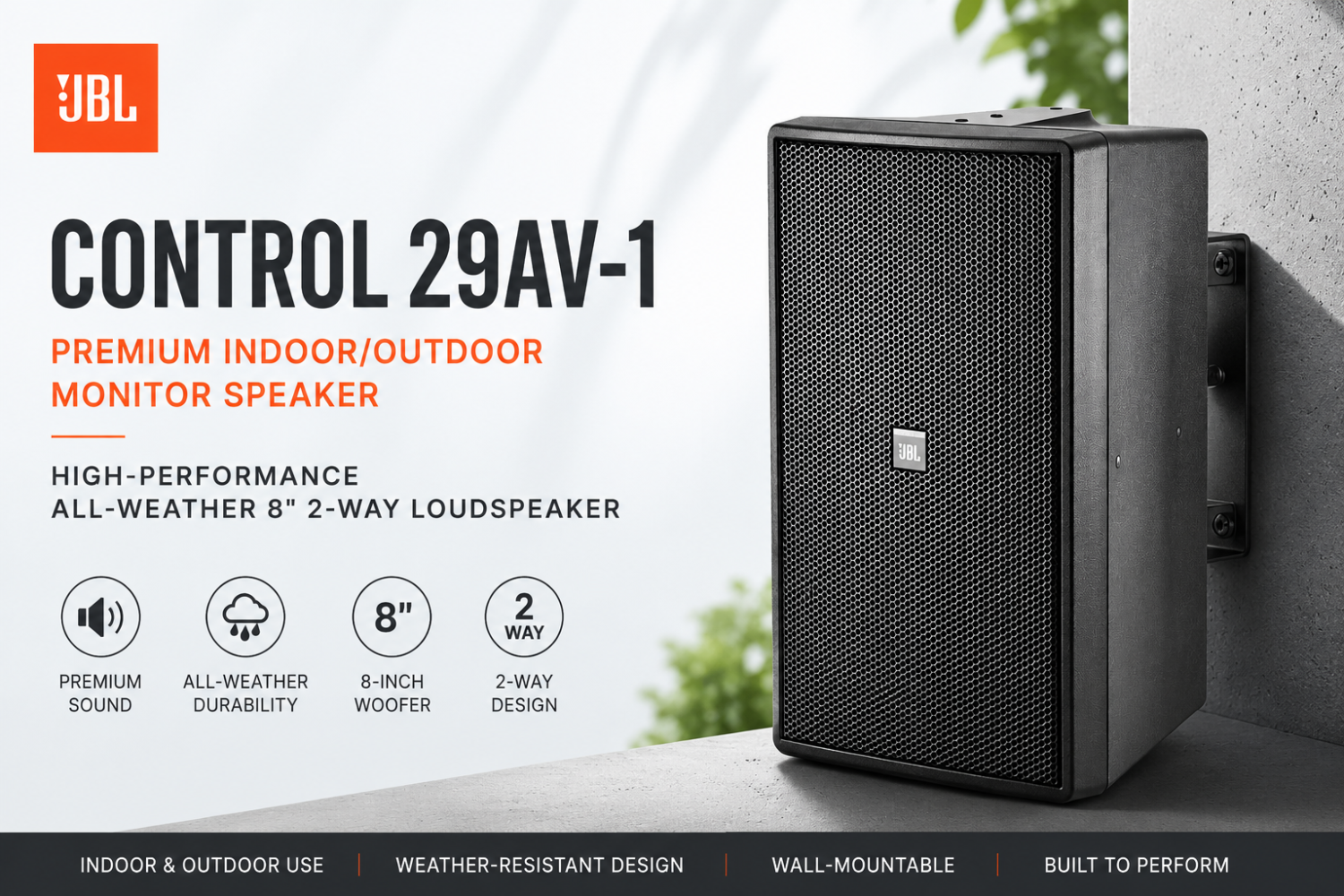

🔊 JBL Control 29AV-1 – Premium Indoor/Outdoor Monitor Speaker

📖 Product Introduction

The JBL Control 29AV-1 is a premium indoor/outdoor monitor loudspeaker designed to deliver high-performance audio with outstanding durability. Equipped with an 8-inch Kevlar cone woofer and a 1-inch titanium diaphragm compression driver, it provides extended bandwidth, smooth frequency response, and high output suitable for both music and speech applications. With SonicGuard™ overload protection, weather-resistant construction, and JBL’s innovative InvisiBall™ mounting system, the Control 29AV-1 is an excellent choice for restaurants, theme parks, stadiums, schools, houses of worship, and other demanding installations.

---

✅ Key Features / Bullet Points

• Premium 8" Indoor/Outdoor Monitor Speaker with extended bandwidth and smooth frequency response

• Kevlar-reinforced woofer & titanium compression driver for powerful, detailed sound

• 110° x 85° rotatable horn ensures optimal coverage in any orientation

• SonicGuard™ protection prevents damage from overloads

• 300W program power handling with high sensitivity (90 dB SPL)

• Weather-resistant design – IP-X4 rated, passes military-grade humidity, UV, and salt spray tests

• Flexible installation options – includes InvisiBall™ mounting hardware and optional U-bracket

• 70V/100V transformer taps & 8-ohm direct mode for versatile system integration

• Durable enclosure & grille – built with high-impact polystyrene and WeatherMax™ multi-layer foam

• Available in black or white finishes for seamless architectural integration

---

⚙️ Basic Specifications

• Frequency Range (-10 dB): 37 Hz – 18 kHz

• Frequency Response (±3 dB): 45 Hz – 18 kHz

• Power Capacity: 150 W continuous pink noise / 300 W program power

• Maximum SPL (1m): 120 dB peak / 114 dB continuous

• Nominal Sensitivity: 90 dB (2.83V/1m)

• Coverage Angle: 110°H x 85°V (rotatable horn)

• Crossover Frequency: 2.5 kHz (3rd order HP / 2nd order LP)

• Impedance: 8 ohms nominal (min 6.3 ohms @ 230 Hz)

• Transformer Taps:

  • 70V: 110 W, 55 W, 28 W, 14 W

  • 100V: 110 W, 55 W, 28 W

  • Thru position: 8Ω direct mode

• Drivers:

  • LF: 200 mm (8 in) Kevlar cone woofer with butyl rubber surround, 50 mm (2 in) voice coil

  • HF: 25 mm (1 in) titanium diaphragm compression driver

• Enclosure: High-impact polystyrene, weather-resistant

• Grille: Thermoset composite-coated steel with WeatherMax™ foam

• Outdoor Rating: IEC 529 IP-X4, exceeds Mil Spec 810 (humidity, salt spray, UV, temperature)

• Input Connectors: Screw-down terminal strip, accepts up to 12 AWG wire

• Dimensions (H x W x D): 520 × 306 × 277 mm (20.5 × 12.0 × 10.9 in)

• Net Weight: 12.2 kg (26.8 lb)

• Shipping Weight: 14.0 kg (30.8 lb)

• Included Accessories: InvisiBall™ mounting system, input panel cover, hex wrench

• Optional Accessories: MTC-29UB U-bracket, MTC-29CM ceiling mount kit

• Available Colors: Black (C29AV-1) or White (C29AV-1-WH)
