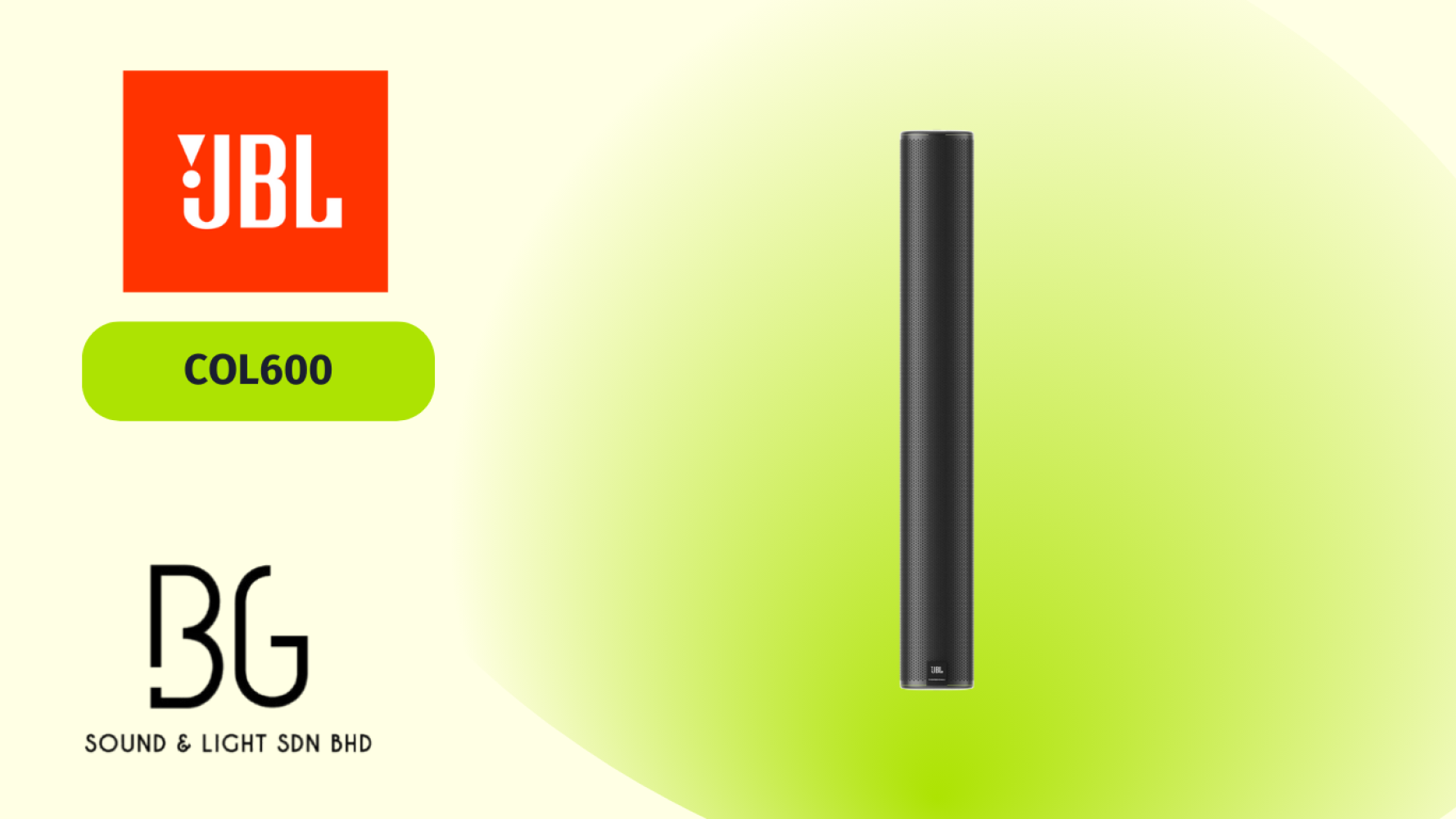

JBL COL600 – Slim Column Loudspeaker

The JBL COL600 is an elegant 24-inch slim column loudspeaker designed to deliver wide horizontal and focused vertical coverage with excellent clarity for speech and music. With its 10° built-in down-tilt, the COL600 provides optimized coverage of listening areas without requiring cabinet tilt, making it ideal for installation flat to the wall. Its compact, award-winning industrial design blends seamlessly into modern architecture, making it perfect for conference rooms, lecture halls, retail stores, transit spaces, and entertainment venues.

🔑 Key Features

• Slim 24-inch (600 mm) column design, only 3.7” (93 mm) deep

• Two 5" × 2.25" racetrack woofers + 1" tweeter

• Wide 160° horizontal x 110° vertical coverage

• Built-in 10° down-tilt for optimal coverage

• 80W continuous (320W peak) power handling at 8Ω

• Built-in 20W 70V/100V transformer with multi-tap options

• Frequency range 70 Hz – 20 kHz for clear speech & music

• Compact, ADA-compliant depth for flush wall installations

• IP54 rating – dust & splash resistant, UV-protected

• Supplied with swivel / tilt wall bracket & L-brackets

⚙️ Technical Specifications

• Frequency Range (-10 dB): 70 Hz – 20 kHz

• Frequency Response (±3 dB): 105 Hz – 20 kHz

• Power Rating (8Ω): 80W continuous pink noise, 160W program, 320W peak (2 hrs), 60W (240W peak, 100 hrs)

• Sensitivity (1W/1m): 86 dB

• Coverage Pattern:

  • Horizontal: 160° (1–4 kHz average)

  • Vertical: 110° with 10° down-tilt (+45°/–65°)

• Directivity (Q): 7.8

• Directivity Index (DI): 8.9 dB

• Max SPL (1m): 105 dB continuous, 111 dB peak

• Nominal Impedance: 8Ω (direct mode)

• Minimum Impedance: 7.0Ω @ 275 Hz

• Transformer Taps: 20W, 10W, 5W (100V/70V), plus 2.5W at 70V

• Drivers: 2 × 125 × 55 mm racetrack LF, 1 × 25 mm (1") HF tweeter

• Crossover: 1.8 kHz, 3rd order HP, 2nd order LP

• Enclosure: PC + ABS, UL94-V0 rated

• Grille: SPCC steel, polyester powder coat, water-resistant backing

• Environmental: IP54, UV resistant, IEC60529, MIL Spec 810, ASTM G85

• Dimensions (H × W × D): 598 × 102 × 93 mm (23.6 × 4.1 × 3.7 in)

• Net Weight: 3.5 kg (7.8 lbs)

• Shipping Weight: 4.5 kg (10 lbs)

• Included Accessories: Swivel/tilt wall bracket, 2 × L-brackets

• Colors: Black (JBL-COL600-BK, RAL9004) / White (JBL-COL600-WH, RAL9016)
