Details

---

🔊 Product Introduction

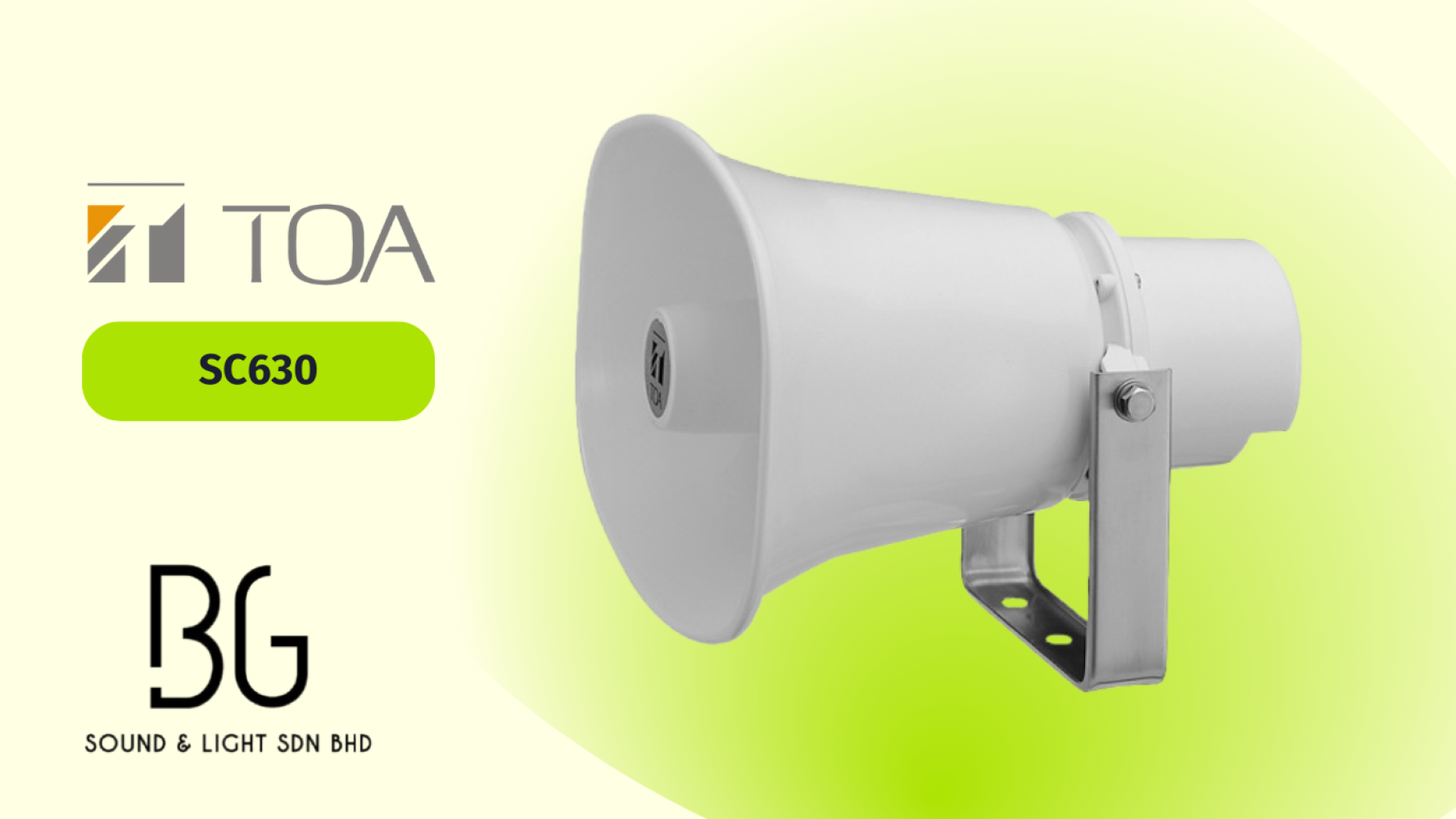

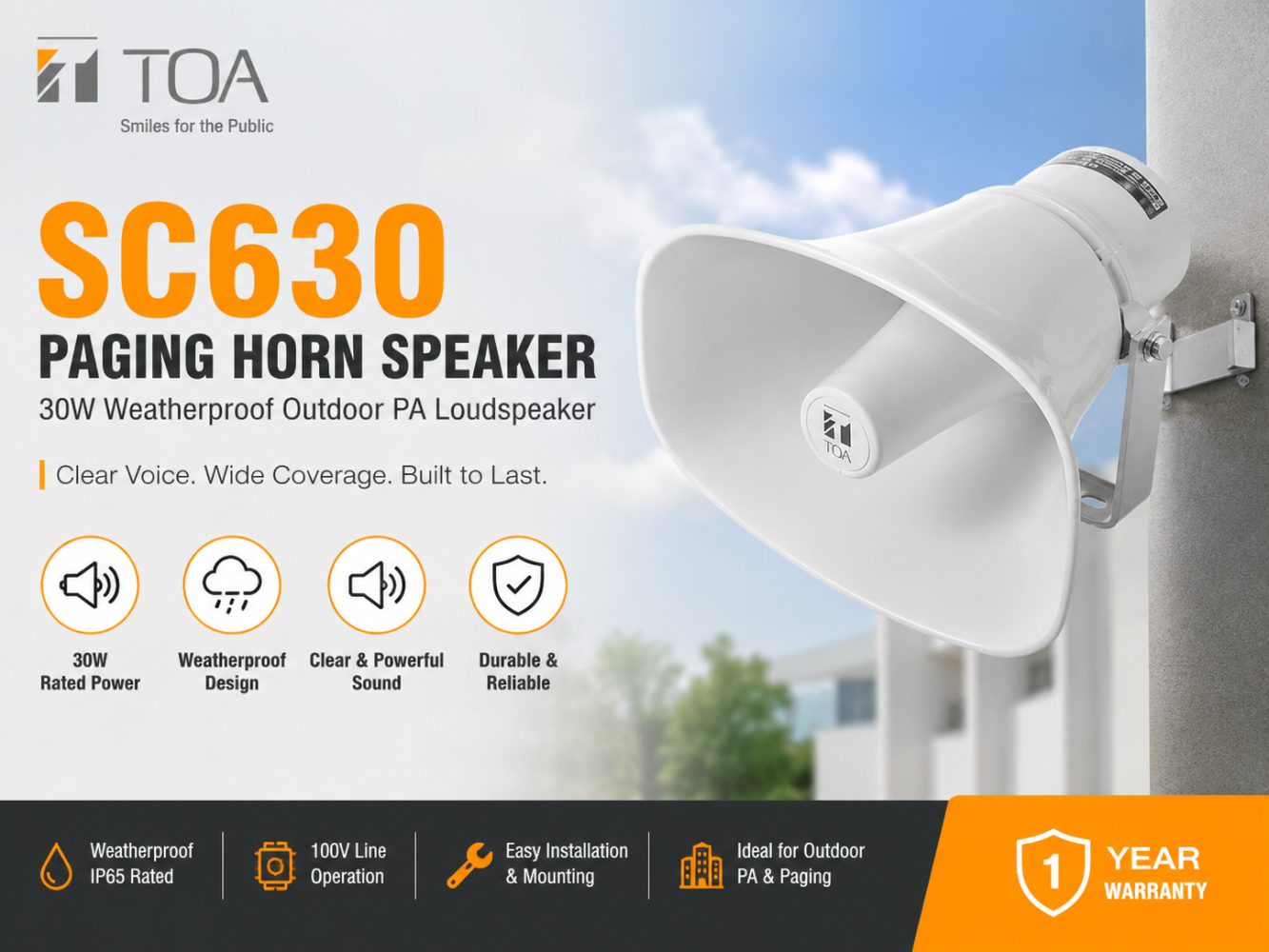

The TOA SC-630 Paging Horn Speaker is a 30W weatherproof outdoor PA loudspeaker designed for clear voice announcements and public address systems. Built with a durable aluminum horn flare and stainless steel hardware, it provides high sound pressure levels and excellent intelligibility even in noisy environments. With IP65 protection, the SC-630 is ideal for schools, factories, warehouses, transportation hubs, and outdoor facilities.

✅ Key Features

• 30W high-output paging horn speaker

• Weatherproof design (IP65 rated) for outdoor use

• Clear and intelligible sound with high SPL of 113 dB

• Durable aluminum and ABS resin construction

• Stainless steel bracket and screws for long-lasting reliability

• Wide frequency response: 250 Hz – 10 kHz

• Ideal for PA systems in schools, factories, and public areas

⚙️ Basic Specifications

• Rated Input: 30 W (Mobile Mount use: 15 W)

• Rated Impedance: 8 Ω

• Sound Pressure Level: 113 dB (1 W, 1 m at 500 Hz – 2.5 kHz peak)

• Frequency Response: 250 Hz – 10 kHz

• Dust/Water Protection: IP65

• Polarity: Hot: Black, Com: White

• Operating Temperature: -20 ℃ to +55 ℃ (no dew condensation)

• Finish: Aluminum horn flare (off-white, powder coated), ABS resin reflector and cover

• Bracket & Screws: Stainless steel

• Speaker Cable: PVC insulated, Ø6 mm, 600 mm length

• Dimensions: 285 (W) × 227 (H) × 277 (D) mm

• Weight: 1.7 kg

• Option: Swivel bracket YS-151S
