Details

---

🔊 Product Introduction

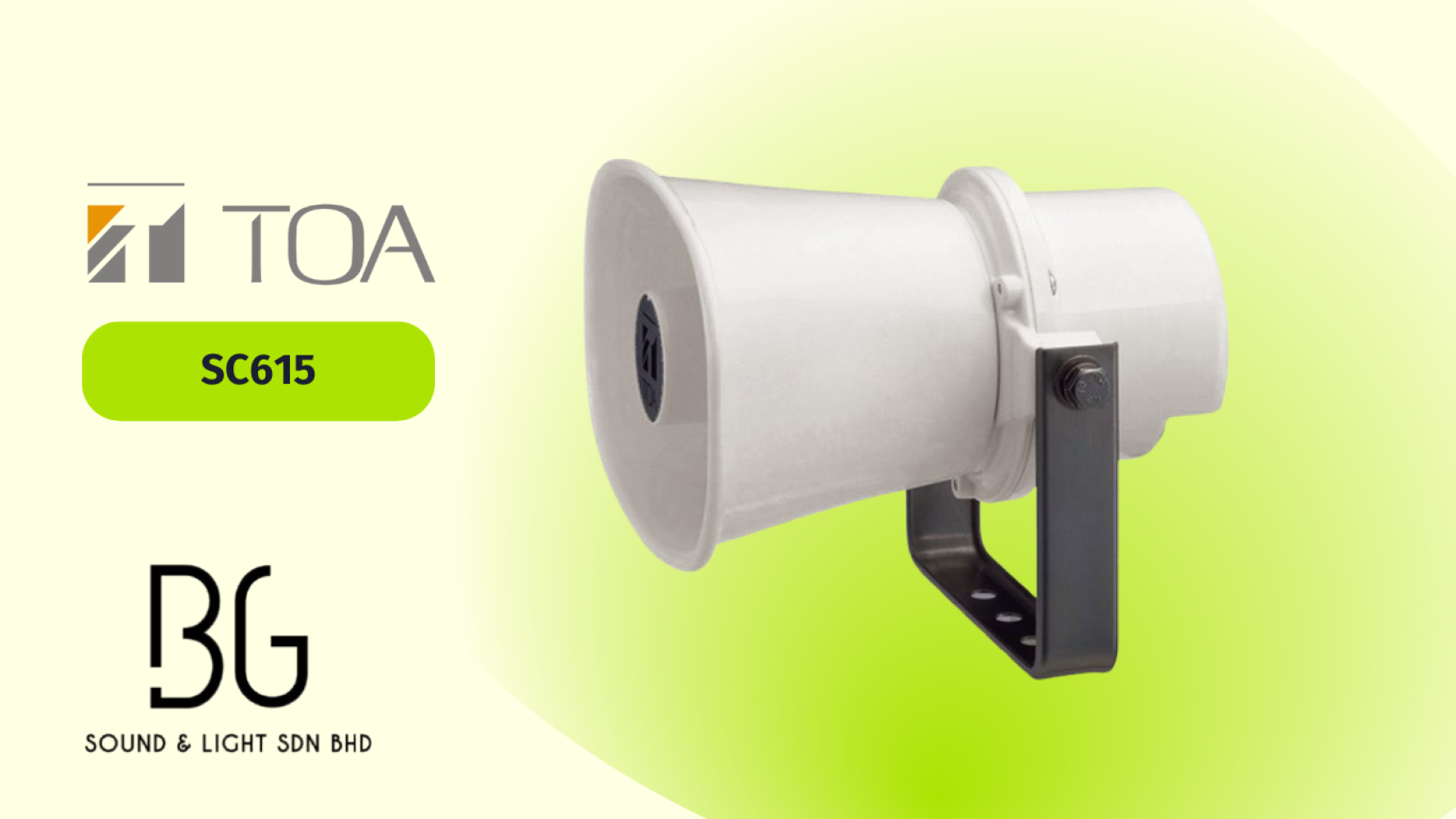

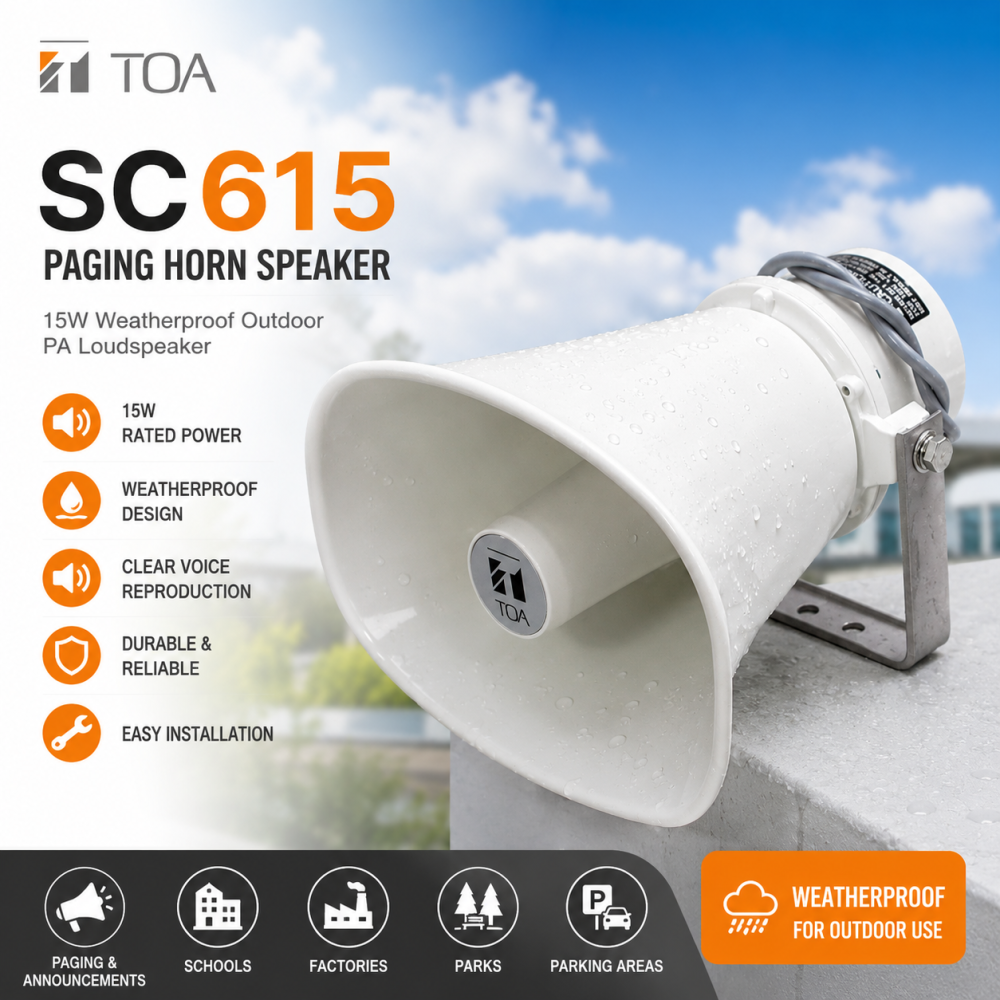

The TOA SC-615 Paging Horn Speaker is a compact and highly intelligible loudspeaker designed for public address and outdoor announcements. With a rated input of 15W and weatherproof IP65 protection, it is ideal for schools, factories, stations, warehouses, and outdoor facilities. Its aluminum horn, stainless steel bracket, and powder-coated finish ensure long-lasting durability in any environment.

✅ Key Features

• 15W rated input power (10W for mobile mount use)

• Compact, lightweight, and durable design

• IP65 dustproof and waterproof protection

• High sound pressure level (112 dB at 1W/1m) for clear announcements

• Wide frequency response (280 Hz – 12.5 kHz)

• Weatherproof housing with aluminum horn and ABS rear cover

• Stainless steel bracket and screws for durability

• Easy installation with supplied bracket (optional swivel bracket available)

⚙️ Basic Specifications

• Rated Input: 15 W (Mobile Mount: 10 W)

• Rated Impedance: 8 Ω

• Sound Pressure Level: 112 dB (1 W, 1 m, 500 Hz – 2.5 kHz peak)

• Frequency Response: 280 Hz – 12.5 kHz

• Dust/Water Protection: IP65

• Polarity: Hot: Black, Com: White

• Operating Temperature: -20 ℃ to +55 ℃ (no dew condensation)

• Finish:

  • Horn flare: Aluminum, off-white, powder coating

  • Reflector horn/rear cover: ABS resin, off-white

  • Bracket, screws, bolts: Stainless steel

  • Speaker cable: PVC insulated cabtyre, Ø6 mm × 600 mm length

• Dimensions: 222 (W) × 179 (H) × 234 (D) mm

• Weight: 1.1 kg

• Option: Swivel bracket YS-151S
