🔊 Product Introduction

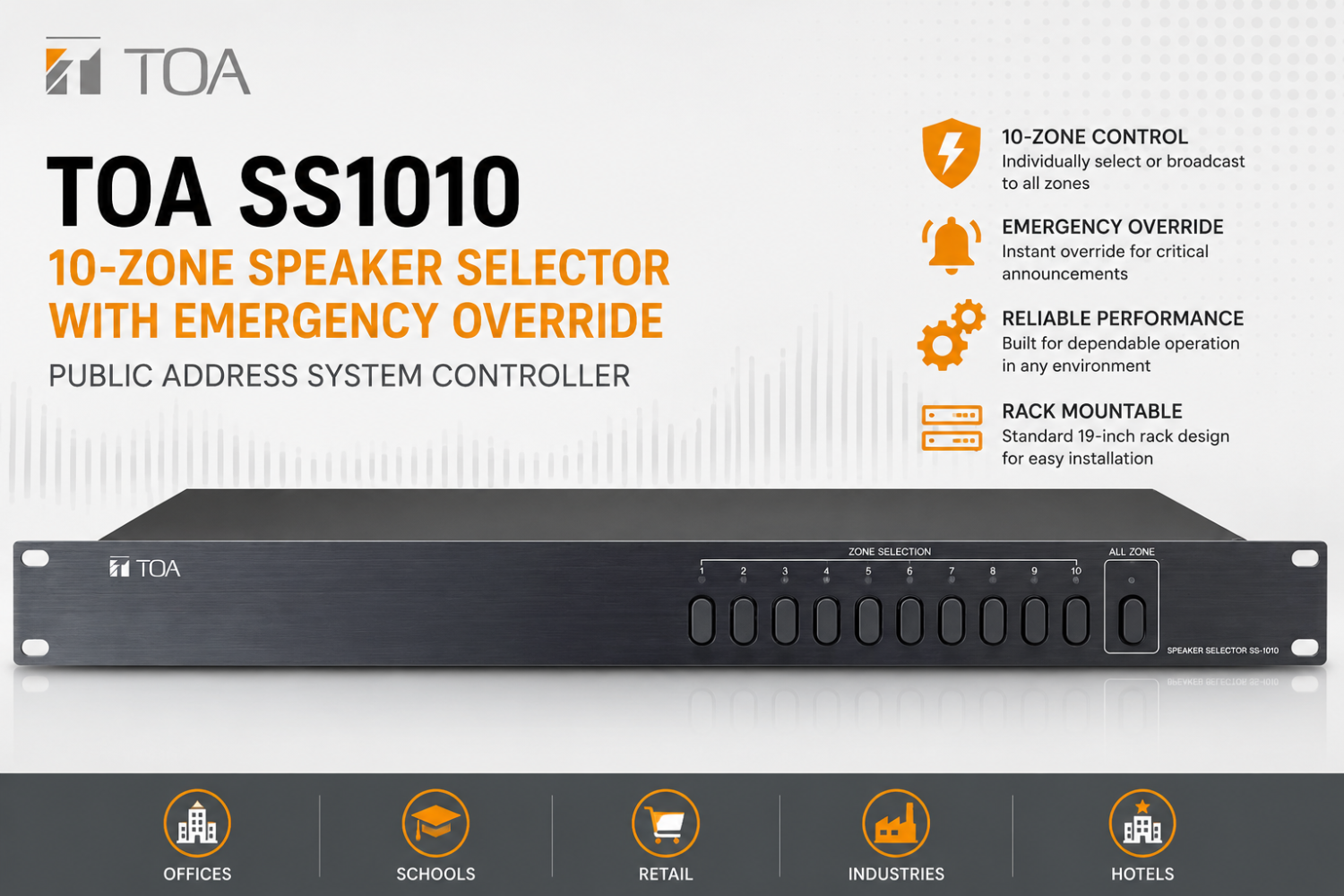

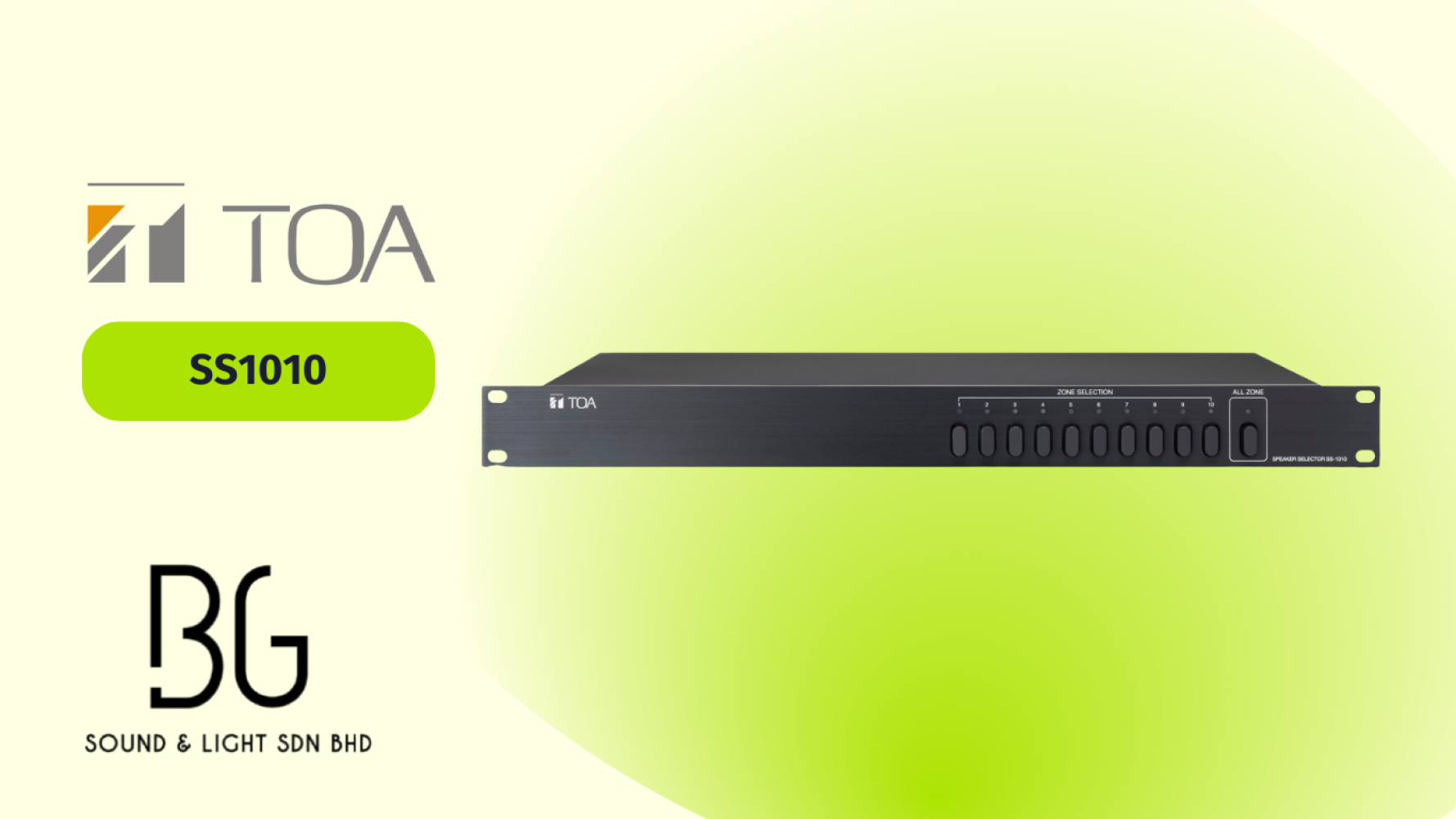

The TOA SS-1010 Speaker Selector is a highly efficient 10-zone speaker control unit designed for professional public address (PA) systems. With 10 selectable zones and 1 emergency override input, it allows easy and reliable control of distributed audio in schools, offices, malls, and other facilities. Built with durable components and front/rear control flexibility, it ensures smooth operation for daily use and emergency situations.

✅ Key Features / Bullet Points

• 10 selectable output zones with individual zone control

• Emergency override function for priority announcements

• Supports up to 480W per zone output

• Front panel zone selectors with LED indicators

• All-Zone selection switch for simultaneous broadcast

• Sturdy aluminum front panel with black finish

• Compact 1U rack-mountable design for easy installation

• Ideal for schools, offices, malls, and PA system integration

⚙️ Basic Specifications

• Voltage Source: 24V DC

• Current Consumption: 0.4 A DC

• Inputs: 10 Zone Inputs, 1 Emergency Override

• Outputs: 10 Zone Outputs (Max. 480W each)

• Control Switch:

  • Front: 10 Zone Selectors + All Zone Selector

  • Rear: Zone Control Inputs (1–10), All Zone Control In

• Indicators: 10 Zone Selector LEDs, 1 All-Zone LED

• Operating Temperature: 0 °C – 40 °C

• Finish: Front Panel – Aluminum Hairline Black; Case – Steel Plate Black

• Dimensions: 420 (W) × 44 (H) × 320 (D) mm

• Weight: 3.2 kg

• Accessories: 6P Connectors ×12, 2P Connector ×1
