🔊 Product Introduction:

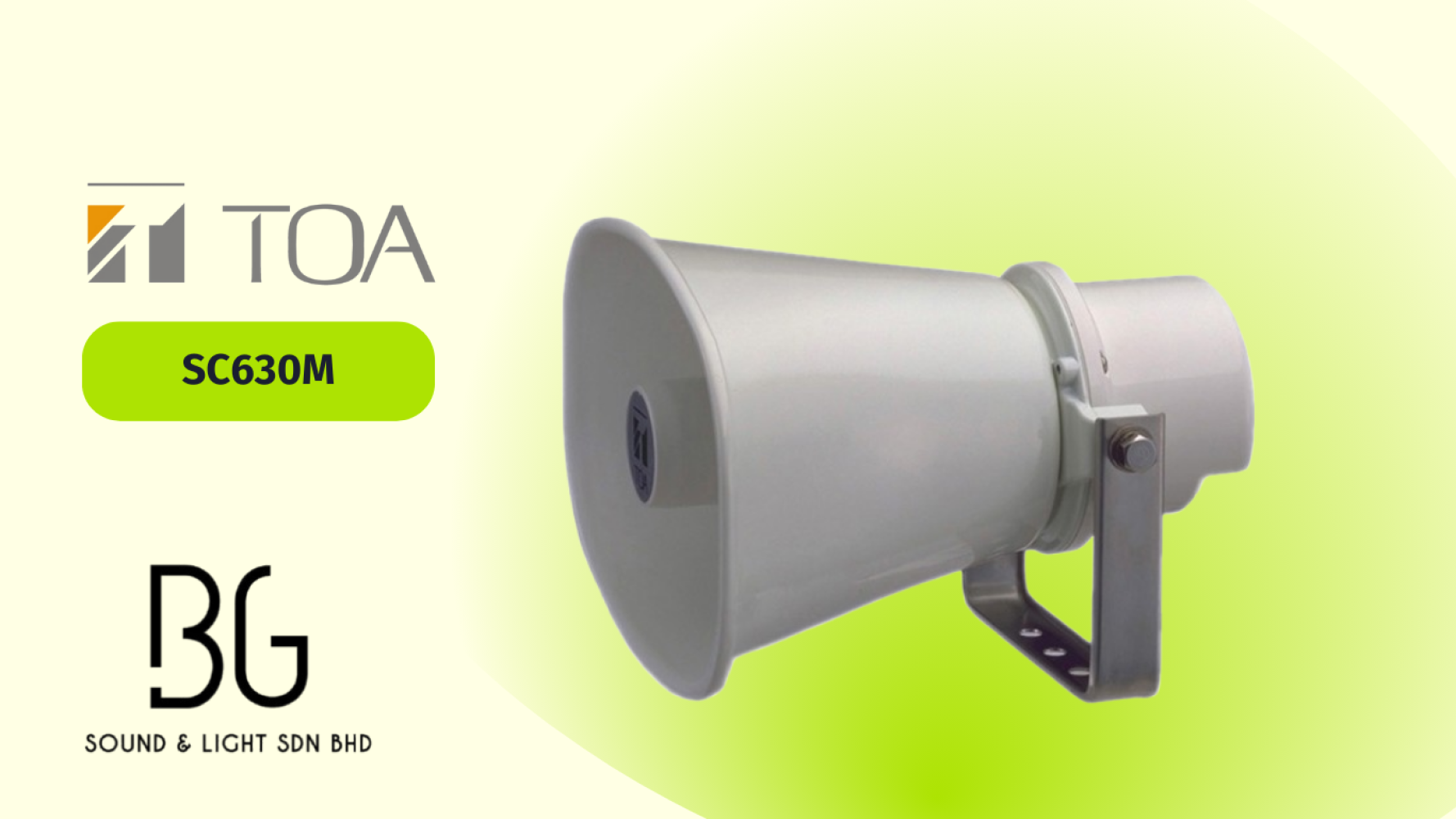

The TOA SC-630M is a 30W weatherproof paging horn speaker designed for public address and outdoor announcements. Built with a durable aluminum horn flare and ABS resin rear cover, it offers high sound clarity and long-lasting reliability. With IP65 protection, stainless steel bracket and screws, the SC-630M ensures excellent performance even under harsh outdoor conditions.

Ideal for schools, factories, transportation hubs, mosques, warehouses, and other outdoor PA systems.

✅ Key Features / Bullet Points:

• 30W Weatherproof Paging Horn Speaker

• High sound pressure level: 113 dB (1W, 1m)

• Wide frequency response: 250 Hz – 10 kHz

• IP65 Dust and Water Protection – Built for outdoor use

• Durable aluminum horn flare with powder coating

• Stainless steel bracket and screws for corrosion resistance

• Flexible installation with optional swivel bracket (YS-151S)

• Suitable for public address, announcements, and emergency alerts

⚙️ Technical Specifications:

• Rated Input: 30 W

• Line Voltage: 100 V / 70 V line

• Rated Impedance:

  • 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)

  • 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)

• Sound Pressure Level: 113 dB (1 W, 1 m, peak 500 Hz – 2.5 kHz)

• Frequency Response: 250 Hz – 10 kHz

• Dust/Water Protection: IP65

• Operating Temperature: -20 °C to +55 °C

• Finish:

  • Horn Flare: Aluminum, off-white, powder coating

  • Reflector Horn & Rear Cover: ABS resin, off-white

  • Bracket & Screws: Stainless steel

• Speaker Cable: PVC insulated cabtyre cable (6 mm dia, 600 mm length)

• Dimensions: 285 (W) × 227 (H) × 277 (D) mm

• Weight: 2 kg

• Option: Swivel Bracket YS-151S
