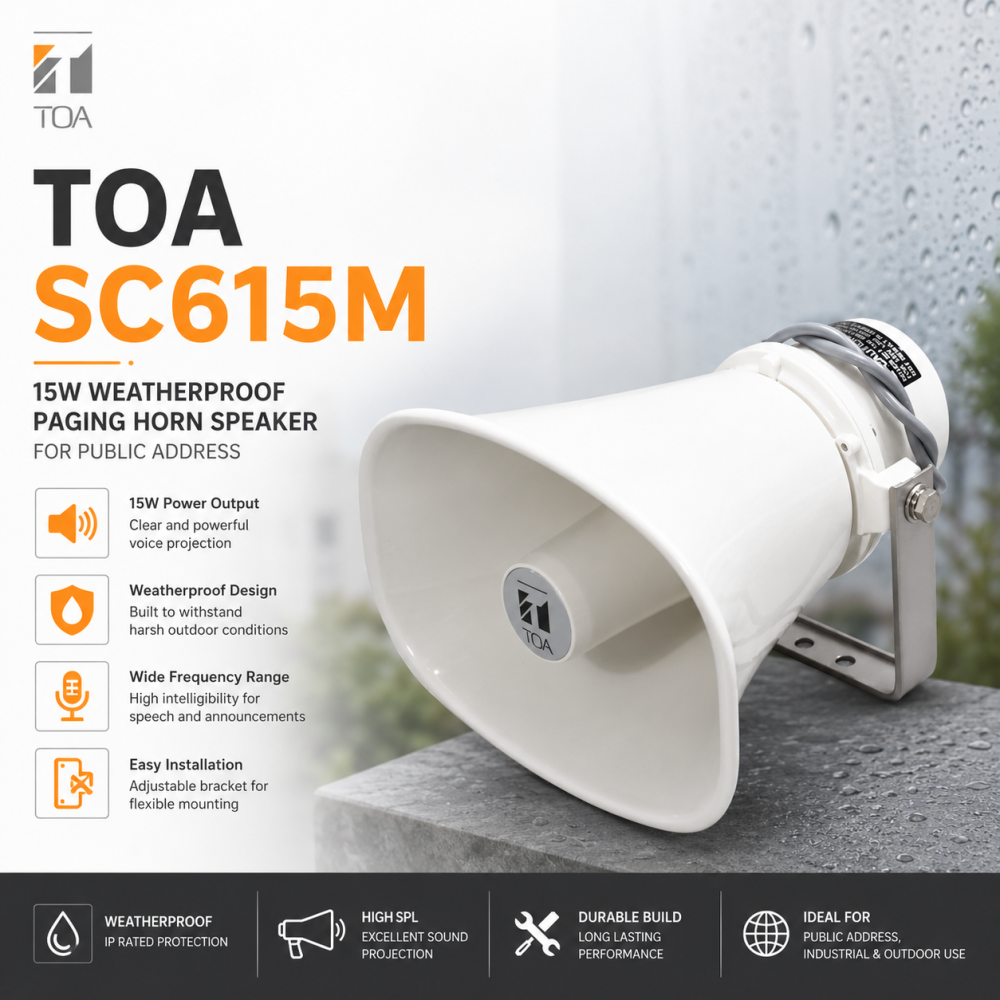

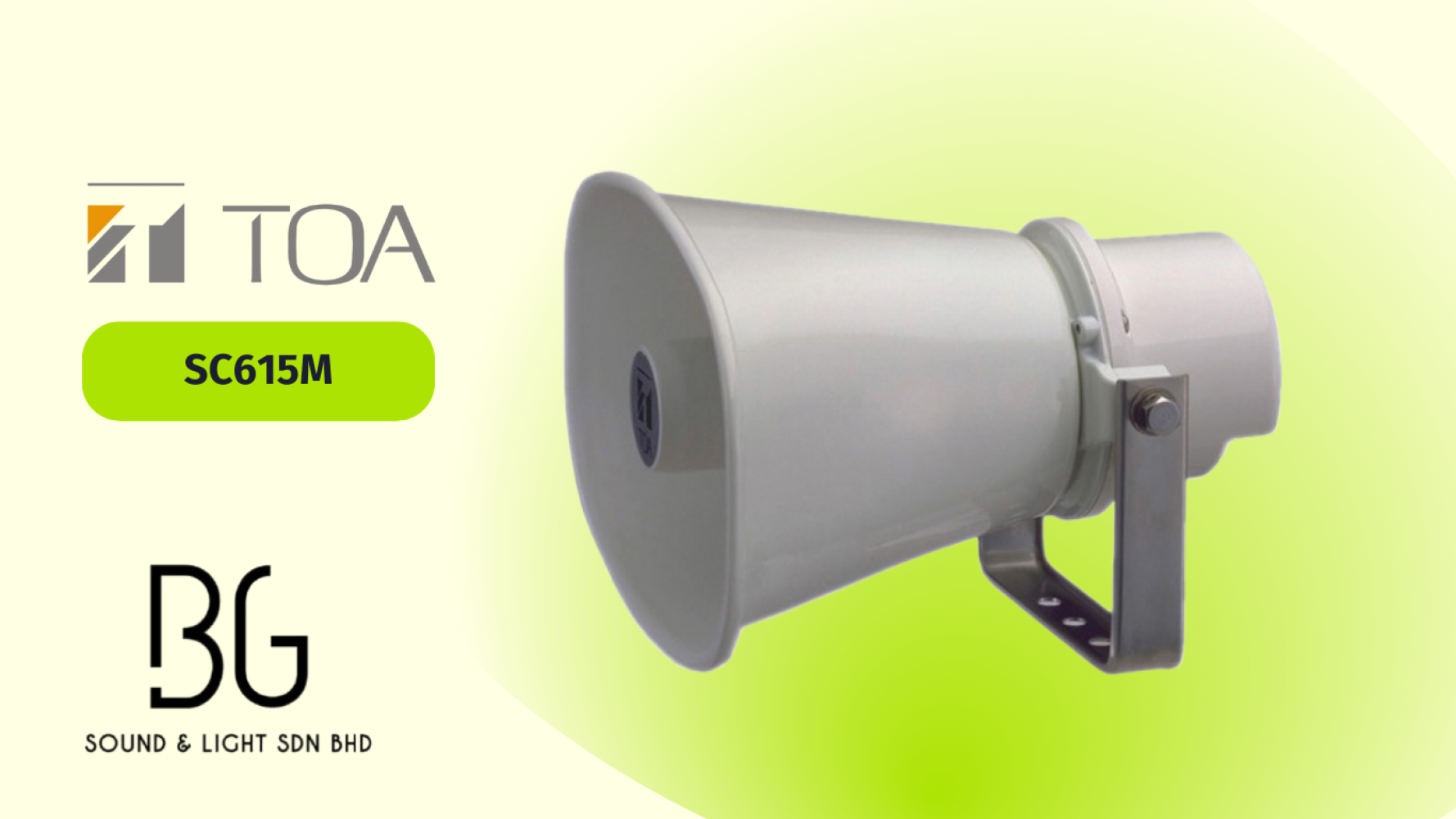

🔊 TOA SC-615M – 15W Weatherproof Paging Horn Speaker

The TOA SC-615M is a compact, highly intelligible paging horn speaker designed for public address and announcement applications. With its IP65-rated weatherproof housing, stainless steel bracket, and powder-coated aluminum horn flare, it ensures durability and reliable performance in both indoor and outdoor environments. Delivering 112 dB SPL with a 15W rated input, it is ideal for schools, factories, stations, parking areas, and outdoor facilities.

✅ Key Features

• 15W high-performance paging horn speaker

• Clear and highly intelligible voice reproduction

• IP65-rated dustproof and waterproof design

• Durable aluminum horn flare with powder coating

• Stainless steel bracket and screws for outdoor reliability

• Flexible impedance and power tapping for 100V/70V line systems

• Compact and lightweight design for easy installation

⚙️ Basic Specifications

• Rated Input: 15 W

• Line Voltage: 100 V / 70 V line

• Impedance:

  • 100 V: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)

  • 70 V: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)

• Sound Pressure Level: 112 dB (1 W, 1 m)

• Frequency Response: 280 Hz – 12.5 kHz

• Protection: IP65 Dust/Waterproof

• Finish: Aluminum horn flare (off-white), ABS resin rear cover

• Dimensions: 222 × 179 × 234 mm

• Weight: 1.3 kg

📦 Packing Size & Weight

• Unit Dimensions: 222 (W) × 179 (H) × 234 (D) mm

• Unit Weight: 1.3 kg

• Carton Dimensions (Approx.): 250 (W) × 210 (H) × 260 (D) mm

• Gross Weight (Approx.): 1.8 kg
