📖 Product Introduction

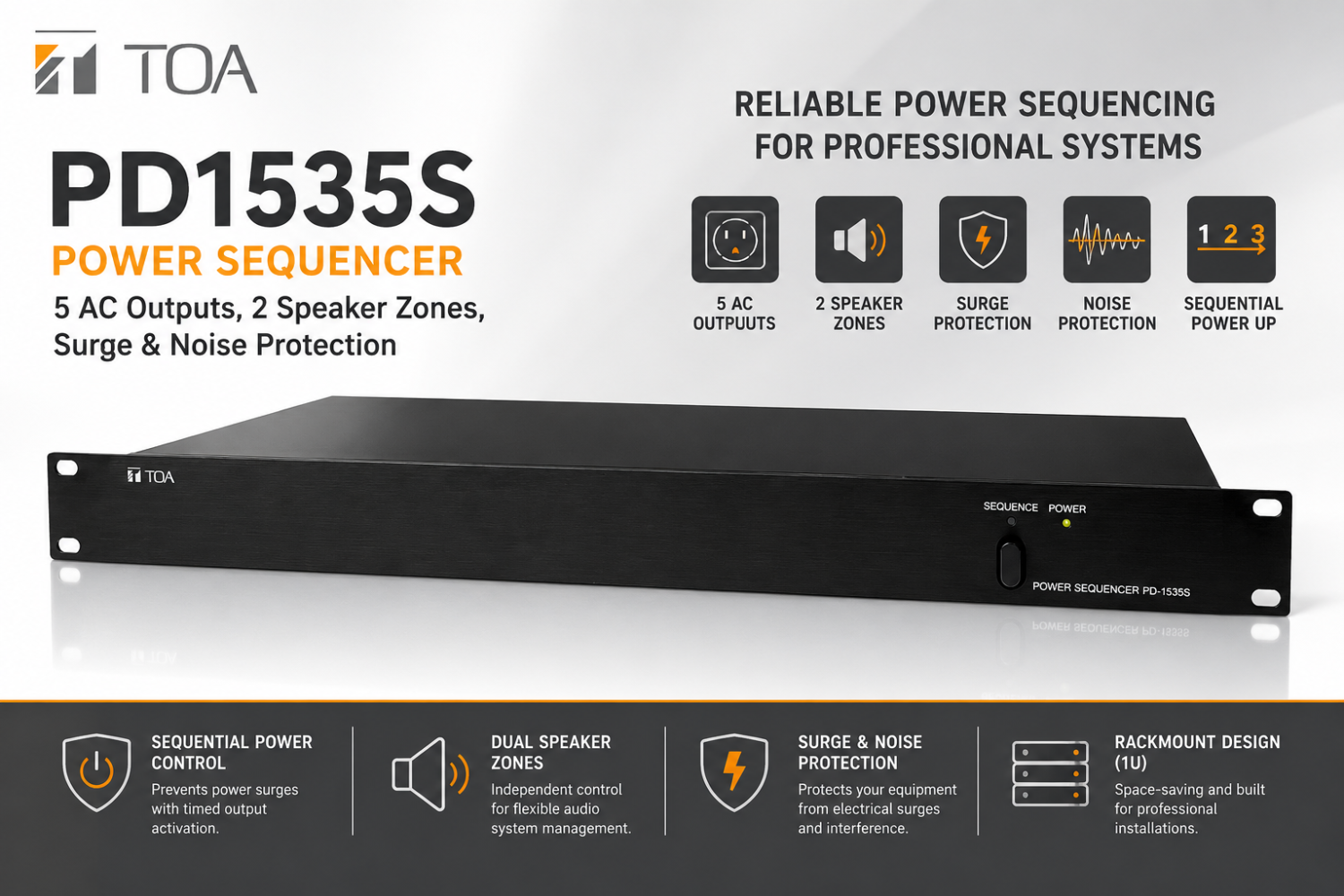

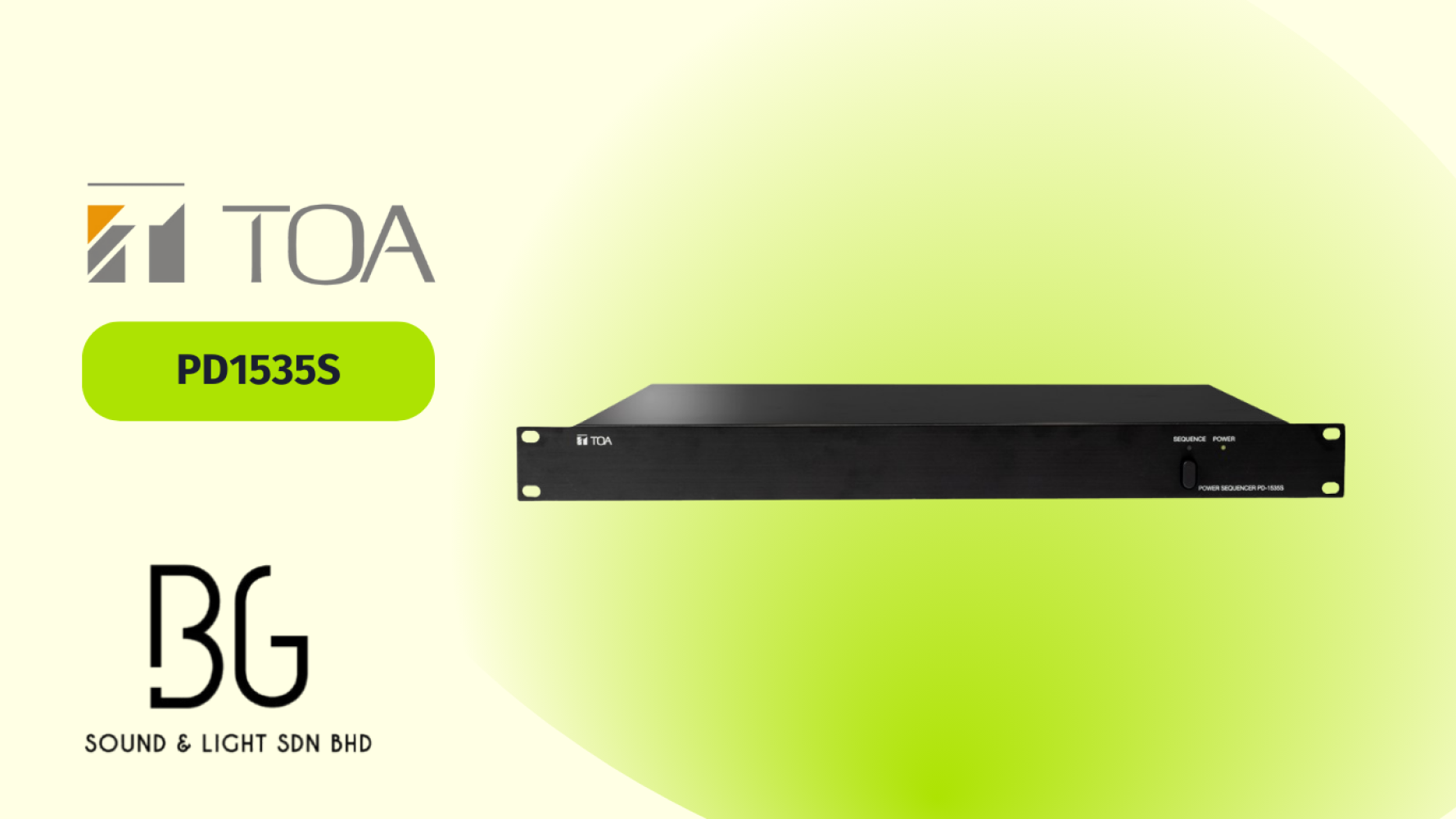

The TOA PD-1535S Power Sequencer is designed to extend the life of professional audio and AV equipment by ensuring proper power-on and power-off sequencing. With 5 AC outlets and 2 speaker zone outputs, it prevents power surges, tripped breakers, and speaker damage. Its cascading capability of up to 4 units makes it ideal for auditoriums, mosques, halls, and commercial facilities.

✅ Key Features

• 5 Universal AC Outlets (3-pin, 10A)

• 2 Speaker Zone Outputs (500W each)

• Prevents power surges & tripped breakers

• Proper sequencing to avoid speaker damage

• Cascade up to 4 units for large systems

• Clear LED indicators for power & sequence

• 1-second step timing (factory preset)

• Rack-mountable, slim 1U design

⚙️ Basic Specifications

• Power Source: AC 220–230V, 50/60 Hz, Max. 3500W

• Max. Load: 16A

• Speaker Input: 2 channels, 100V from amplifier, Max. 500W each

• Speaker Output: 2 channels, Max. 500W each

• AC Outlets: 5 × Universal type (3-pin, 10A)

• Control I/O: 2 In, 2 Out (no-voltage contact, removable terminal block)

• Cascade: Up to 4 units

• Step Timing: 1 second per AC outlet

• Indicators: Power (green), Sequence (green)

• Operating Temp/Humidity: 0–40 °C, <90% RH (no condensation)

• Dimensions: 482 × 44 × 326.5 mm

• Weight: 3.5 kg

• Accessories: Removable terminal plugs (6 pins ×2, 3 pins ×2)

📦 Packing Size: ~530 × 100 × 390 mm
⚖️ Gross Weight: ~4.5 kg
