🔊 Product Description

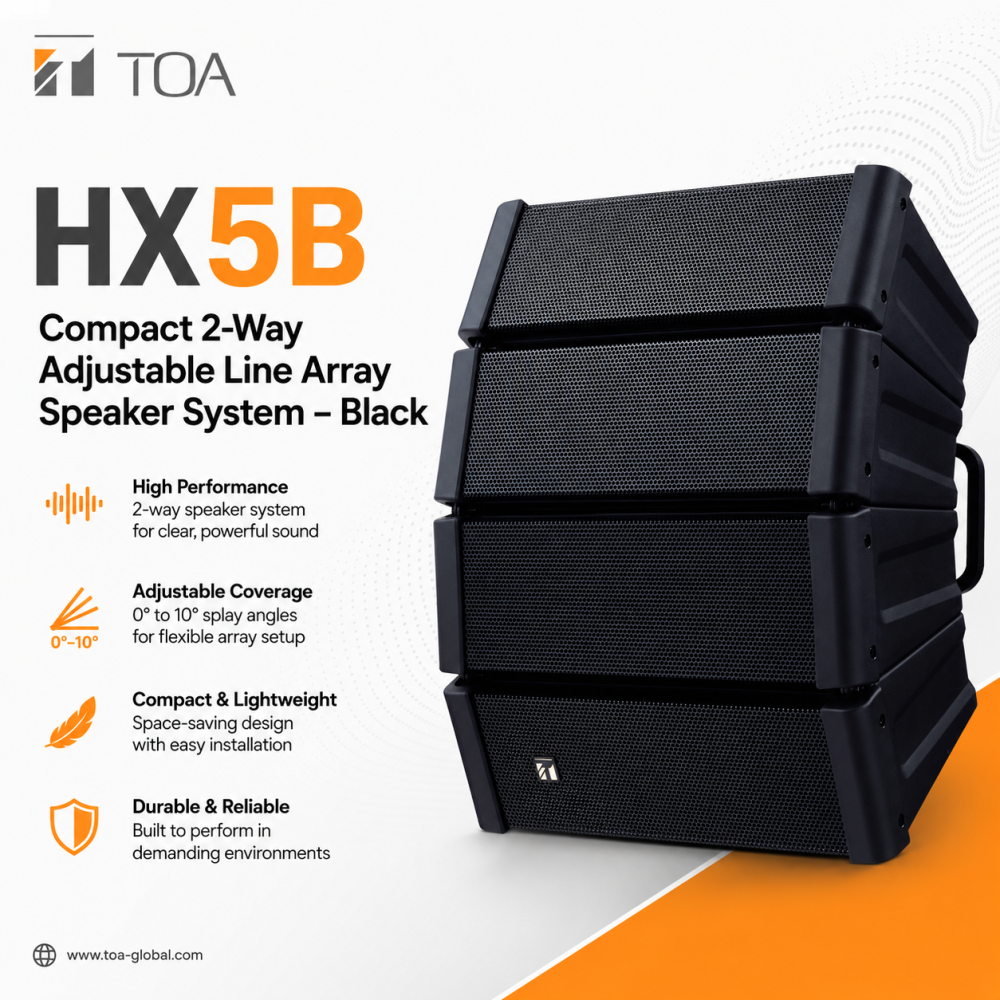

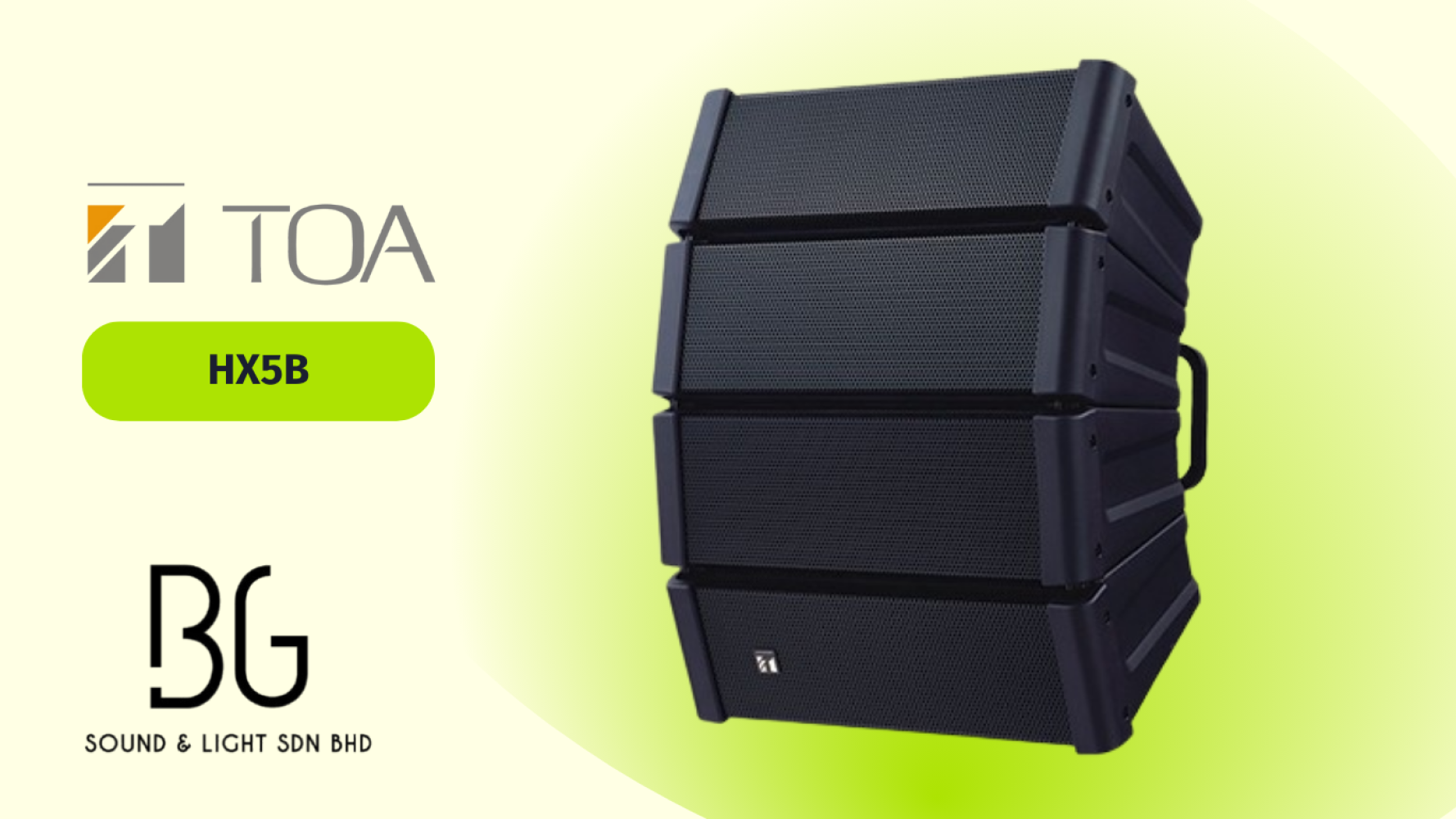

The TOA HX-5B Compact Line Array Speaker System is a versatile 2-way loudspeaker designed for clear, high-quality sound reproduction in challenging acoustic environments. With adjustable vertical directivity (15°, 30°, 45°, 60°), it provides precise coverage control, making it ideal for auditoriums, houses of worship, event halls, and spaces with long reverberation times or high background noise. Its bass-reflex enclosure and high sensitivity ensure powerful, balanced performance.

✅ Key Features

• 2-way compact line array speaker system

• Adjustable vertical directivity (15°, 30°, 45°, 60°) for optimal coverage

• High power handling: 200W continuous, 600W program

• Wide frequency response: 70 Hz – 20 kHz

• High sensitivity: up to 99 dB (1W/1m)

• Flexible installation options with TOA mounting accessories

• Durable polypropylene enclosure with black steel grille

• Ideal for indoor applications such as halls, churches, and conference venues

⚙️ Technical Specifications

• Enclosure: Bass-reflex type

• Power Handling Capacity: 200W continuous pink noise, 600W continuous program

• Impedance: 8 Ω

• Sensitivity (1W/1m): 96 dB (60°), 97 dB (45°), 98 dB (30°), 99 dB (15°)

• Frequency Response:

  • 70 Hz – 20 kHz (-10 dB, 60° mode)

  • 75 Hz – 20 kHz (-10 dB, 45° mode)

  • 80 Hz – 20 kHz (-10 dB, 30° mode)

  • 85 Hz – 20 kHz (-10 dB, 15° mode)

• Crossover Frequency: 4 kHz

• Directivity Angle:

  • Horizontal: 100° (≥2 kHz)

  • Vertical: 60° (≥800 Hz), 45° (≥1.2 kHz), 30° (≥1.6 kHz), 15° (≥3.2 kHz)

• Speaker Components:

  • LF: 12 cm cone-type × 4

  • HF: Balanced dome-type × 12

• Input Terminal: Speakon NL4MPXX × 2, M4 screw terminal

• Finish: Polypropylene (black), steel grille (black)

• Dimensions: 408 (W) × 546 (H) × 342 (D) mm

• Weight: 16 kg

• Accessories: Hanging bracket × 2, Hex wrench × 1

• Options: MT-200 transformer, HY series mounting brackets & adapters
