🔊 Product Description:

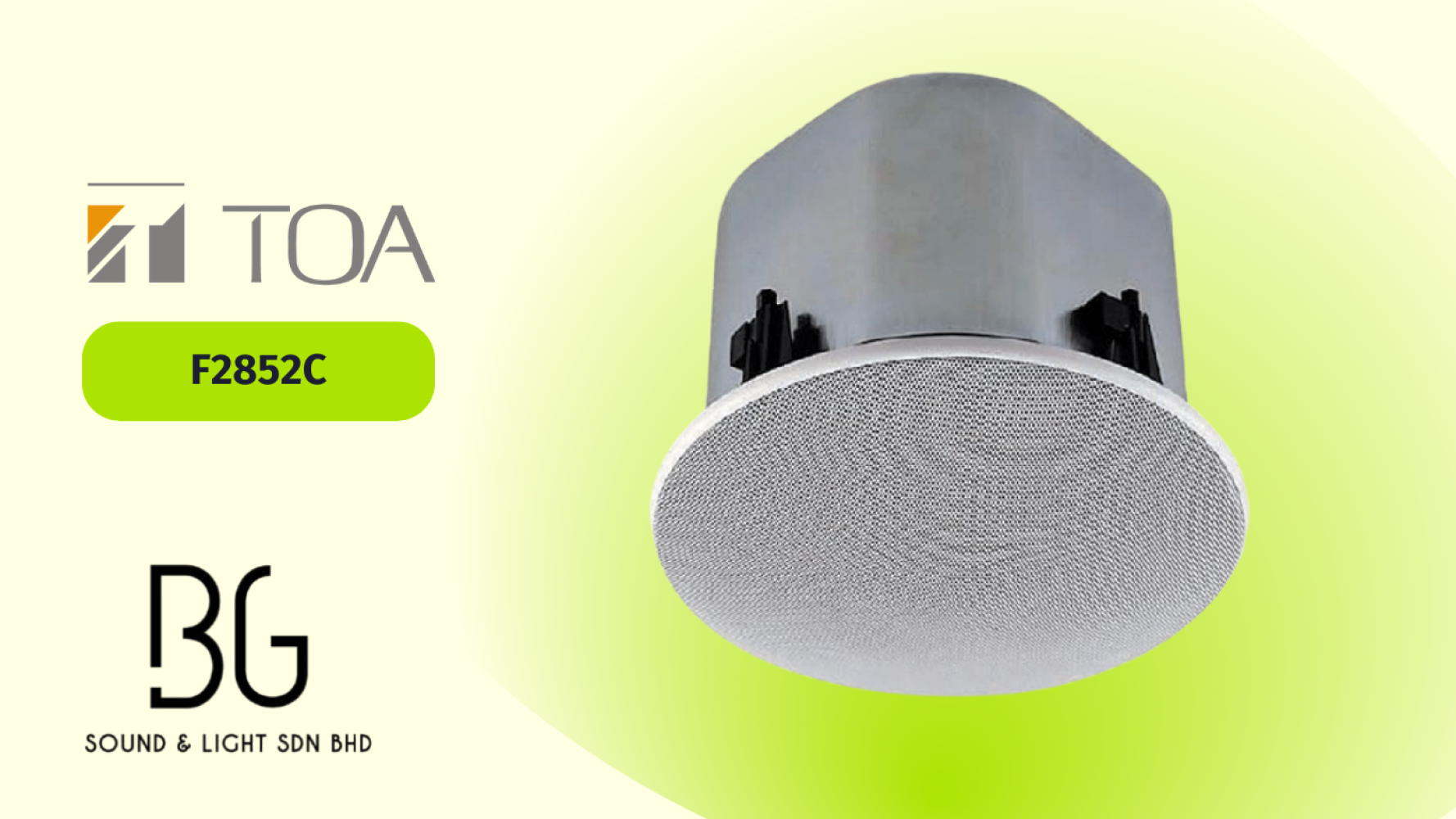

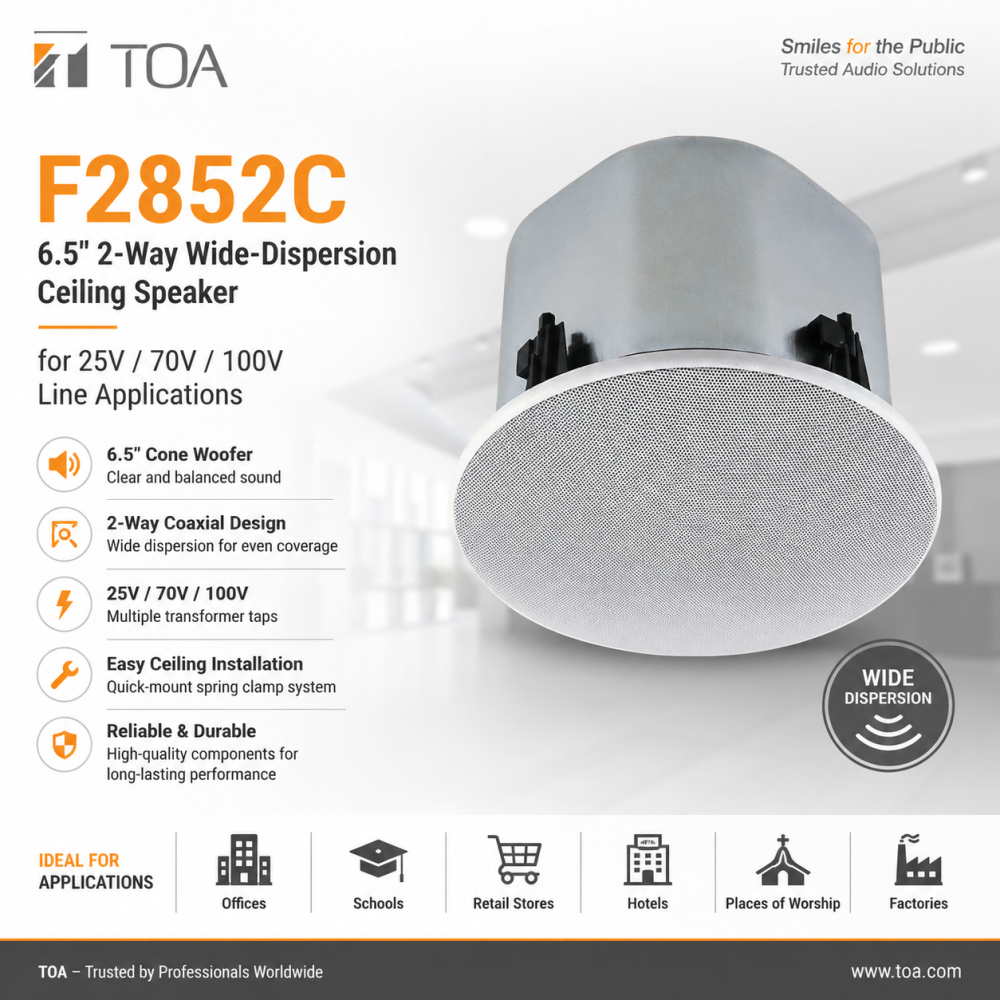

The TOA F-2852C is a high-performance 6.5" 2-way wide-dispersion ceiling speaker designed for commercial installations. With a rated input of 60W and bass reflex enclosure, it delivers powerful and well-balanced sound across wide areas, making it suitable for offices, schools, retail stores, and public facilities. Its coaxial design with dome tweeter and cone woofer ensures crystal-clear highs and deep lows, while overload protection circuitry enhances durability.

✅ Key Features:

• 6.5" 2-way coaxial ceiling speaker with wide dispersion

• Rated input 60W (high impedance), with 8Ω/16Ω low impedance option

• Bass reflex enclosure for rich, extended low-frequency response

• Supports 25V, 70V, and 100V line applications

• High sensitivity (91 dB SPL) for efficient sound coverage

• Wide frequency response: 60 Hz – 20 kHz

• Fire-resistant ABS resin and steel construction (UL-94 V-0 grade)

• Includes panel, safety wire, and ceiling reinforcement ring

⚙️ Technical Specifications:

• Enclosure Type: Bass reflex

• Rated Input: 60W (high impedance)

• Power Handling: 90W continuous pink noise (8Ω), 180W program (8Ω)

• Impedance: 100V: 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W)
        70V: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3kΩ (1.5W)
        25V: 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 670Ω (0.9W), 3.3kΩ (0.2W)
        8Ω / 16Ω selectable

• Sound Pressure Level: 91 dB (1W, 1m)

• Frequency Response: 60 Hz – 20 kHz (-10 dB)

• Speaker Components: 16 cm cone woofer, dome tweeter

• Mounting Hole: Ø250 mm (Max ceiling thickness 37 mm)

• Dimensions: Ø280 × 227 mm

• Weight: 5.1 kg

• Finish: ABS resin & steel, fire-resistant grade UL-94 V-0

• Accessories: Panel, ceiling reinforcement ring, safety wire, paper pattern
