🔊 Product Description

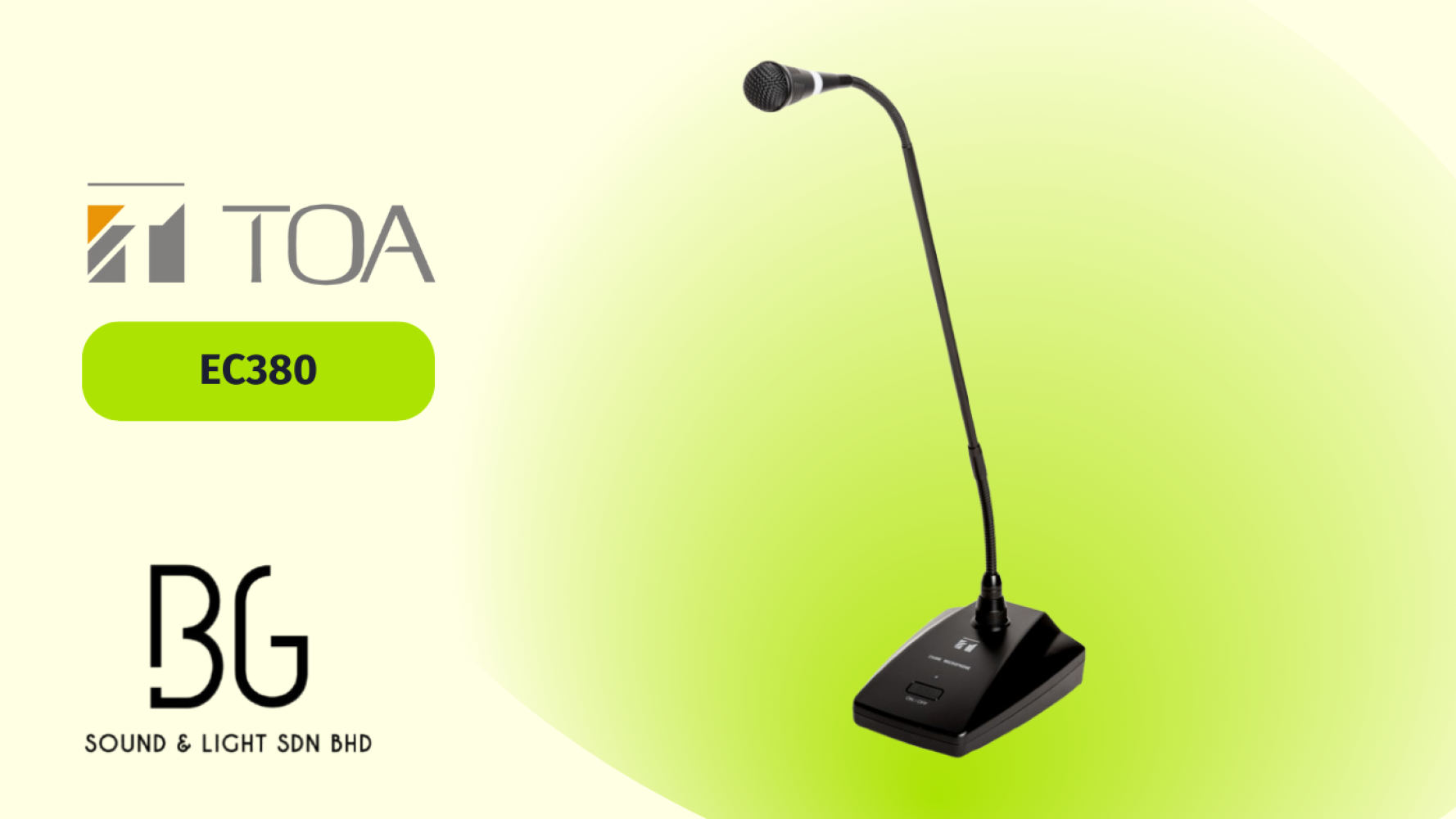

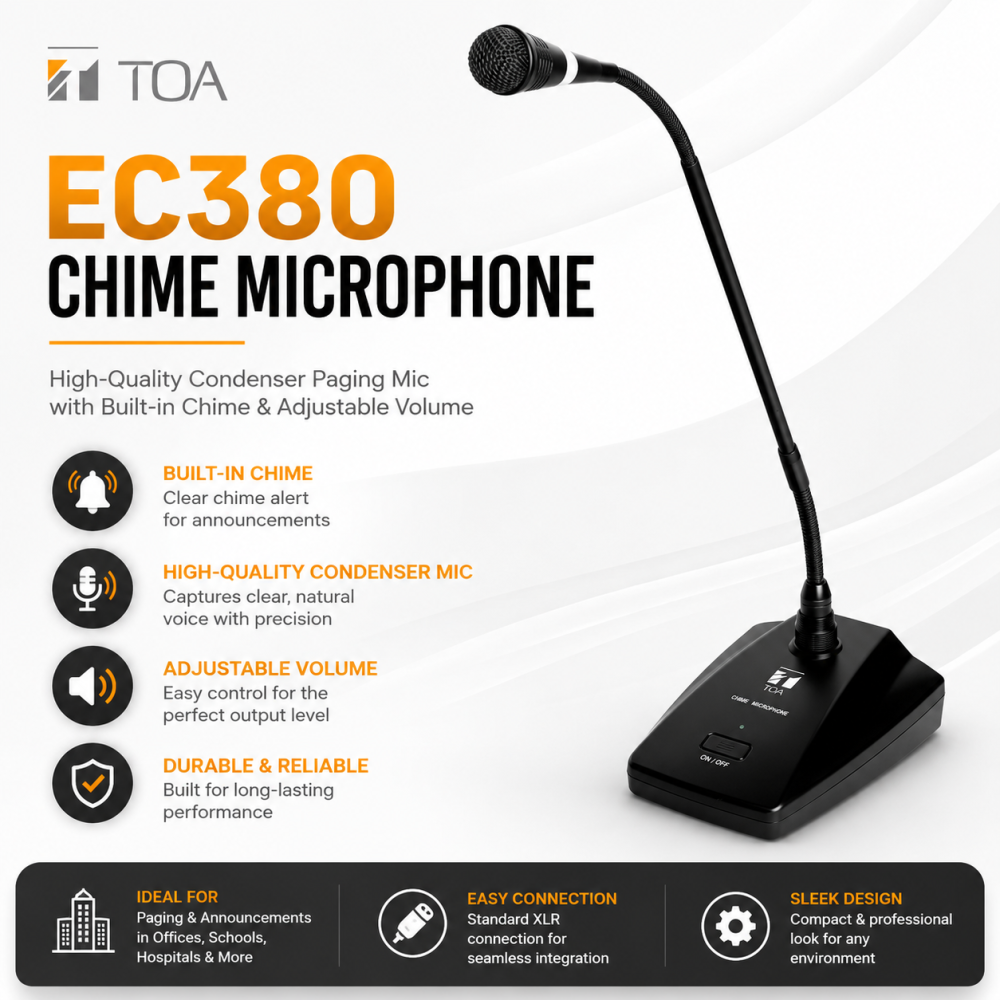

The TOA EC-380 Chime Microphone is a high-quality condenser microphone designed for paging and announcement applications. Equipped with a built-in 4-tone chime (up/down), adjustable chime volume, and flexible power options (battery or DC adapter), it offers clear, reliable performance for schools, offices, houses of worship, and public facilities. Its ergonomic design and included long XLR cable make it a convenient, plug-and-play solution for professional use.

✅ Key Features

• High-quality condenser microphone with cardioid pickup pattern

• Built-in 4-tone chime (up/down) with adjustable volume

• Dual power options: 4x AA batteries or 9-24V DC adapter

• Wide frequency response: 50 Hz – 18 kHz

• Balanced XLR and RJ45 output for flexible connectivity

• Supplied with windscreen and 7.5m XLR cable

• Lightweight and durable design for daily use

⚙️ Technical Specifications

• Power Source: 6V DC (4x "AA" batteries) or 9–24V DC adapter

• Current Consumption: 13 mA (chime), 6 mA (mic operation)

• Microphone Element: Condenser

• Polar Pattern: Cardioid

• Chime Tones: 4-tone (up/down)

• Impedance: 600 Ω, balanced

• Output Level:

  • Mic: -41 dB ±3 dB (1 kHz, 0 dB=1 V/Pa)

  • Chime: -31 dB ±3 dB (max)

• Frequency Response: 50 Hz – 18,000 Hz

• Output Connector: XLR-3-32 equivalent, RJ45 (Audio/Power/Contact)

• Operating Temperature: 0 °C to +40 °C

• Finish: ABS resin (black), copper alloy mic shaft

• Dimensions: 110 (W) × 145 (L) × 532 (H) mm

• Weight: 558 g (without batteries)

• Accessories: Windscreen ×1, 7.5m XLR cable ×1
