🔊 Product Description

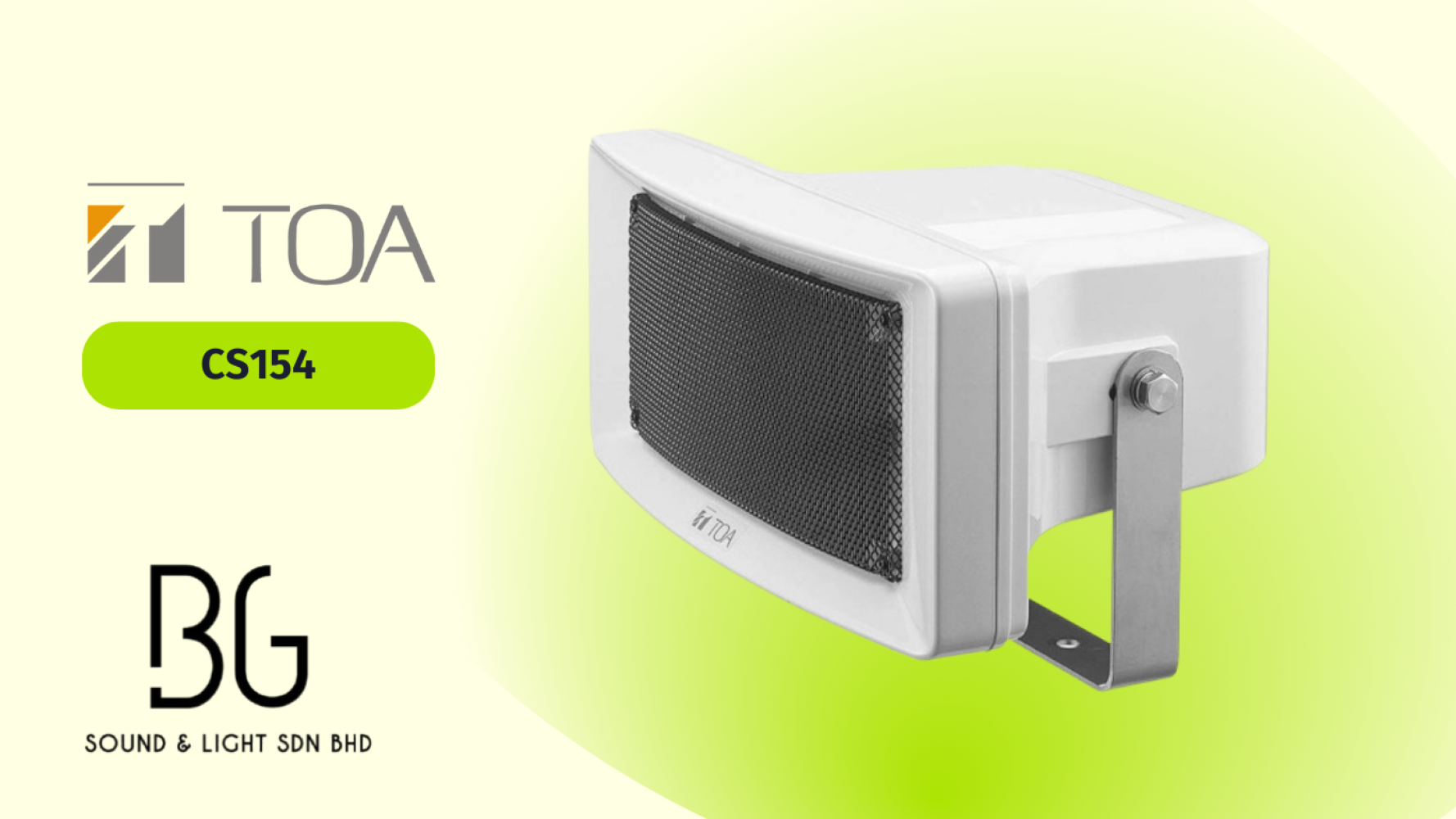

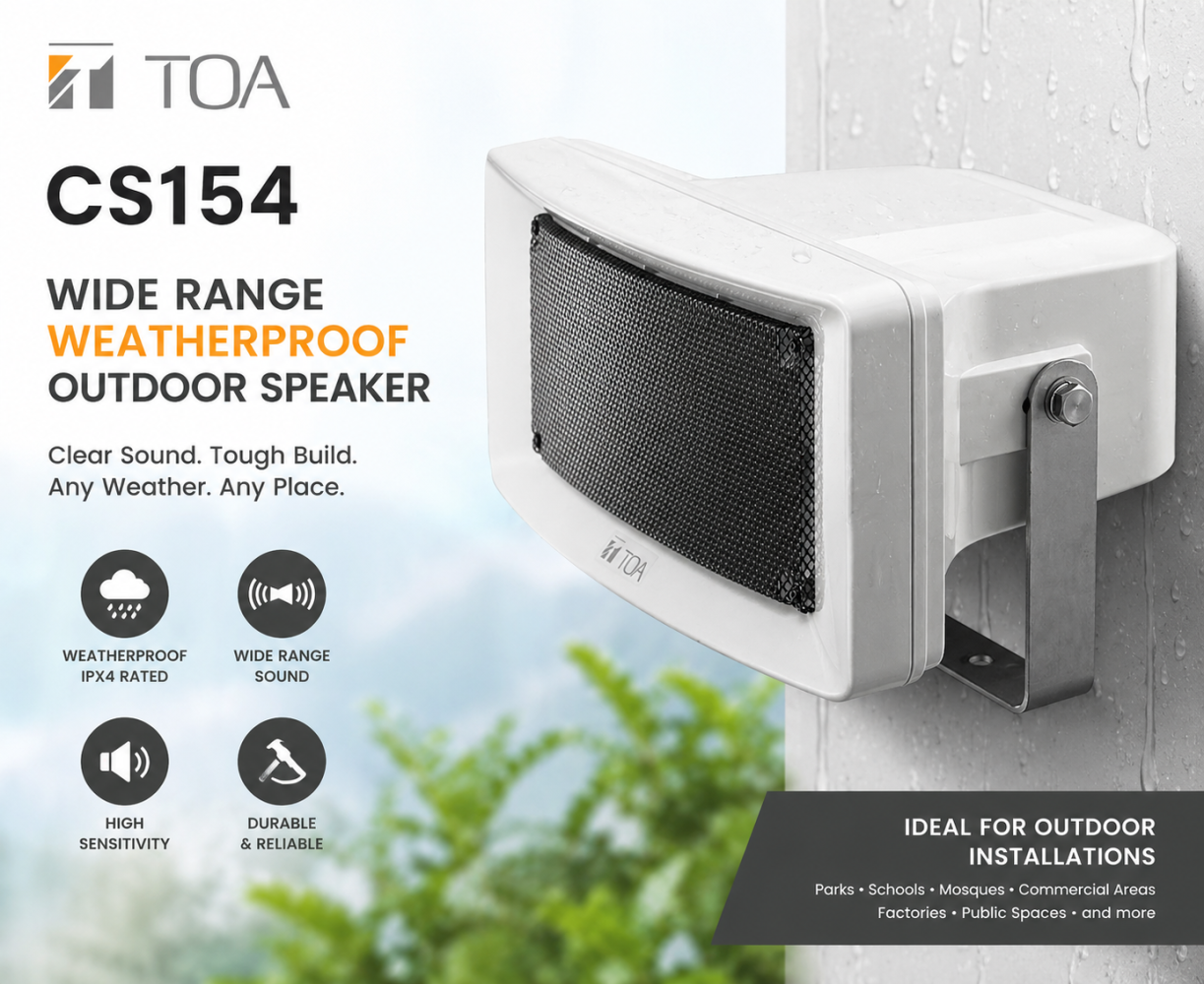

The TOA CS154 Wide Range Weatherproof Outdoor Speaker delivers clear and powerful audio performance with all-weather durability. Designed with stainless steel hardware and IP65 protection, it is ideal for outdoor installations in schools, mosques, factories, shopping areas, and public facilities. Combining the high intelligibility of a horn speaker with the rich sound of a dynamic speaker, the CS154 ensures reliable paging and background music in any environment.

✅ Key Features / Bullet Points

• 15W wide range outdoor speaker with IP65 weatherproof rating

• Combines horn clarity with dynamic speaker sound quality

• Stainless steel bracket and hardware for long-lasting durability

• Constant directivity horn with 90° horizontal coverage

• Multiple power taps for flexible installation (100V / 70V line)

• Clear and intelligible voice reproduction for paging and announcements

• Ideal for schools, houses of worship, factories, and outdoor venues

⚙️ Technical Specifications

• Rated Input: 15 W

• Rated Impedance:

  • 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)

  • 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)

• Sensitivity: 97 dB (1 W, 1 m)

• Frequency Response: 150 – 15,000 Hz

• Speaker Component: 12 cm cone-type

• Horizontal Directivity: 90° (±45° at 3 kHz)

• Speaker Cord: 2-core cabtyre cord (Ø 6 mm)

• Operating Temperature: -20℃ to +55℃

• Dust/Water Protection: IP65

• Finish:

  • Horn/Cover: ABS resin, off-white, paint

  • Bracket: Stainless steel

  • Net: Aluminum, gray, paint

  • Screw: Stainless steel

• Dimensions: 366 (W) × 230 (H) × 272 (D) mm

• Weight: 2.8 kg
