Details

---

Product Description

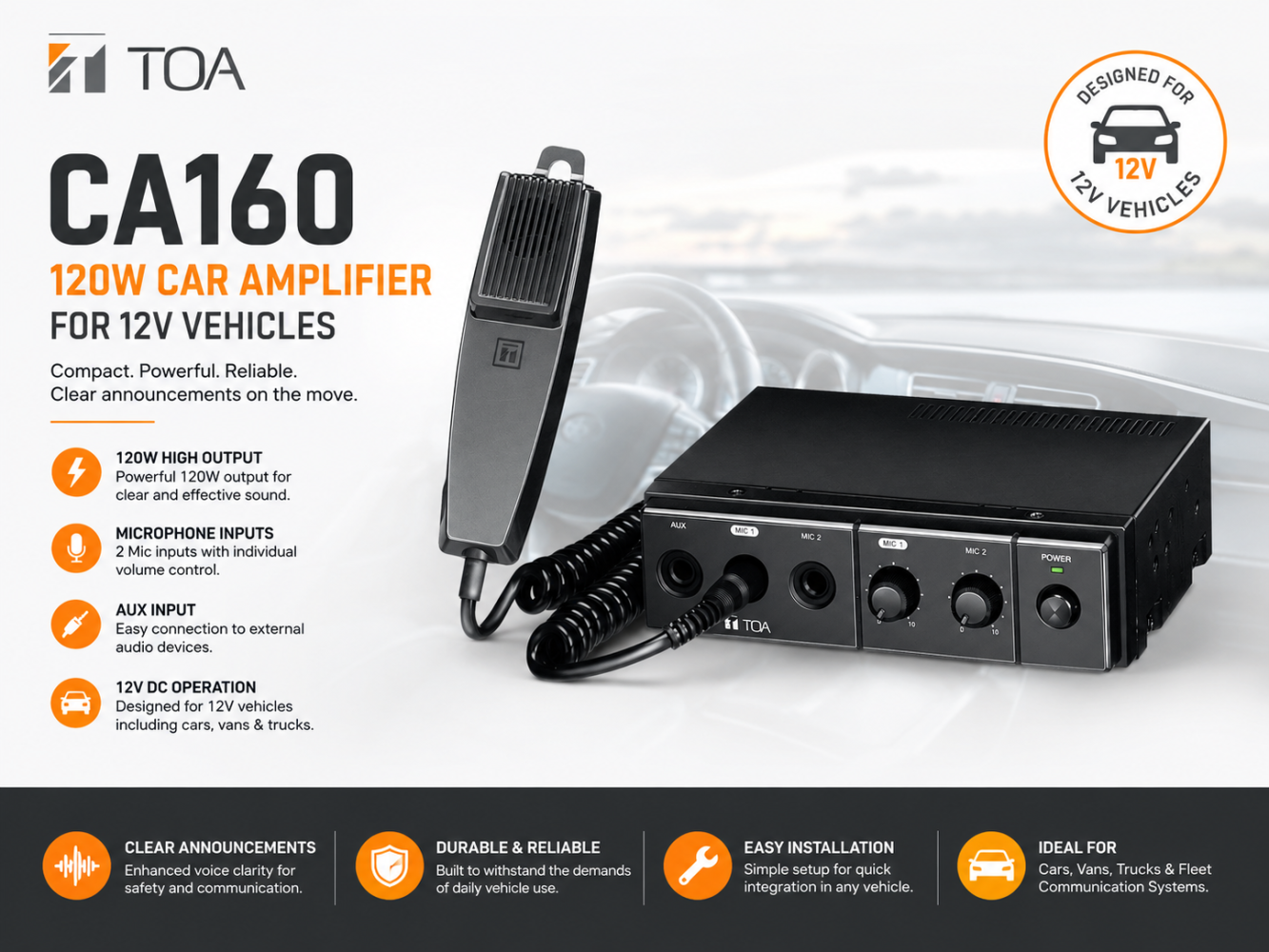

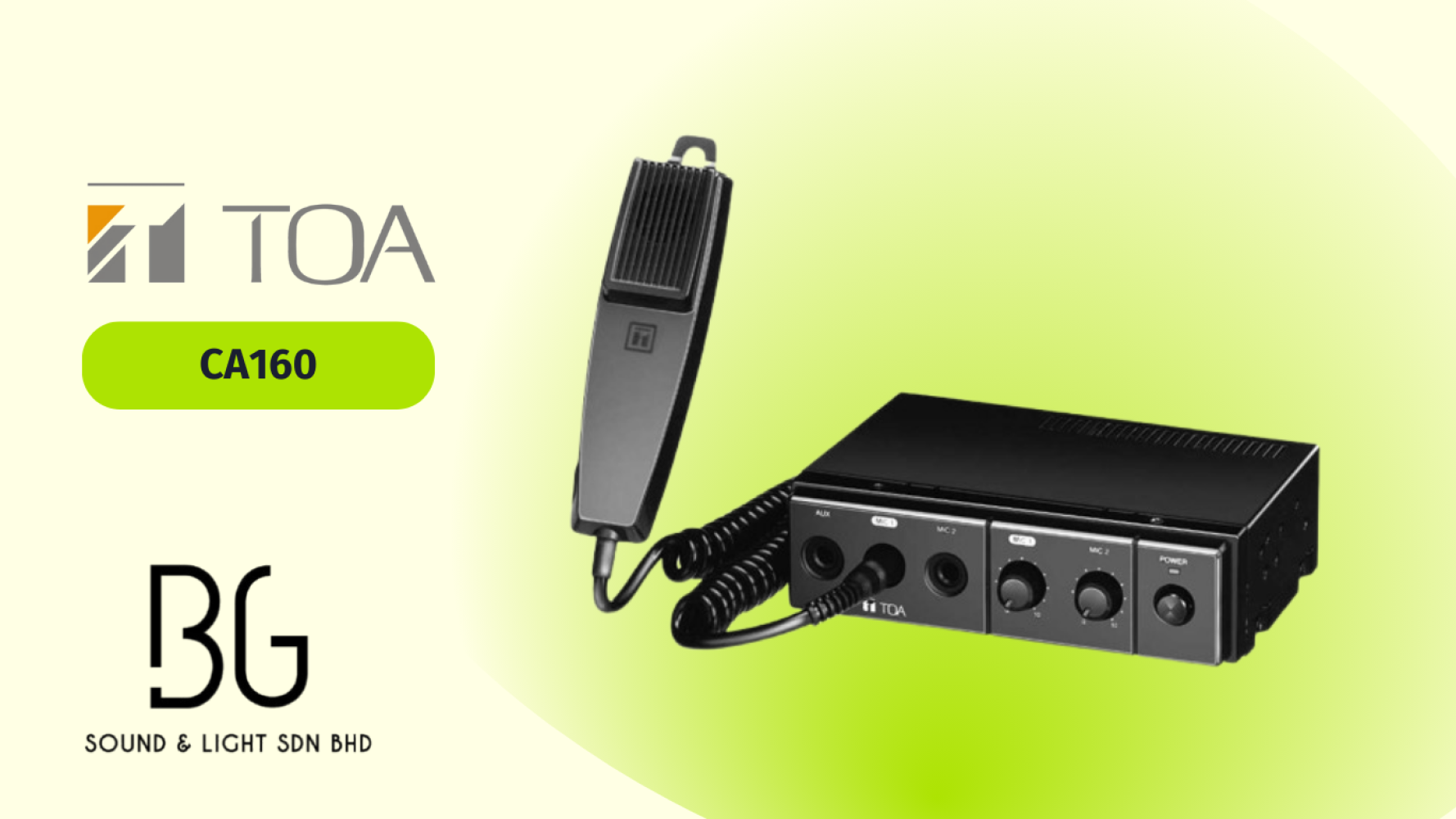

The TOA CA-160 is a compact 1-DIN size 60W rated (120W Max.) car amplifier, designed for reliable use with 12V vehicles. Featuring dual microphone inputs, an auxiliary input, and robust build quality, it is ideal for mobile broadcasting, announcements, and background music inside vehicles such as buses, vans, and service cars. Its durable design, easy installation, and included dynamic microphone with talk switch make it a practical and professional audio solution.

✅ Key Features / Bullet Points

• 1-DIN size compact car amplifier (60W rated, 120W Max.)

• Powered by 12V car battery (10–16V usable range)

• Dual microphone inputs + 1 AUX input (phone jack)

• Includes unidirectional dynamic microphone with talk switch

• Frequency response: 100 Hz – 10 kHz for clear speech and music

• Low distortion (≤ 5% at 1 kHz rated output)

• Adjustable output impedance (4Ω / 8Ω) via lead connections

• Rugged ABS resin front panel and zinc-plated steel case

• Supplied with mounting bracket, screws, fuse, connection cords, and mic holder

• Lightweight design – only 1.2 kg for easy installation

⚙️ Technical Specifications

• Power Source: 14 V DC standard, usable range 10 – 16 V DC

• Rated Output: 60 W (Max. 120 W)

• Power Consumption: ≤ 9 A at rated output

• Output Impedance: 4Ω (BRN), 8Ω (ORG), Common (WHT) – selectable

• Distortion: ≤ 5% at 1 kHz rated output

• Frequency Response: 100 – 10,000 Hz

• Inputs:

  • Mic 1–2: 600 Ω, 4 mV, phone jack

  • AUX: 10 kΩ, 500 mV, phone jack

• Accessory Microphone: Dynamic, unidirectional, with talk switch (600 Ω, -53 dB sensitivity)

• Finish: Front panel: ABS resin (black); Case: Zinc-plated steel sheet

• Dimensions: 178 (W) × 50 (H) × 170 (D) mm

• Weight: 1.2 kg

• Accessories: Microphone holder ×1, Mounting bracket ×1, Mounting screw set ×1, Fuse (12 A) ×1, Connection cord set ×1
