Product Introduction

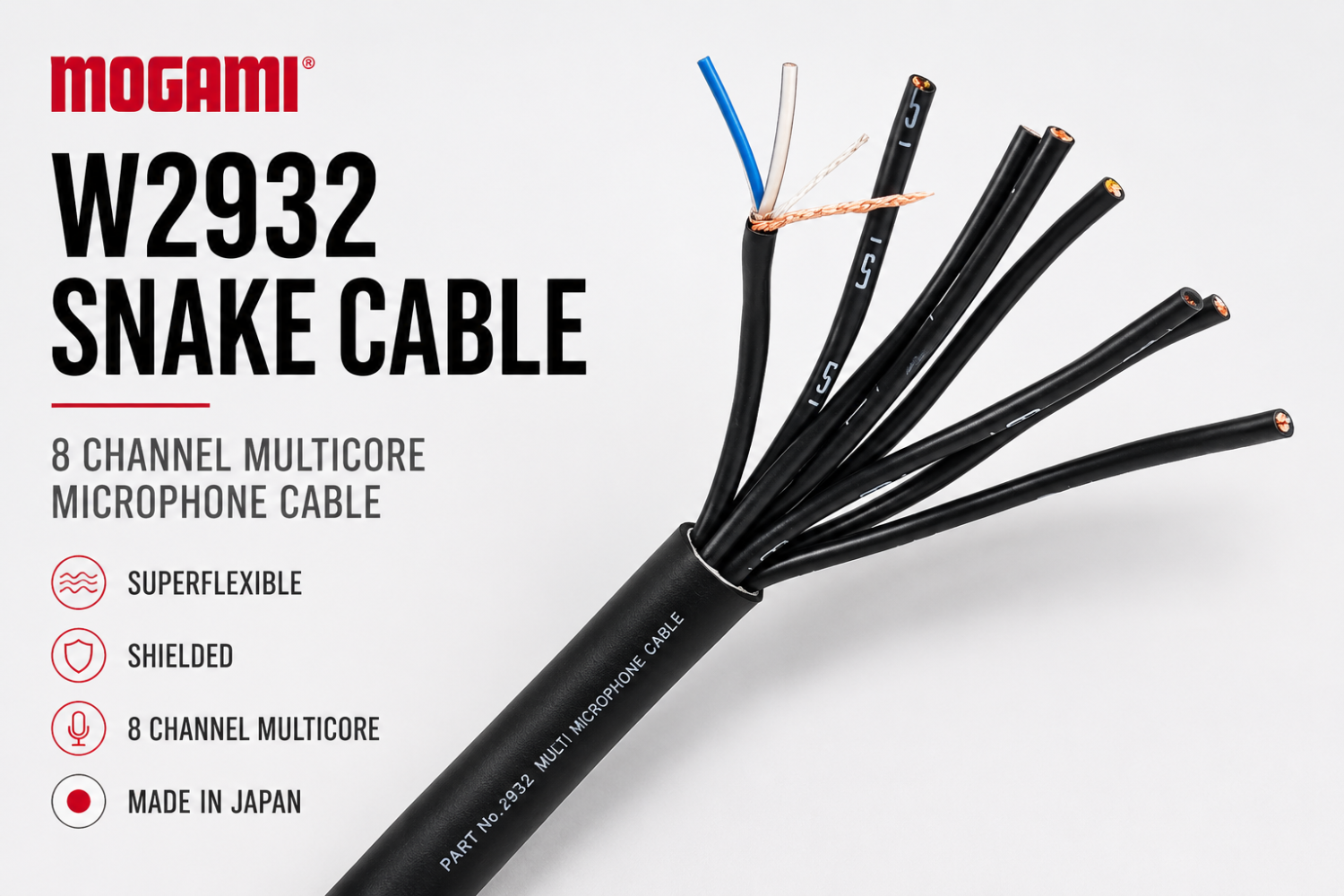

The Mogami W2932 Snake Cable is a professional 8-channel multicore microphone cable engineered in Japan for studio, live sound, and broadcast applications. Designed with individually twisted shielded pairs, it delivers the highest audio performance with superb electrical and mechanical reliability. Each channel is printed, underlined, and color-coded for fast identification, while the spiral copper shield and drain wire provide excellent noise rejection and easy termination. Compact, superflexible, and rugged, the W2932 is the ideal solution for engineers demanding reliable multicore connectivity.

Key Features

• 8-channel multicore microphone snake cable

• Individually twisted shielded pairs with drain wire

• XLPE insulation with superior heat resistance during soldering

• Color-coded and numbered jackets for easy channel identification

• Spiral copper shield for maximum noise rejection

• Rugged yet superflexible PVC outer jacket

• Works in harsh environments down to -20°C

• Made in Japan – trusted worldwide by professionals

Specifications

Specification	Details
Model	Mogami W2932
Type	Snake Cable / Multicore Microphone Cable
Channels	8
Conductor Size	0.15mm² (#26AWG, 30/0.08A strands)
Insulation	1.0mm XLPE (Cross Linked Polyethylene)
Shield	Spiral bare copper (approx. 58/0.10A)
Drain Wire	0.18mm² (#25AWG, 7/0.18TA)
Jacket Diameter	11.5mm (0.453")
Jacket Material	Flexible PVC
Weight	18kg / 100m
DC Resistance (20°C)	0.13Ω/m (conductor), 0.031Ω/m (shield)
Capacitance (1kHz)	130pF/m
Inductance	0.6µH/m
Operating Temperature	-20°C ~ +70°C
Standard	UL13 CL2X / UL 20002 AWM
Origin	Made in Japan
