Details

---

Product Introduction

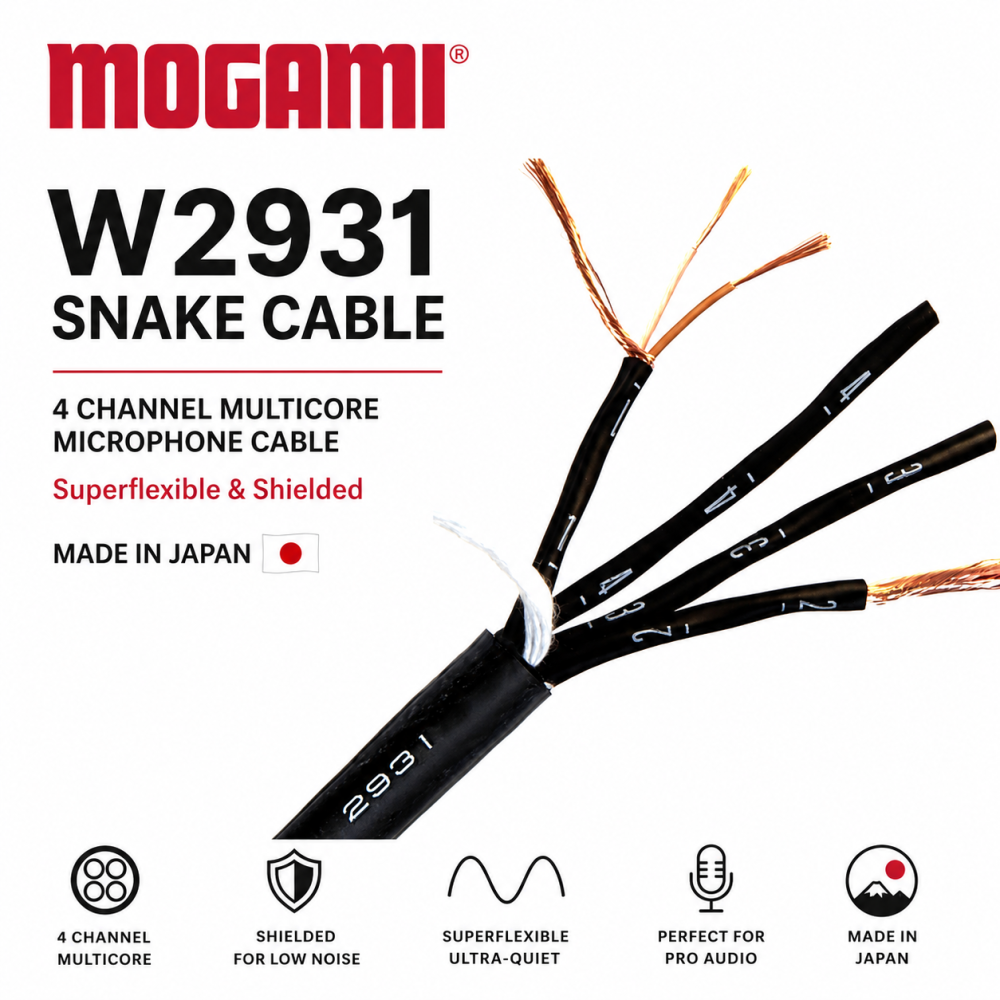

The Mogami W2931 Snake Cable is a professional 4-channel multicore microphone cable engineered in Japan for studio, live sound, and installation use. Built with individually twisted shielded pairs, this compact and superflexible cable ensures excellent signal integrity and noise rejection. Each channel is printed, underlined, and color-coded, making identification fast and reliable. With a rugged PVC jacket, spiral copper shielding, and drain wire for easy termination, the W2931 is ideal for small-format multicore applications requiring premium performance.

Key Features

• 4-channel multicore microphone snake cable

• Individually twisted shielded pairs with drain wire

• XLPE insulation for superb electrical performance

• Printed numbers and color-coded jackets for easy channel ID

• Spiral copper shield provides excellent noise rejection

• Compact and superflexible PVC outer jacket

• Operates reliably down to –20°C

• Made in Japan – trusted by professionals worldwide

Specifications

Specification	Details
Model	Mogami W2931
Type	Snake Cable / Multicore Microphone Cable
Channels	4
Conductor Size	0.15mm² (#26AWG, 30/0.08A strands)
Insulation	1.0mm XLPE (Cross Linked Polyethylene)
Shield	Spiral bare copper (approx. 58/0.10A)
Drain Wire	0.18mm² (#25AWG, 7/0.18TA)
Jacket Diameter	8.6mm (0.339")
Jacket Material	Flexible PVC
Weight	9kg / 100m
DC Resistance (20°C)	0.13Ω/m (conductor), 0.031Ω/m (shield)
Capacitance (1kHz)	130pF/m
Inductance	0.6µH/m
Operating Temperature	–20°C ~ +70°C
Standard	UL13 CL2X / UL 20002 AWM
Origin	Made in Japan
