Product Introduction

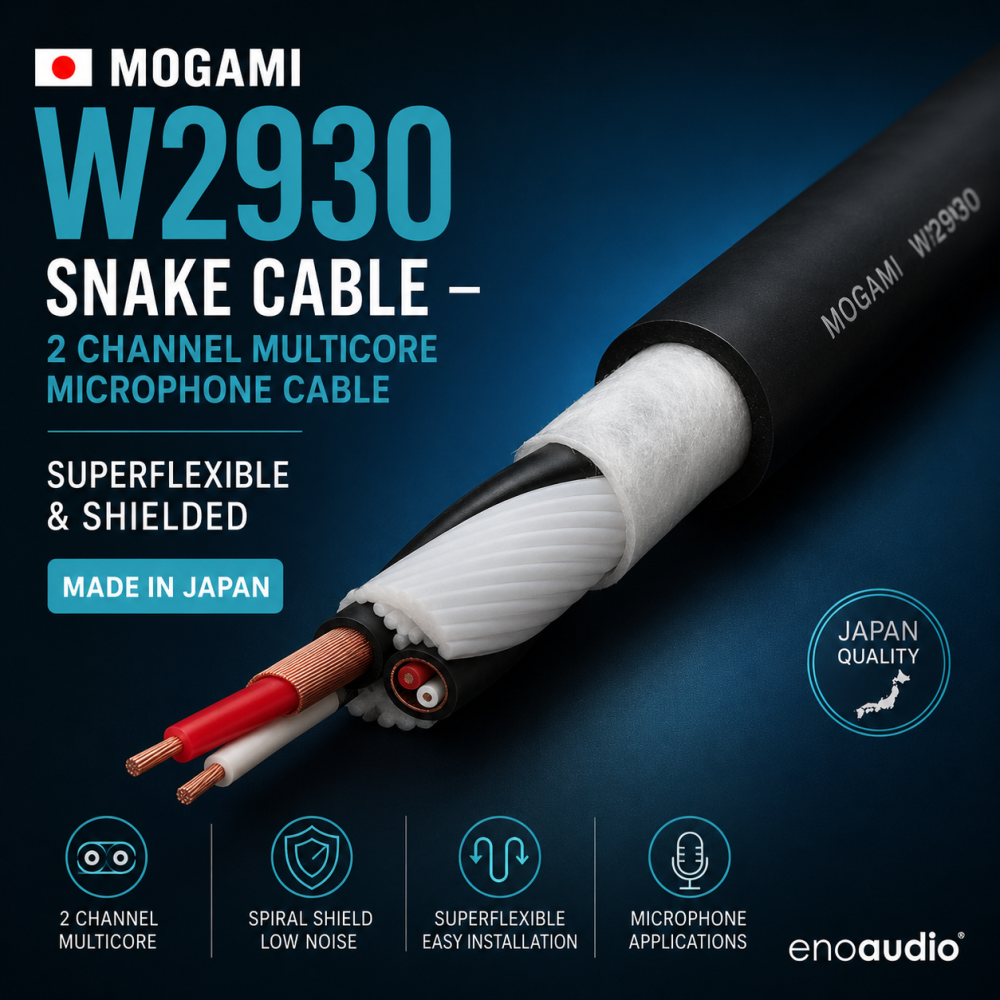

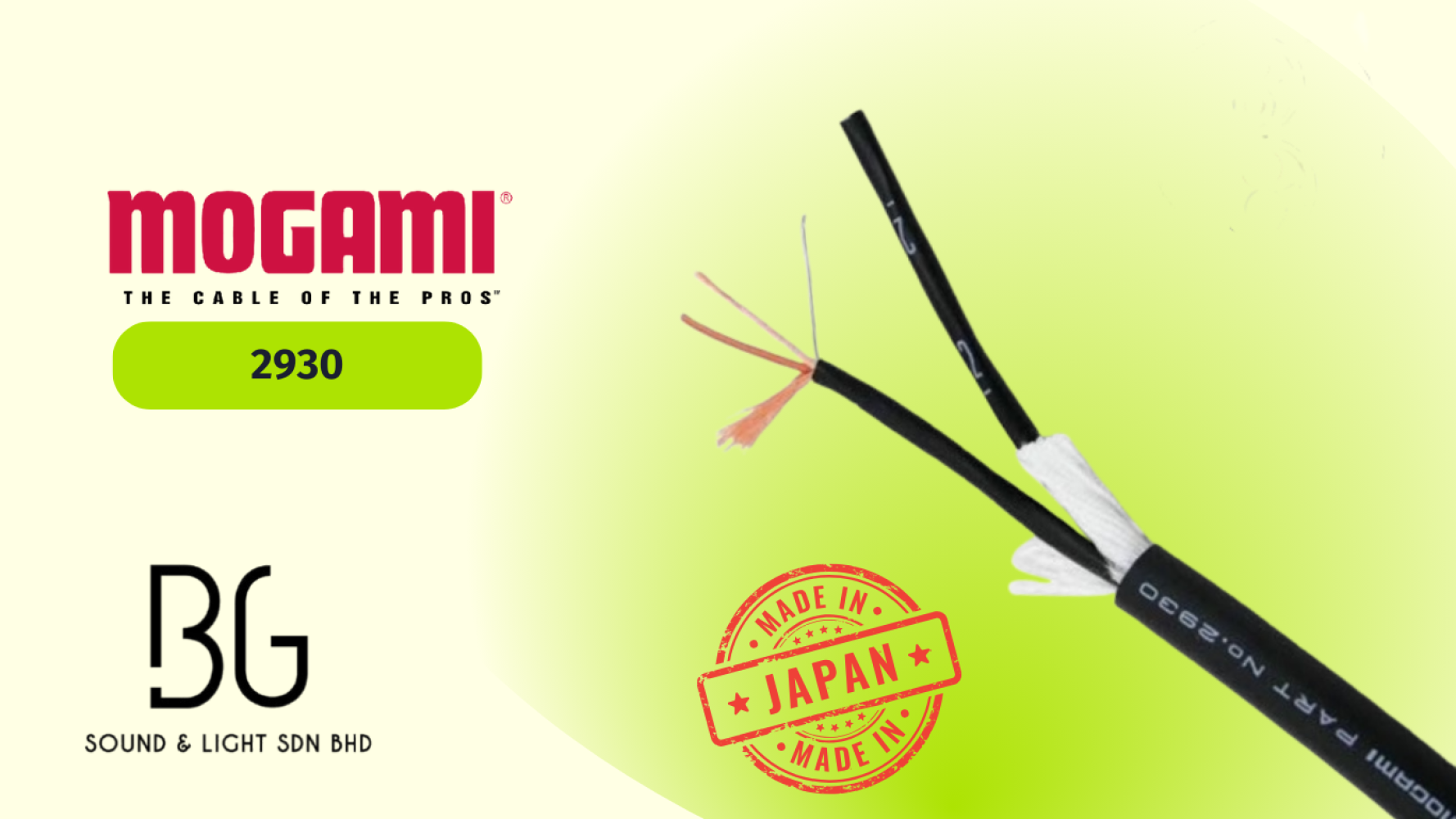

The Mogami W2930 Snake Cable is a professional 2-channel multicore microphone cable, designed in Japan for studio, live sound, and installation use. Compact and superflexible, it features individually twisted shielded pairs for superior audio performance and noise rejection. Each channel is printed, underlined, and color-coded, ensuring quick and reliable identification. With its rugged PVC jacket, spiral copper shield, and drain wire for easy termination, the W2930 is the perfect choice for small multicore setups where space and reliability matter most.

Key Features

• 2-channel multicore microphone snake cable

• Individually twisted shielded pairs with drain wire

• XLPE insulation for excellent electrical stability

• Numbered and color-coded jackets for fast channel ID

• Spiral copper shield provides strong noise rejection

• Compact design with superflexible PVC outer jacket

• Reliable operation in harsh conditions (down to –20°C)

• Made in Japan – trusted by professionals worldwide

Specifications

Specification	Details
Model	Mogami W2930
Type	Snake Cable / Multicore Microphone Cable
Channels	2
Conductor Size	0.15mm² (#26AWG, 30/0.08A strands)
Insulation	1.0mm XLPE (Cross Linked Polyethylene)
Shield	Spiral bare copper (approx. 58/0.10A)
Drain Wire	0.18mm² (#25AWG, 7/0.18TA)
Jacket Diameter	7.5mm (0.295")
Jacket Material	Flexible PVC
Weight	7kg / 100m
DC Resistance (20°C)	0.13Ω/m (conductor), 0.031Ω/m (shield)
Capacitance (1kHz)	130pF/m
Inductance	0.6µH/m
Operating Temperature	–20°C ~ +70°C
Standard	UL13 CL2X / UL 20002 AWM
Origin	Made in Japan
