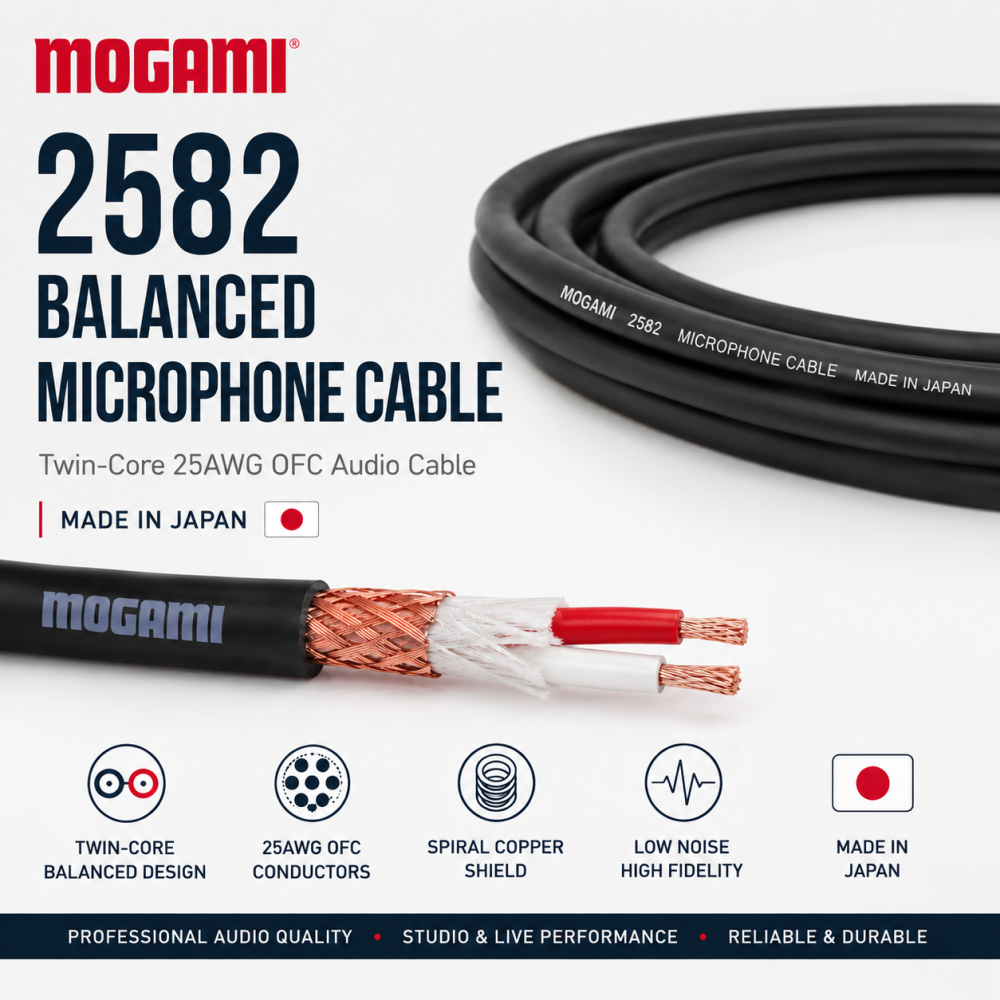

Mogami 2582 Balanced Microphone Cable – Twin-Core 25AWG OFC Audio Cable (Made in Japan)



The Mogami 2582 Balanced Microphone Cable is a low-cost, high-performance twin-core microphone cable designed with NEGLEX OFC conductors for superior sound quality. Its rubber-like flexible PVC jacket ensures extreme limpness, excellent handling, and resistance to abrasion, making it suitable for professional audio, broadcast, and A/V applications.

With XLPE insulation to minimize heat shrinkage during soldering, the 2582 is ideal for XLR terminations. Lightweight yet durable, this superflexible cable is an excellent choice where economical, reliable, and professional-grade performance is required.

Key Features (Bullet Points)

• High performance at low cost – professional quality at an affordable price

• Twin-core design (25AWG conductors) for balanced low-impedance microphone connections

• NEGLEX OFC copper for superior signal clarity and low noise

• XLPE insulation reduces shrinkage during soldering, perfect for XLR connectors

• Rubber-like PVC jacket for extreme flexibility and abrasion resistance

• Superflexible and lightweight, easy to handle and route

• Available in multiple jacket colors: Black, Red, Yellow, Green, Blue, Gray

• Made in Japan with legendary Mogami reliability

Specifications

• Part No.: W2582

• Cable Type: Superflexible Balanced Microphone Cable

• Outer Diameter: 6.0 mm (0.236")

• Conductor Size: 25 AWG (Twin-Core OFC)

• Insulation: XLPE (Cross-Linked Polyethylene)

• Jacket Material: Flexible PVC (rubber-like)

• Colors: Black / Red / Yellow / Green / Blue / Gray

• Flex Life: 13,800 cycles

• Tensile Strength: 441 N

• Applications: Microphone wiring, A/V installations, broadcast, industrial audio



  Configuration

• Part No.: W2582

• No. of Conductors: 2

• Electrical & Mechanical Characteristics

• DC Resistance @ 20°C
  • Inner Conductor: 0.14 Ω/m (0.043 Ω/ft)
  • Shield: 0.024 Ω/m (0.007 Ω/ft)

• Capacitance @ 1 kHz, 20°C (Partial C. Value)
  • K0: 90 pF/m (27 pF/ft)
  • K1: 10 pF/m (3 pF/ft)

• Inductance (1 kHz, 20°C): 0.8 µH/m (0.24 µH/ft)

• Electrostatic Noise: 50 mV Max.

• Electromagnetic Noise: 0.15 mV Max.

• Microphonics @ 50KΩ Load: 30 mV Max.

• Voltage Breakdown: Must withstand DC 500V / 15 sec

• Insulation Resistance: 100,000 MΩ × m Min. @ DC 125V, 20°C

• Flex Life: 13,800 cycles

• Tensile Strength: 441 N

• Emigration: Non-emigrant to ABS

• Applicable Temperature: -20°C ~ +70°C (-4°F ~ +158°

•

• Conductor Details: 12/0.12 A <T250D*3>

• Conductor Size: 0.135 mm² (#26 AWG)

• Insulation Diameter: Ø 1.5 mm (0.059")

• Insulation Material: LNXLPE (Low Noise Cross-Linked Polyethylene)

• Insulation Colors: Red / Clear

• Served Shield: Approx. 67/0.12A

• Jacket Diameter: Ø 6.0 mm (0.236")

• Jacket Material: Flexible PVC

• Jacket Colors: Black / Red / Yellow / Green / Blue / Gray

• Roll Sizes: 50 m (164 ft), 100 m (328 ft), 200 m (656 ft)

• Weight (200 m Roll): 9 kg
