Details

---

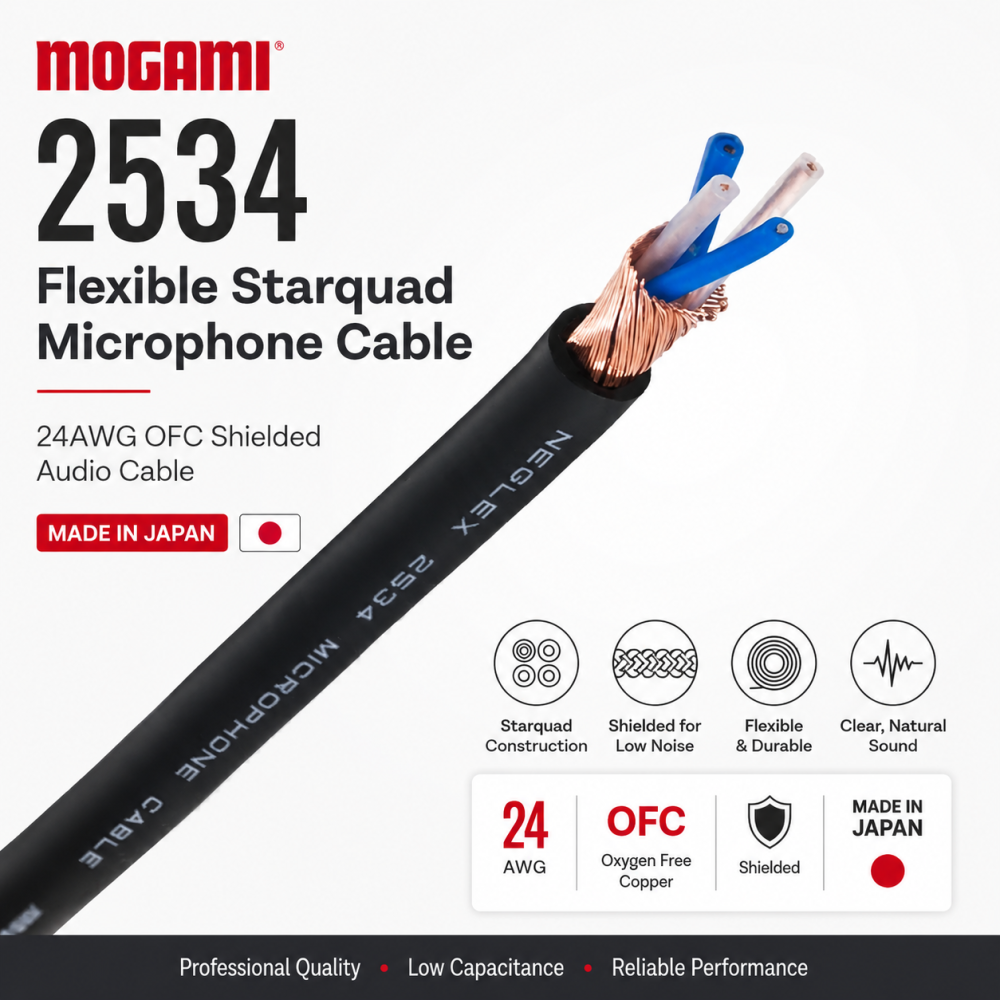

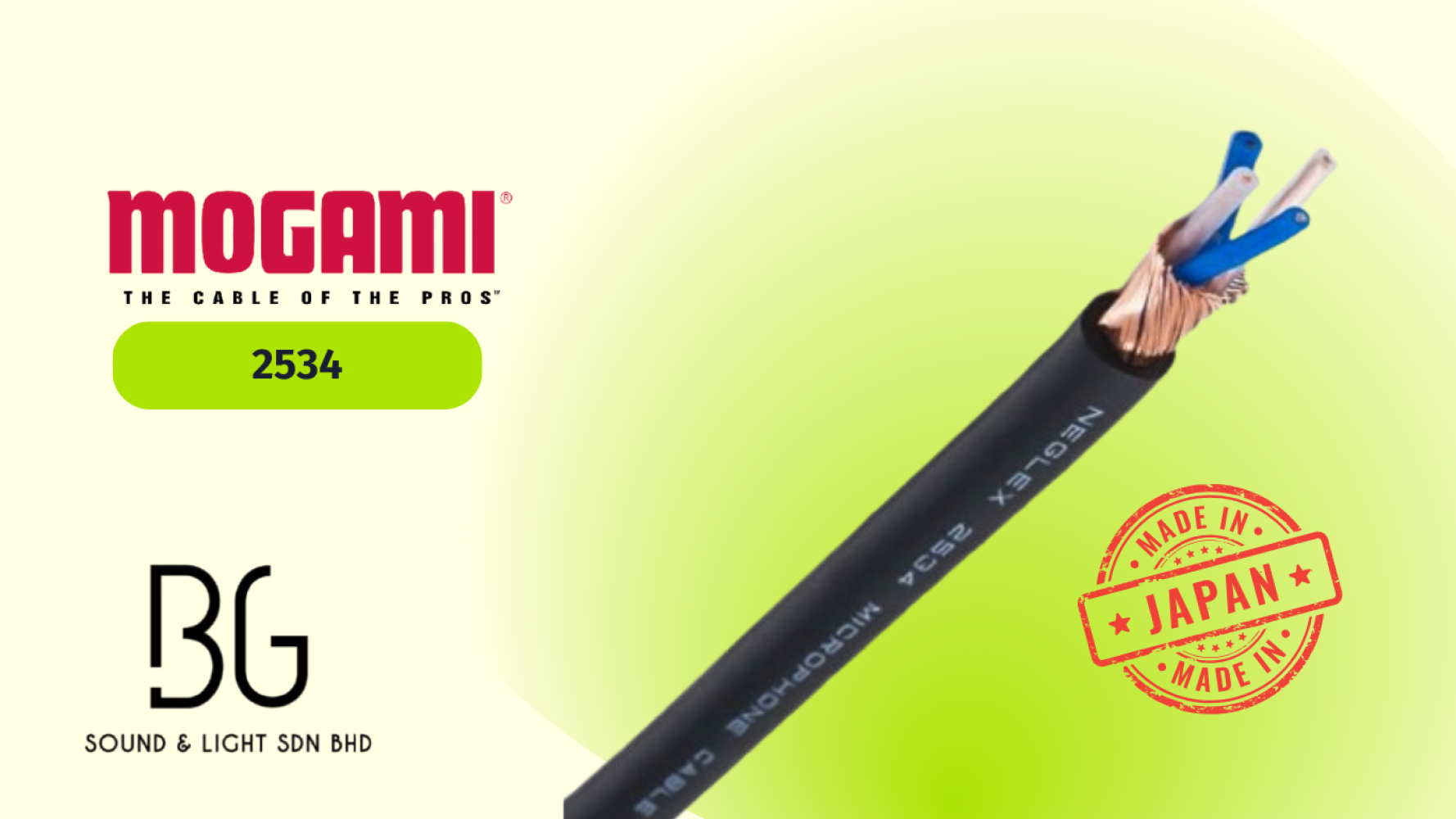

The Mogami 2534 Flexible Starquad Microphone Cable is the reference standard Neglex quad cable, trusted worldwide for both digital and analog recording. With its quad (4-conductor) design, it delivers 10–20dB better noise rejection compared to standard twisted pair cables, making it ideal for environments with high levels of RFI (Radio Frequency Interference) and EMI (Electromagnetic Interference).

The NEGLEX OFC conductors provide pristine signal clarity, while XLPE insulation ensures durability and prevents shrink-back during soldering. The spiral copper shield offers superior sound quality compared to foil or braided shields and simplifies termination. Compact, flexible, and reliable, the 2534 is widely used in professional studios, home studios, pre-amps, amps, and tape decks where absolute low noise and fidelity are critical.

Key Features (Bullet Points)

• Quad (4-conductor) Neglex microphone cable for maximum noise cancellation

• Improves signal-to-noise by 10–20dB compared to twisted pair designs

• Ideal for high-RF and high-EMI environments

• NEGLEX OFC conductors for accurate, transparent audio

• XLPE insulation ensures stable electrical performance and easy soldering

• Spiral copper shield for superior sound quality and easy termination

• Flexible PVC jacket, available in 10 colors for easy identification

• Popular choice for recording studios, home studios, and unbalanced equipment (preamps, amps, tape decks)

• Made in Japan with legendary Mogami quality

Specifications

• Part No.: W2534

• No. of Conductors: 4 (Starquad)

• Conductor Details: 20/0.12 OFC

• Conductor Size: 0.226 mm² (#24 AWG)

• Insulation Diameter: Ø 1.6 mm (0.063")

• Insulation Material: XLPE (Cross-Linked Polyethylene)

• Insulation Colors: Blue / Clear (Quad)

• Shield: Spiral bare copper, approx. 64/0.18A

• Jacket Diameter: Ø 6.0 mm (0.236")

• Jacket Material: Flexible PVC

• Jacket Colors: 10 colors available

• Roll Sizes: 50 m, 100 m, 200 m

• Weight (200 m Roll): 11 kg

Electrical & Mechanical Characteristics

• DC Resistance @ 20°C
  • Inner Conductor: 0.083 Ω/m (0.025 Ω/ft)
  • Shield: 0.012 Ω/m (0.0037 Ω/ft)

• Capacitance @ 1 kHz, 20°C (Partial C. Value)
  • K0: 65 pF/m (20 pF/ft)
  • K1: 13 pF/m (4 pF/ft)
  • K2: 4 pF/m (1.2 pF/ft)
  • Balanced Quad Connection: Cond.–Cond. = 97 pF/m (29.6 pF/ft), Cond.–Shield = 110 pF/m (33.6 pF/ft)

• Inductance (1 kHz, 20°C): 0.4 µH/m (0.12 µH/ft)

• Electrostatic Noise: 50 mV Max.

• Electromagnetic Noise: 0.15 mV Max.

• Microphonics @ 50KΩ Load: 430 mV Max.

• Voltage Breakdown: Must withstand DC 500V / 15 sec

• Insulation Resistance: 100,000 MΩ × m Min. @ DC 125V, 20°C

• Flex Life: 11,000 cycles

• Tensile Strength: 686 N

• Emigration: Non-emigrant to ABS

• Applicable Temperature: -20°C ~ +70°C (-4°F ~ +158°F)
