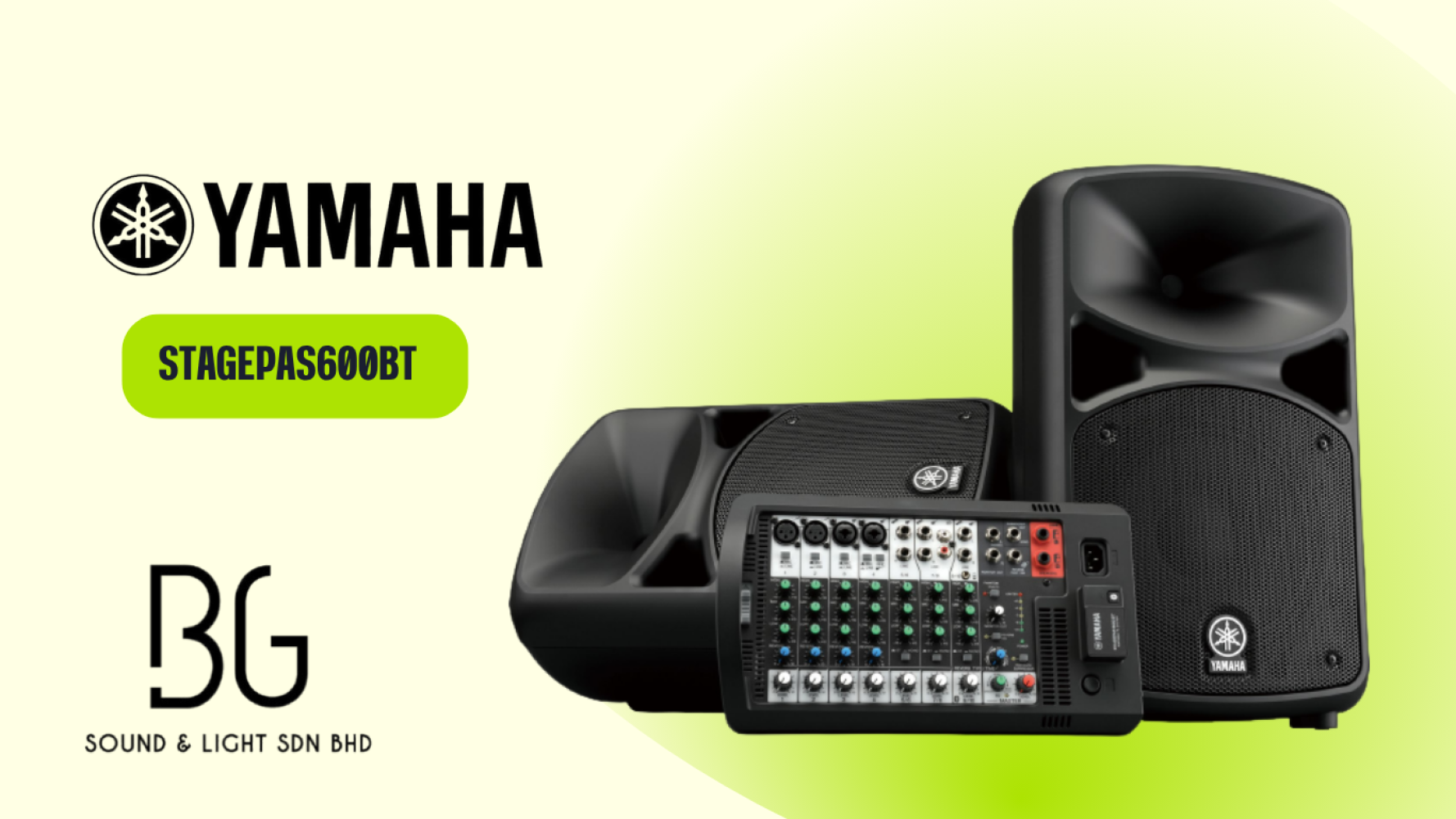

Yamaha STAGEPAS 600BT – 680W Portable PA System with 10-Channel Mixer, Bluetooth, Reverb & Feedback Suppressor

🔊 Product Introduction

The Yamaha STAGEPAS 600BT is a versatile and powerful 680W portable PA system designed for live performances, events, rehearsals, and presentations. Featuring two 10-inch two-way speakers and a detachable 10-channel powered mixer, it delivers rich sound with flexibility and control. With Bluetooth streaming, SPX digital reverbs, feedback suppression, and versatile EQ, the STAGEPAS 600BT ensures professional audio performance in a portable, easy-to-use package.

✅ Key Features

• 680W power output (340W + 340W) dynamic / 560W continuous

• 10-channel powered mixer (4 mono mic/line + 6 mono / 3 stereo line)

• Bluetooth 4.1 wireless audio streaming

• SPX digital reverb (4 types with parameter control)

• Onboard feedback suppressor for clear sound

• 1-Knob Master EQ™ with Virtual Bass Boost

• 3-band channel EQ + mid control (2.5 kHz)

• Hi-Z input for guitars/instruments

• Subwoofer output with auto HPF & monitor out

• Compact, detachable mixer design for easy transport

• Optional FC5 footswitch and BMS10A mic stand adaptor

⚙️ Technical Specifications

Outline

• Type: Powered mixer with 2 passive speakers

• Mixing channels: 10 (4 mono mic/line + 6 mono / 3 stereo line)

• Input channel functions: Hi-Z (CH4), ST/MONO switch (CH5/6–9/10)

• Output functions: Feedback suppressor, 1-Knob Master EQ™

• Bluetooth: Version 4.1, A2DP v1.2, range approx. 10m

• DSP: SPX digital reverb (4 programs, parameter control)

• Amplifier Power: 680W (Dynamic) / 560W (Continuous)

General

• Speaker type: Two-way bass reflex

• Frequency range (-10dB): 55 Hz – 20 kHz

• Coverage: H90° x V60°

• Components: LF 10" woofer, HF 1.4" compression driver

• Max SPL: 129 dB per speaker

• Power requirements: 100–240V AC, 50/60Hz

• Power consumption: 35W (Idle), 100W (1/8 Power)

• Dimensions: Speaker 335 × 545 × 319 mm, Mixer 348 × 197 × 135 mm

• Weight: 25.6 kg (2 speakers 10.9 kg each + mixer 3.8 kg)

• Accessories: Cover panel, power cord, 2x 6m speaker cables, ferrite cores, non-skid pads

• Options: Yamaha BMS10A mic stand adaptor, FC5 footswitch

• Handle: Top handle for portability
