🔊 Product Description

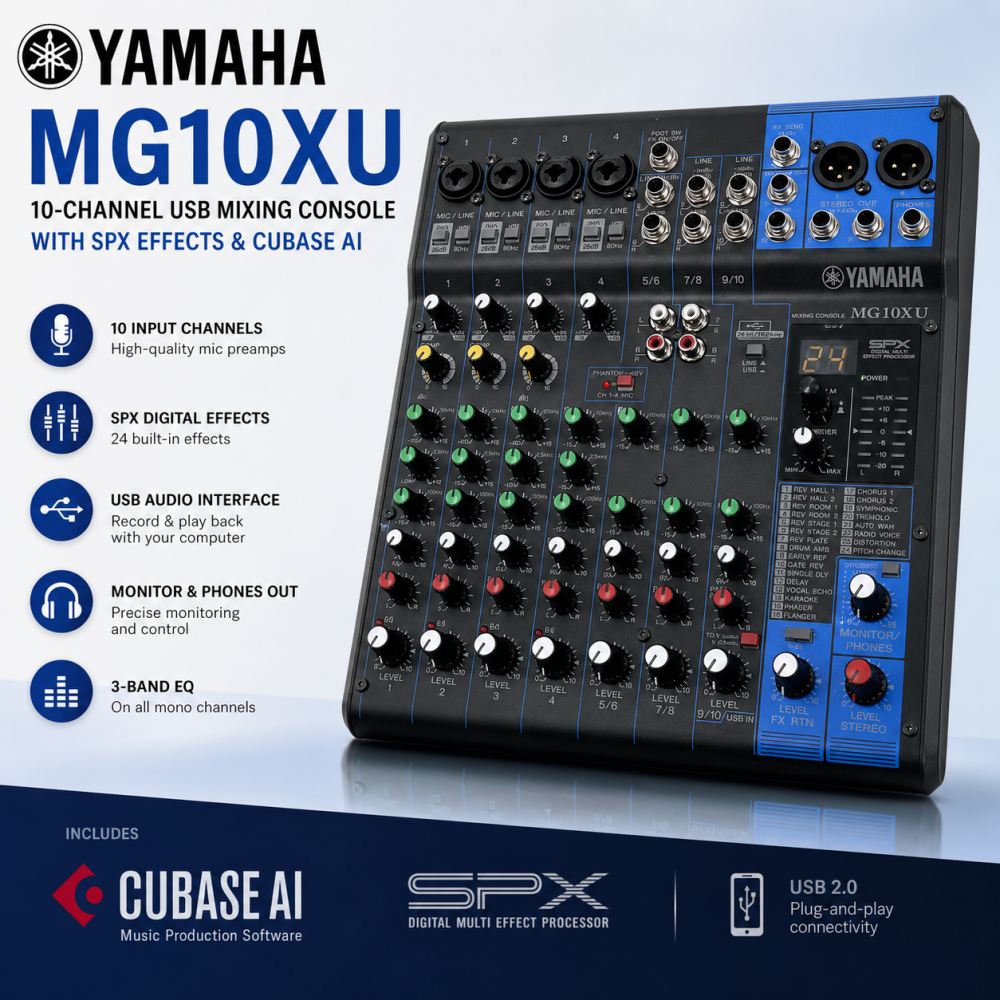

The Yamaha MG10XU is a compact 10-channel USB mixing console designed for professional and home audio applications. Equipped with Yamaha’s renowned D-PRE mic preamps, SPX digital effects, and 24-bit/192kHz USB audio interface, it ensures premium sound quality for live performances, studio recording, streaming, and podcasting. With its sturdy metal chassis and intuitive layout, the MG10XU offers durability, versatility, and professional-grade audio control in a portable format.

---

✅ Key Features / Bullet Points

• 10-Channel Mixing Console (4 Mic/Line + 3 Stereo Line inputs)

• D-PRE mic preamps with inverted Darlington circuit

• SPX digital effects: 24 high-grade programs

• 1-Knob compressors for easy dynamics control

• USB Audio Interface: 24-bit / 192 kHz, 2 in / 2 out

• Works with iPad (via Apple Camera Connection Kit / Lightning to USB Camera Adapter)

• Cubase AI DAW software included (download version)

• +48V Phantom Power for condenser microphones

• Rugged metal chassis for durability

• Compact and lightweight (2.1 kg) – portable and reliable

---

⚙️ Technical Specifications

Mixing Capability

• On-board processors: SPX algorithm, 24 programs

• USB I/O: 2 in / 2 out, 24-bit / 192 kHz

Input Channels

• Mono [Mic/Line]: 4

• Stereo [Line]: 3

Output Channels

• Stereo Out: 2

• Monitor Out: 1

• Phones: 1

• AUX Send: 1

Channel Functions

• PAD: 26 dB (Mono)

• HPF: 80 Hz, 12 dB/oct

• COMP: 1-Knob compressor (Threshold +22 dBu to -8 dBu, Ratio 1:1–4:1)

• EQ: High (10 kHz), Mid (2.5 kHz), Low (100 Hz), ±15 dB

• PEAK LED indicator

• Level Meter: 2 × 7-segment LED meter

Performance Specs

• Total Harmonic Distortion: 0.02% @ +14 dBu

• Frequency Response: 20 Hz – 48 kHz (+0.5/-1.0 dB)

• Equivalent Input Noise: -128 dBu

• Crosstalk: -83 dB

General

• Power Requirements: PA-10 adaptor (AC 38 VCT, 0.62A)

• Power Consumption: 22.9 W

• Dimensions (W×H×D): 244 × 71 × 294 mm

• Net Weight: 2.1 kg

• Accessories: AC adaptor, Owner’s Manual, Cubase AI download info
