🔊 Product Description:

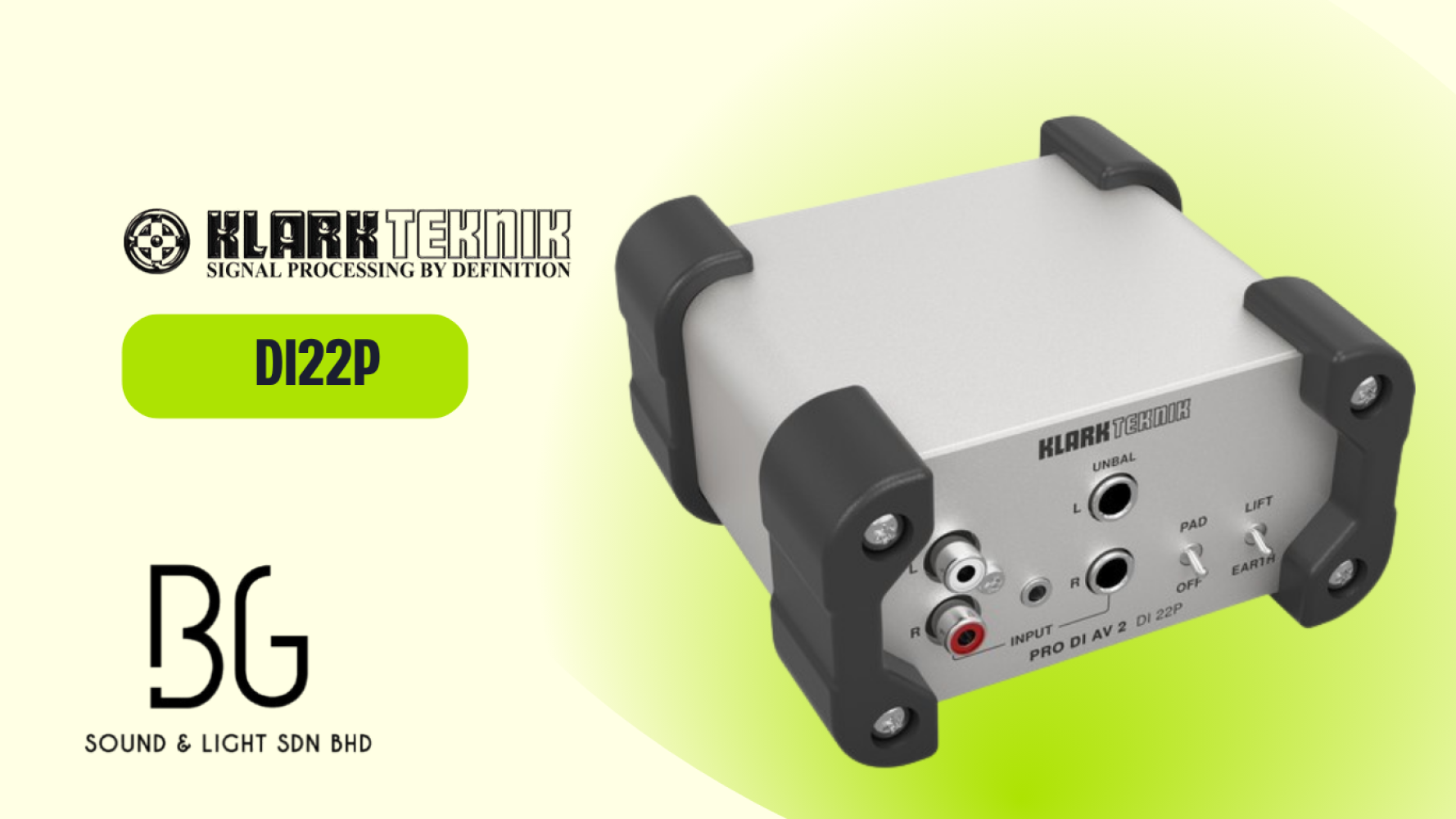

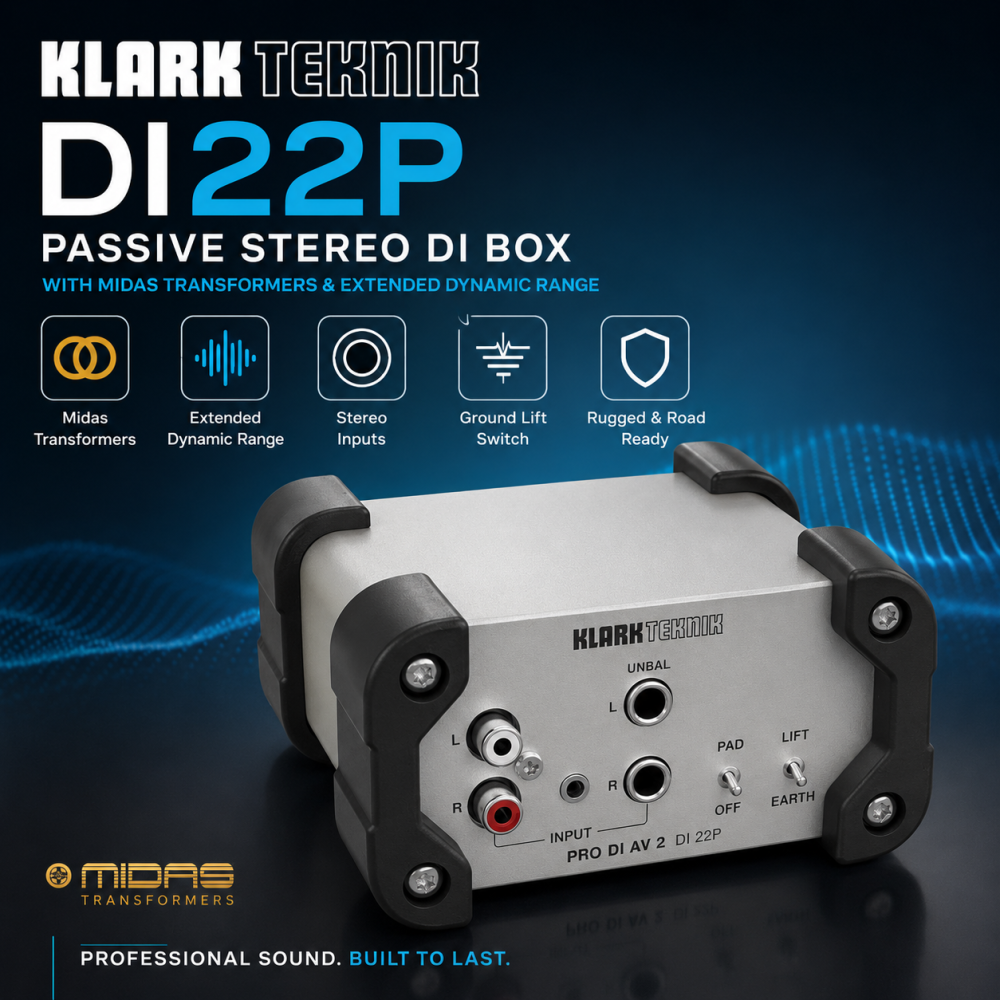

The Klark Teknik DI22P is a high-performance passive stereo DI (Direct Injection) box featuring premium Midas transformers for outstanding audio clarity and warmth. Designed for professional live sound, studio, and installation applications, it delivers extended dynamic range with minimal distortion for clean and transparent signal transfer. With rugged all-metal construction and fully passive operation, the DI22P is built to perform reliably in the most demanding environments.

✅ Key Features / Bullet Points:

• Premium passive stereo DI box with Midas transformers

• Extended dynamic range for pristine, high-quality sound

• Fully passive operation – no power required

• Rugged all-metal housing for durability in stage and studio use

• Independent ground lift switches for each channel

• Balanced XLR outputs and unbalanced ¼" inputs/link connections

• Ideal for keyboards, stereo instruments, and playback devices

⚙️ Basic Specifications:

• Type: Passive Stereo DI Box

• Transformers: 2 × Midas custom

• Frequency Response: 10 Hz – 90 kHz (+0/-1 dB)

• Dynamic Range: > 130 dB

• Inputs: 2 × ¼" TS (unbalanced, stereo)

• Outputs: 2 × Balanced XLR (mono L & R)

• Ground Lift: Yes, per channel

• Power: None required (passive)

• Dimensions (W × D × H): 150 × 110 × 60 mm

• Weight: 0.8 kg

📦 Packing Size & Weight:

• Box Dimensions: 170 × 130 × 80 mm

• Gross Weight: 1.0 kg
