📖 Product Introduction

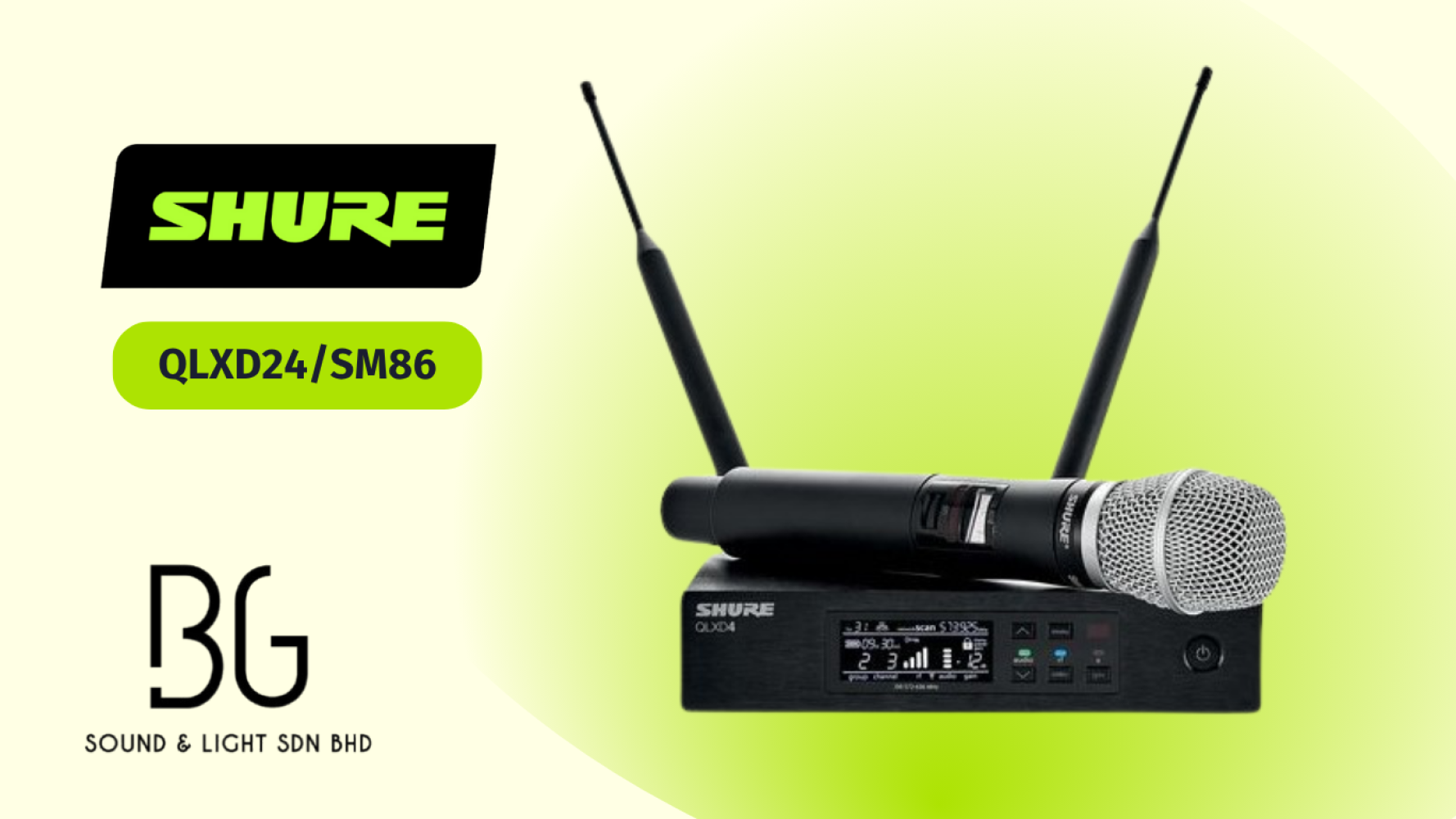

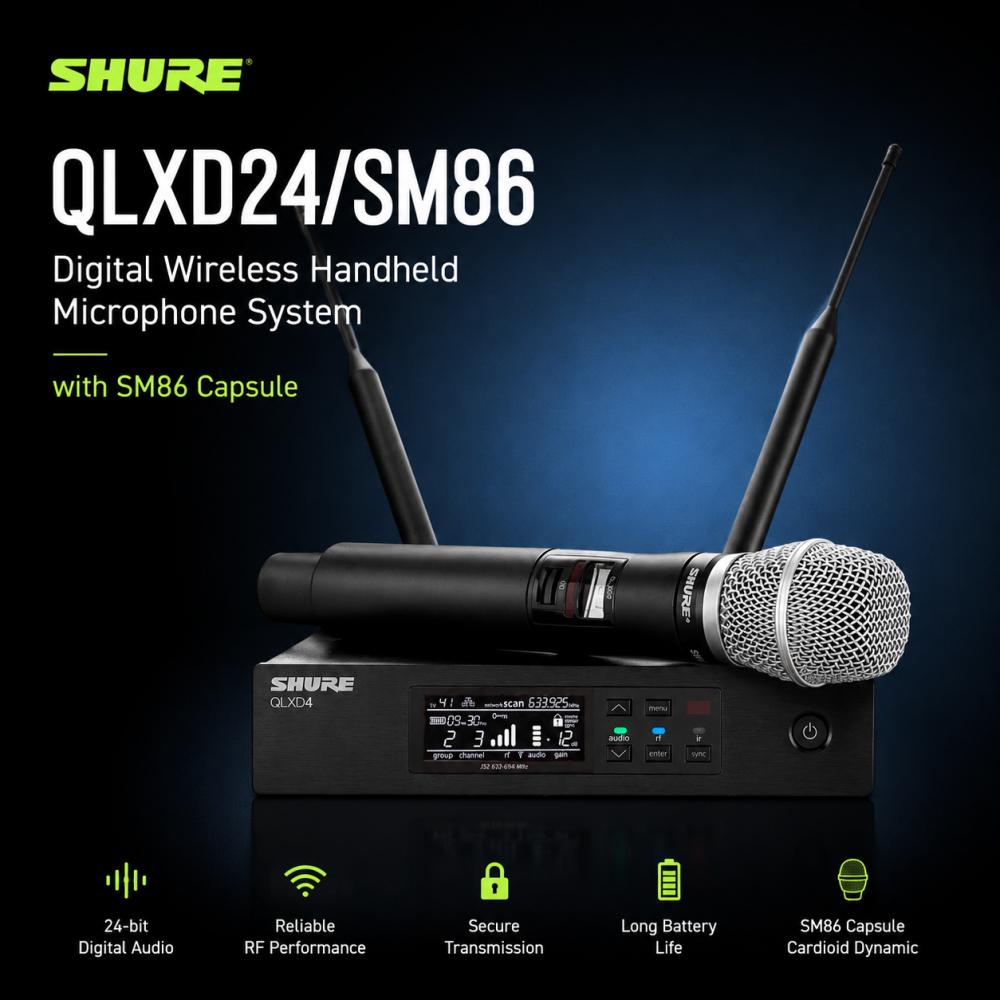

The Shure QLXD24/SM86 Digital Wireless Handheld Microphone System delivers legendary Shure reliability and premium vocal performance with the SM86 condenser capsule. Designed for lead and backup vocals, the SM86 provides a smooth extended frequency response and superior off-axis rejection, making it ideal for live performances, presentations, and houses of worship. With transparent 24-bit digital audio, AES-256 encryption, and an operating range of up to 100 meters, the QLXD24/SM86 ensures secure, clear, and professional-quality wireless performance.

✅ Key Features

• Transparent 24-bit digital audio with natural, studio-quality sound

• Equipped with SM86 condenser capsule for smooth and detailed vocal reproduction

• Cardioid polar pattern reduces background noise and minimizes feedback

• AES-256 encryption ensures secure, interference-free transmission

• Wide >120 dB dynamic range with no transmitter gain adjustment required

• 1 mW / 10 mW selectable RF output power for flexible operation

• Reliable 100 m (330 ft.) line-of-sight operating range

• Long battery life: 9 hrs (AA alkaline) or 10 hrs (Shure SB900B rechargeable)

• Backlit LCD with easy-to-navigate menu and selectable display modes

• Rugged all-metal transmitter housing for durability in live environments

• Frequency and power lockout to prevent accidental changes

• Interchangeable Shure microphone capsules (SM58®, Beta®, KSM series, etc.) supported

⚙️ Technical Specifications

• Form Factor: Handheld Wireless Microphone System

• Capsule Type: Shure SM86 (cardioid condenser)

• Frequency Response: 20 Hz – 20 kHz (capsule dependent)

• Dynamic Range: >120 dB

• Encryption: AES-256 secure transmission

• RF Output Power: 1 mW / 10 mW selectable

• Operating Range: Up to 100 m (330 ft.) line-of-sight

• Transmitter Housing: Rugged metal

• Battery Type: 2 × AA (up to 9 hrs) / Shure SB900B rechargeable Li-ion (up to 10 hrs)

• Display: Backlit LCD (group/channel, frequency, battery runtime)

• Audio Mute: Yes

• Charger Options: Docking charger with external contacts

• Detachable Antennas: No

• Frequency Diversity: No

• Interchangeable Capsules: Yes (SM86 included, compatible with other Shure capsules)
