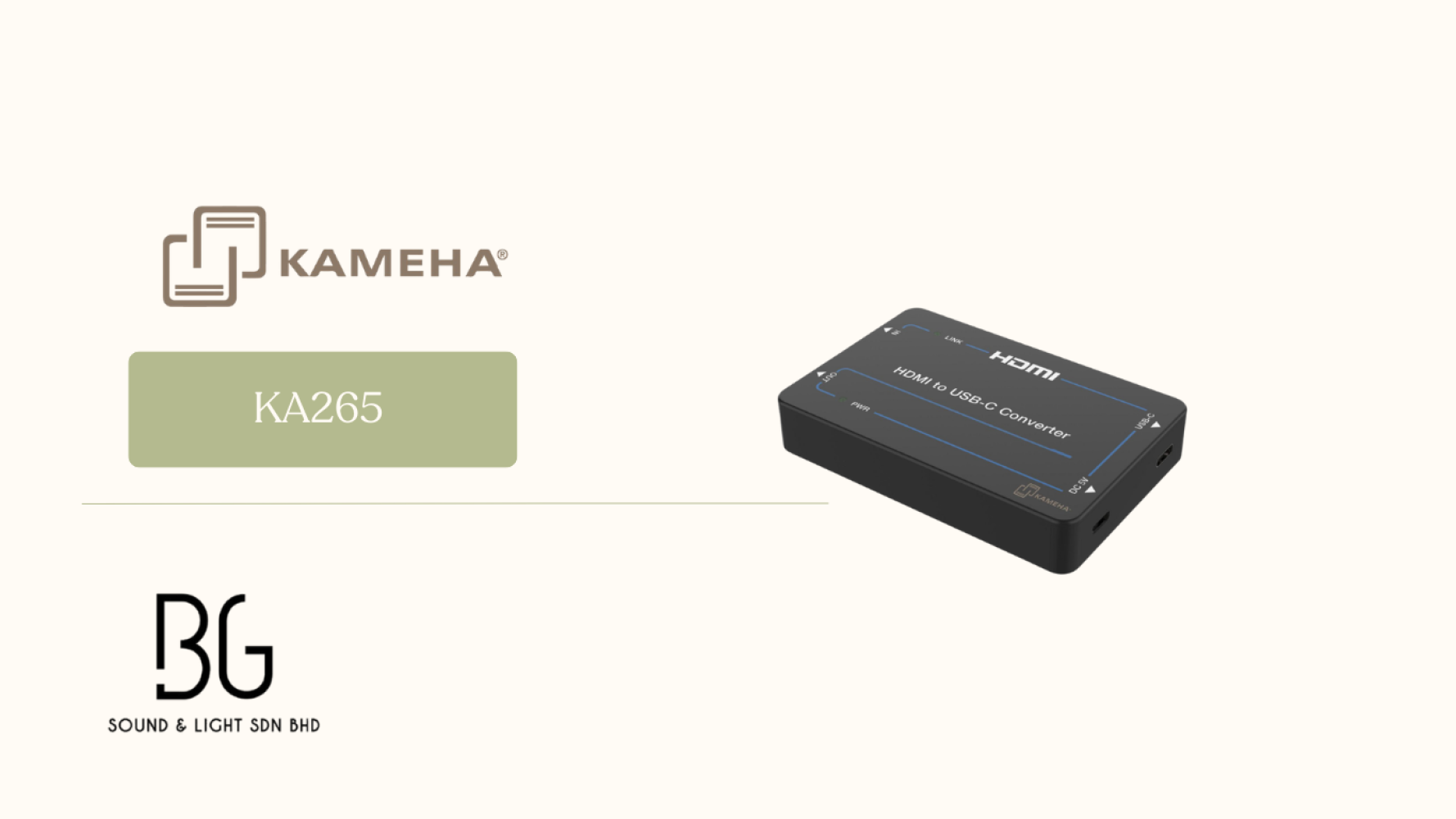

KAMEHA KA265 4K HDMI to USB-C Converter – HDMI 2.0b 18Gbps with Loop Out

---

🔷 Product Introduction

The KAMEHA KA265 HDMI to USB-C Converter is a professional-grade 4K video signal converter designed to convert HDMI input into USB-C output with ultra-high clarity up to 4K@60Hz 4:4:4.

Equipped with 1 HDMI Input, 1 HDMI Loop Out, and 1 USB-C Output, this converter ensures seamless signal conversion while maintaining signal monitoring through HDMI pass-through.

Supporting HDMI 2.0b, HDCP 2.2, and DP1.2 output, the KA265 is ideal for video conferencing, smart classroom systems, corporate presentation rooms, LED display systems, and professional AV integration projects.

It operates without external micro-USB power if the connected USB-C display provides power, making installation clean and flexible.

---

🔷 Product Description

The KA265 is designed to solve compatibility issues between HDMI source devices and USB-C display equipment.

It allows connection of:

• HDMI laptops

• Media players

• Video switchers

• Camera systems

• Conference room equipment

To:

• USB-C monitors

• Type-C projectors

• Smart interactive displays

• USB-C docking systems

With support for 18Gbps bandwidth and full 4K60 4:4:4 resolution, the device ensures smooth, high-quality video transmission without signal degradation.

Its HDMI loop output enables simultaneous monitoring or connection to additional displays.

---

🔷 Key Features & Selling Points

✅ True 4K@60Hz 4:4:4 Performance

• Full 18Gbps HDMI 2.0b bandwidth

• Crisp and smooth ultra HD video

✅ HDMI Loop Out

• Real-time monitoring

• Flexible dual display solution

✅ USB-C Output with DP1.2 Support

• Compatible with modern USB-C displays

• Supports 4K60 video output

✅ Advanced Audio Support

• Up to 7.1CH audio pass-through

• PCM

• Dolby TrueHD

• DTS-HD Master Audio

✅ Wide Compatibility

• HDMI 2.0b compliant

• HDCP 2.2 compliant

• DVI 1.0 compatible

✅ Plug & Play Design

• No driver required

• No configuration needed

• Compact and portable

---

🔷 Technical Specifications

Video

• Bandwidth: 594MHz / 18Gbps

• Resolution: Up to 4K@60Hz 4:4:4

• Color Depth: 8 / 10 / 12-bit

• Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0

Audio

• Up to 7.1CH pass-through

• PCM / Dolby TrueHD / DTS-HD Master Audio

Connections

• 1× HDMI Input

• 1× HDMI Loop Output

• 1× USB-C Output

Mechanical

• Size: 90 × 60 × 16 mm

• Weight: 49g

• Housing: Plastic enclosure

• Color: Black

Power

• USB 5V / 1A

• Max Consumption: 3.2W

• Operates without external power if USB-C display is powered

Environmental

• Operating Temperature: 0 – 40°C

• Storage Temperature: -20 – 60°C

• Humidity: 20 – 90% RH

---

🔷 Application Solutions

🎥 Video Conference Room Solution

Connect HDMI laptop → KA265 → USB-C display
Ideal for corporate meeting rooms.

🎓 Smart Classroom Setup

HDMI source → USB-C interactive panel
Maintains 4K clarity for teaching environments.

🏢 Commercial AV Integration

Suitable for LED walls, control rooms, and exhibition halls.

🖥 USB-C Monitor Upgrade

Convert existing HDMI output devices to work with modern Type-C displays.
