KAMEHA KA129 HDMI/VGA Wall Plate HDBaseT 70M 4K AV Intelligent Education System | 2x30W Amplifier & Control Panel

---

🔹 Product Introduction

The KAMEHA KA129 HDMI/VGA Wall Plate HDBaseT System is a multi-function intelligent AV solution designed for modern classrooms, meeting rooms, and smart conference environments.

It integrates:

• HDMI & VGA video extension

• Video switching

• System control

• Built-in audio amplification

• Interactive USB pass-through

• Relay & RS232 display control

Using advanced HDBaseT™ technology, it transmits uncompressed video and audio up to 70 meters over a single CAT5e/6/6A cable.

This is a complete all-in-one education AV system — not just an extender.

---

🔹 Product Description

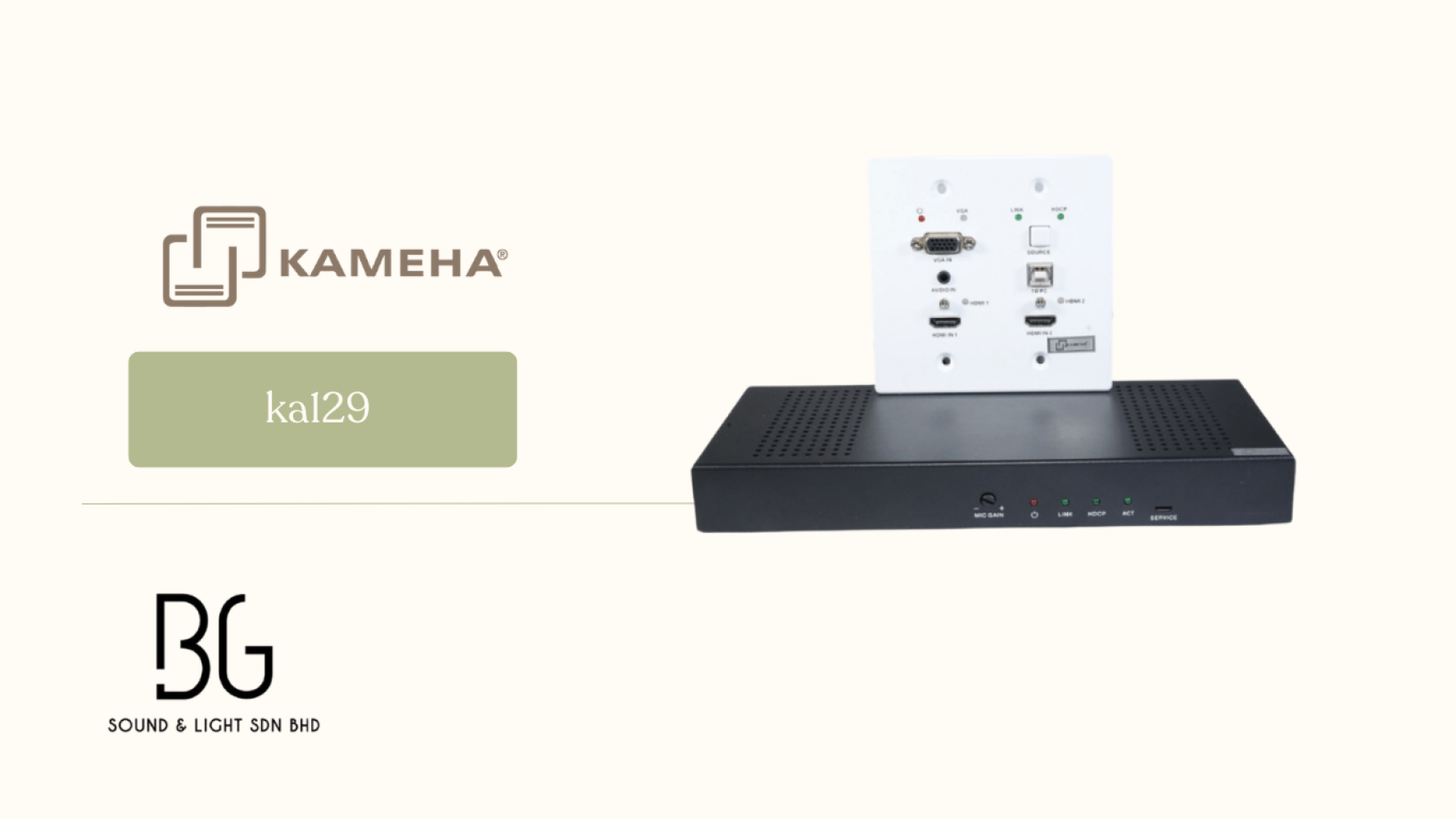

The KA129 system includes a Transmitter (wall plate) and Receiver unit.

Video Performance

• Supports up to 4K2K@30Hz

• 1080p@120Hz & 1080p 3D@60Hz

• HDMI 1.4b compliant

• HDCP 2.2 & HDCP 1.4 compatible

• Video bandwidth up to 10.2Gbps

• Transmission distance:

  • 70m @ 1920×1200@60Hz

  • 40m @ 4K@30Hz

Intelligent Control System

• Web GUI remote control

• Front panel button control

• HDMI/VGA input switching (Manual / Auto / Hybrid / Priority)

• Volume control via control panel

• Relay control for projector screen up/down

• RS-232 control for display power ON/OFF

Integrated Audio System

• 2x30W amplifier output @4 ohms

• Microphone input

• Analog audio output

• Supports LPCM, Dolby TrueHD, DTS-HD Master Audio

• Up to 7.1 channel HD audio pass-through

Interactive Display Support

USB pass-through allows interactive whiteboard or touchscreen display to communicate back to the transmitter.

---

🔹 Key Features & Benefits

✅ All-in-One AV Education System
✅ 2x HDMI + 1x VGA Input Switching
✅ 4K@30Hz & 1080p@120Hz Support
✅ HDBaseT 70M Over Single CAT6
✅ Built-in 2x30W Amplifier
✅ Microphone Input Support
✅ Web GUI & Panel Control
✅ RS232 Display Control
✅ Relay Projector Screen Control
✅ Interactive Display USB Pass-Through
✅ Professional Metal Enclosure
✅ Designed for Smart Classroom & Conference Room

---

🔹 Application Solutions

🏫 Smart Classroom System

• Teacher laptop HDMI/VGA input

• Microphone voice amplification

• Projector + screen control

• Interactive whiteboard integration

🏢 Conference Room AV System

• 4K display connection

• Wall plate presentation system

• Centralized AV control

• Volume & input selection panel

🎓 Multimedia Education Platform

• Lecture hall AV integration

• Campus HDBaseT infrastructure

• Audio & video centralized control

🛍 Corporate Training & Seminar Room

• Presentation switching

• Screen automation

• Professional AV installation
