🔹 Product Introduction

The KAMEHA KA041PRO RX HDMI Extender Receiver 100M with IR is the upgraded receiver unit designed for use with the KA041PRO transmitter system. Featuring ultra-low screen latency of only 0.2 seconds, it delivers significantly smoother performance compared to the older KA041 (0.8 seconds latency).

Built with HDMI Over IP technology, this receiver enables long-distance Full HD 1080P audio and video transmission up to 100–120 meters over a single CAT5e/CAT6 cable while supporting IR pass-through control.

⚠ Important: KA041PRO RX is NOT compatible with KA041.

---

🔹 Product Description

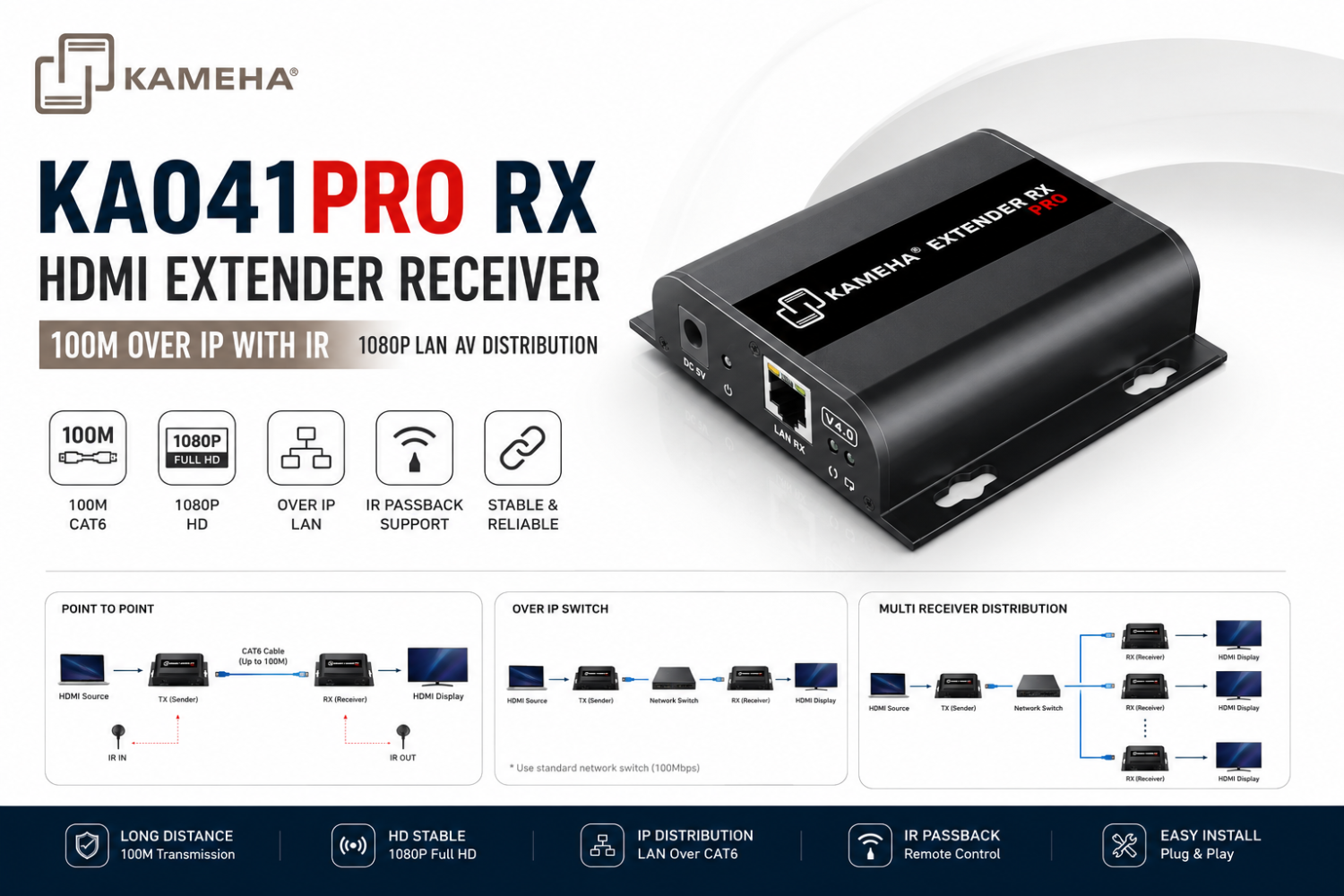

The KA041PRO RX HDMI LAN Receiver is designed for scalable AV distribution systems. It allows HDMI signals to be received over standard network infrastructure via router or network switch.

Supporting 1 transmitter to up to 253 receivers, it is ideal for digital signage networks, commercial display systems, shopping malls, control rooms, and educational campuses.

With plug-and-play functionality, installation is quick and requires no manual IP configuration. It works with existing LAN networks and does not affect internet connectivity.

If you need a professional HDMI extender receiver over IP with IR control, KA041PRO RX is a reliable and efficient solution.

---

🔹 Key Features / Bullet Points

✔ HDMI Extender Receiver 100M Over IP
✔ Ultra Low Latency – Only 0.2 Seconds
✔ Supports IR Pass Through (20~60KHz)
✔ HDMI Over Single CAT5 / CAT5e / CAT6 Cable
✔ Extend & Split HDMI via LAN (Router / Switch)
✔ 1 Transmitter + Up to 253 Receivers
✔ Compatible with Existing Network Infrastructure
✔ Does Not Affect Internet Performance
✔ Plug & Play – No Manual Setup Required
✔ Supports 1080P Full HD Resolution
✔ Professional AV Distribution Solution

---

🔹 Technical Specifications

HDMI Signal: HDCP 1.4 Compatible

Supported Resolutions:
480i@60Hz
480p@60Hz
576i@50Hz
576p@50Hz
720p@50/60Hz
1080i@50/60Hz
1080p@50/60Hz

Network Cable: UTP/STP CAT5 / CAT5e / CAT6

Transmission Distance:
Up to 120 meters for 1080P Full HD over single CAT6

IR Signal Support: 20~60KHz

Working Temperature: 0℃ – 60℃

Power Supply: DC5V / 1A

Power Consumption:
TX: 3.5W
RX: 3W

Dimensions:
130(W) × 84(D) × 23.2(H) mm (Each Unit)

Weight:
TX: 250g
RX: 200g

Color: Black

---

🔹 Application & Solutions

The KAMEHA KA041PRO RX HDMI Over IP Receiver is ideal for:

✅ Digital Signage Distribution Systems
✅ Shopping Mall Display Networks
✅ Conference Room Multi-Screen Setup
✅ Hotel IPTV & TV Distribution
✅ Campus & Educational AV Systems
✅ Control Room & Monitoring Centers
✅ Commercial LED & LCD Display Projects
✅ Large-Scale AV Integration

It provides a scalable, low-latency solution for long-distance HDMI signal reception in professional environments.

---

🔹 Why Upgrade to KA041PRO RX?

Feature	KA041	KA041PRO RX
Screen Latency	0.8 seconds	0.2 seconds (Improved)
Performance	Standard	Faster & More Stable
Compatibility	–	❌ Not compatible with KA041
