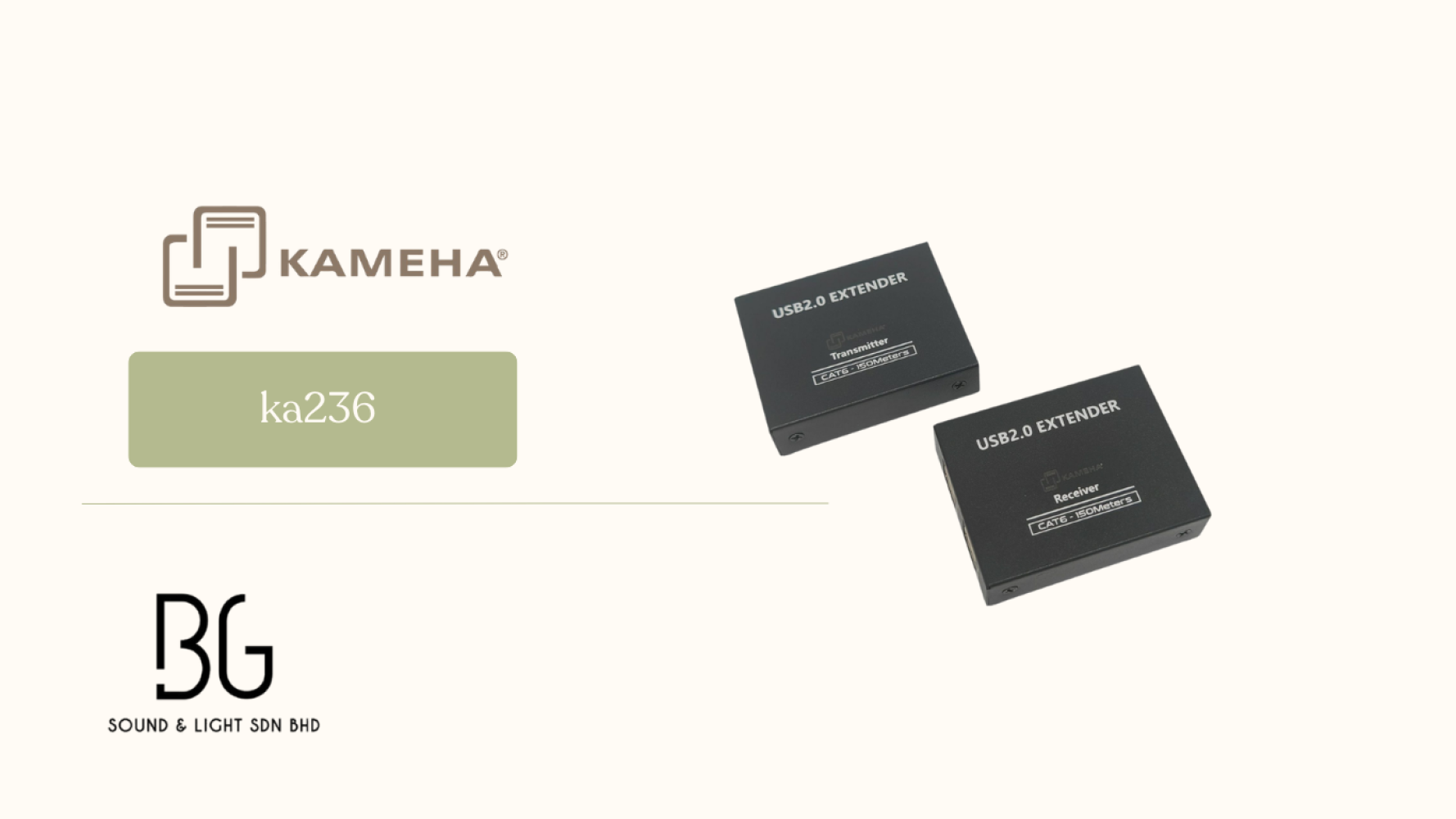

KAMEHA KA236 USB 2.0 Extender 150M with 4-Port Hub | USB over CAT5e/6/7 Long Distance

---

🔹 Product Introduction

The KAMEHA KA236 USB 2.0 Extender 150 Meter is a professional long-distance USB transmission solution designed for AV integration, CCTV systems, industrial control, KVM extension, meeting rooms, and commercial installations.

Using a single CAT5e/6/7 network cable, this USB extender enables stable one-to-one USB 2.0 signal transmission up to:

• 100 meters via CAT5e

• 150 meters via CAT6/6A/7

It features 4 USB-A ports on the receiver side, making it ideal for connecting multiple USB devices such as cameras, printers, touch panels, and keyboards over long distances.

---

🔹 Product Description

The KA236 USB Extender supports USB 2.0 High-Speed (480Mbps) and is backward compatible with USB 1.1 and USB 1.0 devices.

Designed for reliable and high-performance data transmission, it supports:

• Gigabit switch relay for extended network transmission

• USB hub connection

• Hot-plug functionality

• Automatic USB speed detection (High/Full/Low speed)

• Lightning, surge, and ESD protection

The transmitter is powered directly by the source device (no external power required), while the receiver uses a 5V/1A adapter.

This makes the KA236 an efficient and flexible USB over CAT6 solution for professional system integrators in Malaysia.

---

🔹 Key Features / Bullet Points

✅ USB 2.0 High-Speed (480Mbps) support
✅ Backward compatible with USB 1.1 / 1.0
✅ Long-distance transmission up to 150 meters
✅ 4-Port USB Hub on receiver
✅ Compatible with CAT5e / CAT6 / CAT6A / CAT7
✅ Supports Gigabit switch extension
✅ Plug-and-play installation
✅ Hot-plug USB device support
✅ Compatible with Windows, MacOS, Linux & Android
✅ Lightning, surge & ESD protection
✅ Industrial-grade metal enclosure
✅ Ideal for CCTV, AV systems & KVM extension

---

🔹 Technical Specifications

USB Performance

• USB 2.0 (480Mbps High-Speed)

• Full-Speed: 12Mbps

• Low-Speed: 1.5Mbps

Transmission Distance

• CAT5e: ≤100m

• CAT6/6A/7: ≤150m

Supported Devices

• Printer

• USB Camera

• Scanner

• USB Flash Drive

• Keyboard & Mouse

• Touch Screen

• KVM devices

Connectivity

USB Ports:

• 4× USB-A input ports

• 1× USB-A output port

Network Cable Standard:

• CAT5e / CAT6 / CAT6A / CAT7

• IEEE-568B compliant

Power

• TX: Powered by source device

• RX: DC 5V / 1A

• Power Consumption: ≤2W

Mechanical

• Housing: Iron

• Color: Black

• Dimensions: 76 × 60 × 21 mm

• Weight: TX 123g / RX 128g

Operating Environment

• Working Temp: -20°C to 60°C

• Storage Temp: -30°C to 70°C

• Humidity: 0–90% (non-condensing)

Protection

• ESD Protection: ±8KV Air / ±4KV Contact

• Lightning & Surge Protection

• IEC61000-4-2 compliant

---

🔹 Recommended Applications / Solutions

✔ KVM Extension Systems

Extend keyboard, mouse, and USB control devices up to 150 meters.

✔ CCTV & Security Monitoring

Long-distance USB camera transmission.

✔ Meeting Room & Conference Systems

Extend USB cameras and touch panels for video conferencing.

✔ Industrial Control Systems

Reliable USB signal extension in factory environments.

✔ Gaming & Esports Setup

Stable long-distance USB device connectivity.
