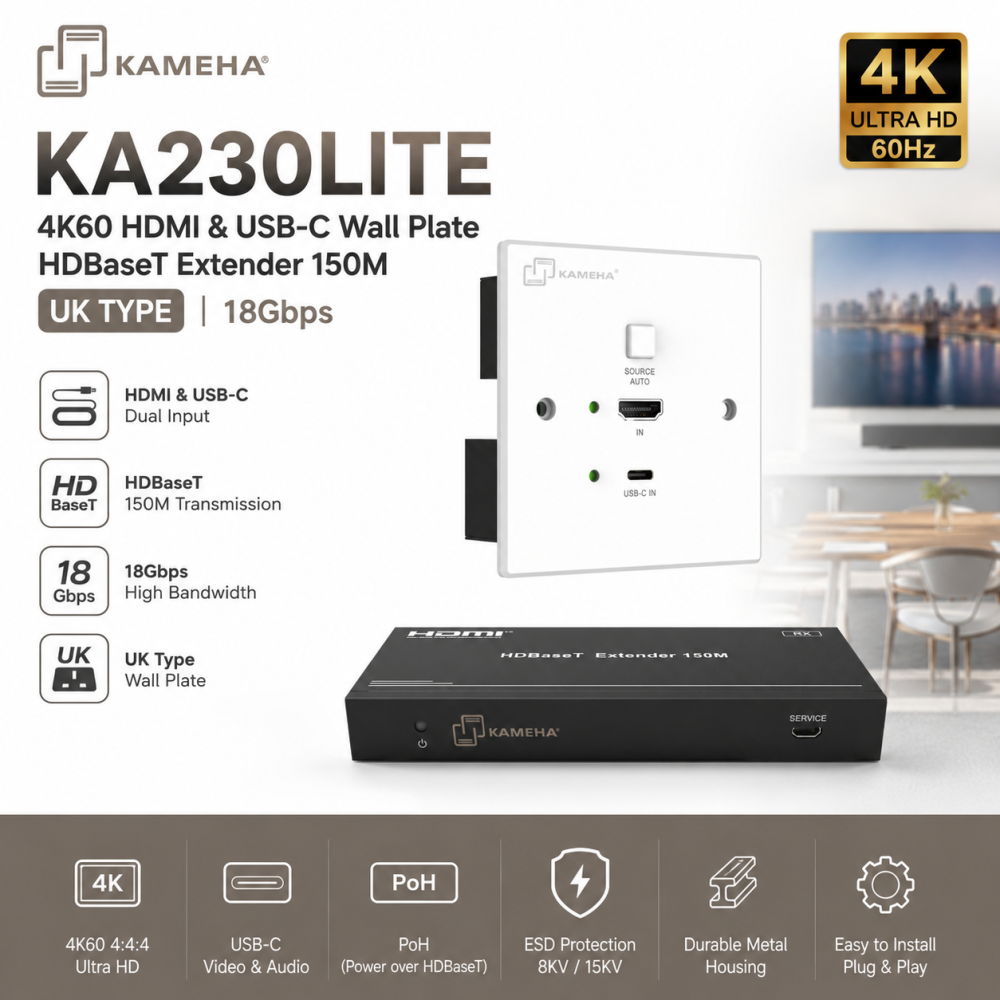

KAMEHA 4K60 HDMI & USB-C Wall Plate HDBaseT Extender 150M | 18Gbps 86mm UK Type with Bi-Directional PoC

---

🔹 Product Introduction

The KAMEHA 4K60 HDMI & USB-C Wall Plate HDBaseT Extender is a professional long-distance AV transmission solution designed for modern meeting rooms, conference systems, multimedia classrooms, and corporate boardrooms.

This 1-Gang UK 86×86mm wall plate transmitter supports:

• 1× HDMI input

• 1× USB-C input

• 1× HDBaseT output

It extends 4K2K@60Hz (4:4:4) Ultra HD video up to 120 meters, and 1080P@60Hz up to 150 meters, using a single CAT6/6A cable.

With bi-directional PoC, IR, RS-232 and CEC support, this extender delivers a complete HDMI over CAT6 solution for professional AV installations in Malaysia.

---

🔹 Product Description

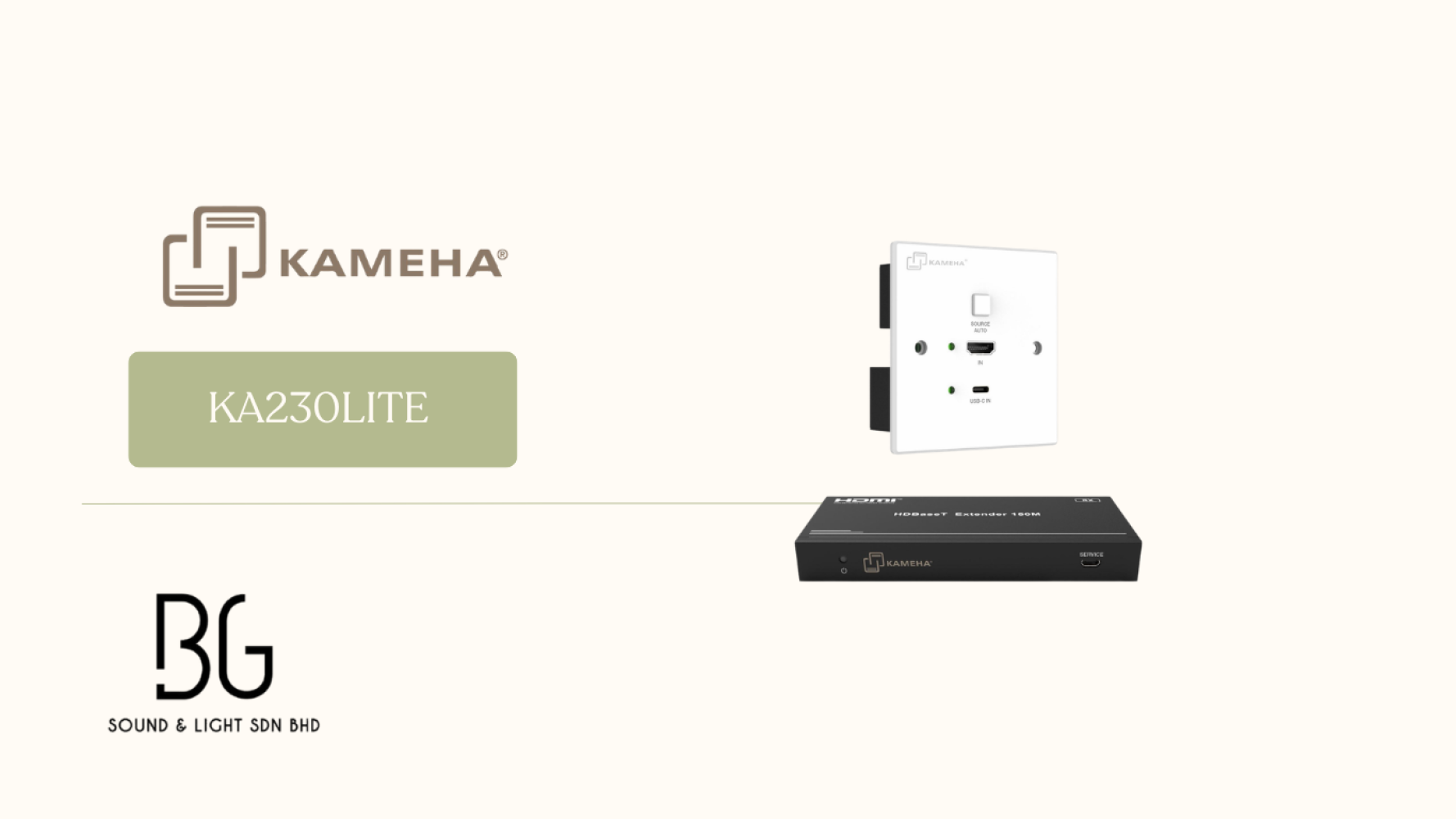

This HDMI & USB-C HDBaseT extender system consists of:

• Wall Plate Transmitter (TX)

• Compact Receiver (RX)

The wall transmitter supports both manual and automatic input switching, making it ideal for shared meeting spaces where users connect different devices.

The receiver features:

• 1× HDMI output

• 1× 3.5mm stereo audio de-embedding output

With 18Gbps bandwidth and HDMI 2.0b compliance, it supports:

• 4K@60Hz 4:4:4

• HDR / HDR10 / HDR10+

• Dolby Vision / HLG

• LPCM 7.1CH, Dolby TrueHD & DTS-HD Master Audio

The extender ensures stable long-distance signal transmission for professional AV integrators and system installers.

---

🔹 Key Features / Bullet Points

✅ 4K2K@60Hz 4:4:4 Ultra HD support
✅ HDMI 2.0b & HDCP 2.2 compliant
✅ 18Gbps high video bandwidth
✅ 1× HDMI + 1× USB-C wall plate inputs
✅ Auto switching & manual switching modes
✅ 120M (4K60) / 150M (1080P) over CAT6/6A
✅ 3.5mm stereo audio de-embedding output
✅ Bi-directional IR, RS-232 & CEC pass-through
✅ Bi-directional PoC (Power over Cable)
✅ HDR / Dolby Vision / HLG support
✅ 7.1CH HD audio support
✅ Compact metal enclosure
✅ Clean 86×86mm UK standard wall installation

---

🔹 Technical Specifications

Video & Compliance

• HDMI 2.0b

• HDCP 2.2

• Video Bandwidth: 18Gbps

• Max Resolution: 3840×2160@60Hz 4:4:4

• Color Depth: 8/10/12-bit

• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG

Transmission Distance

• 120m for 4K60

• 150m for 1080P60

• Single CAT6/6A cable

Audio Support

• LPCM 2.0–7.1CH

• Dolby TrueHD

• DTS-HD Master

• Analog L/R stereo output

Control & Connectivity

Transmitter (Wall Plate):

• 1× HDMI IN

• 1× USB-C IN

• 1× HDBaseT OUT

• RS-232

• IR IN / OUT

Receiver:

• 1× HDMI OUT

• 1× 3.5mm AUDIO OUT

• RS-232

• IR IN / OUT

Mechanical

• Wall Plate Size: 86mm × 86mm

• Metal enclosure

• Power: 24V/1A (Bi-directional PoC supported)

• Operating Temp: 0°C – 40°C

---

🔹 Recommended Applications / Solutions

✔ Meeting Room AV System

Wall-mounted HDMI & USB-C input panel for clean and professional installations.

✔ Video Conference System

Supports USB-C laptops and long-distance 4K signal transmission.

✔ Multimedia Classroom

Stable HDMI extension to projector or LED display.

✔ Corporate Boardroom

Auto-switching input for multiple presenters.

✔ Control & Automation Integration

RS-232 and IR pass-through for centralized AV control systems.
