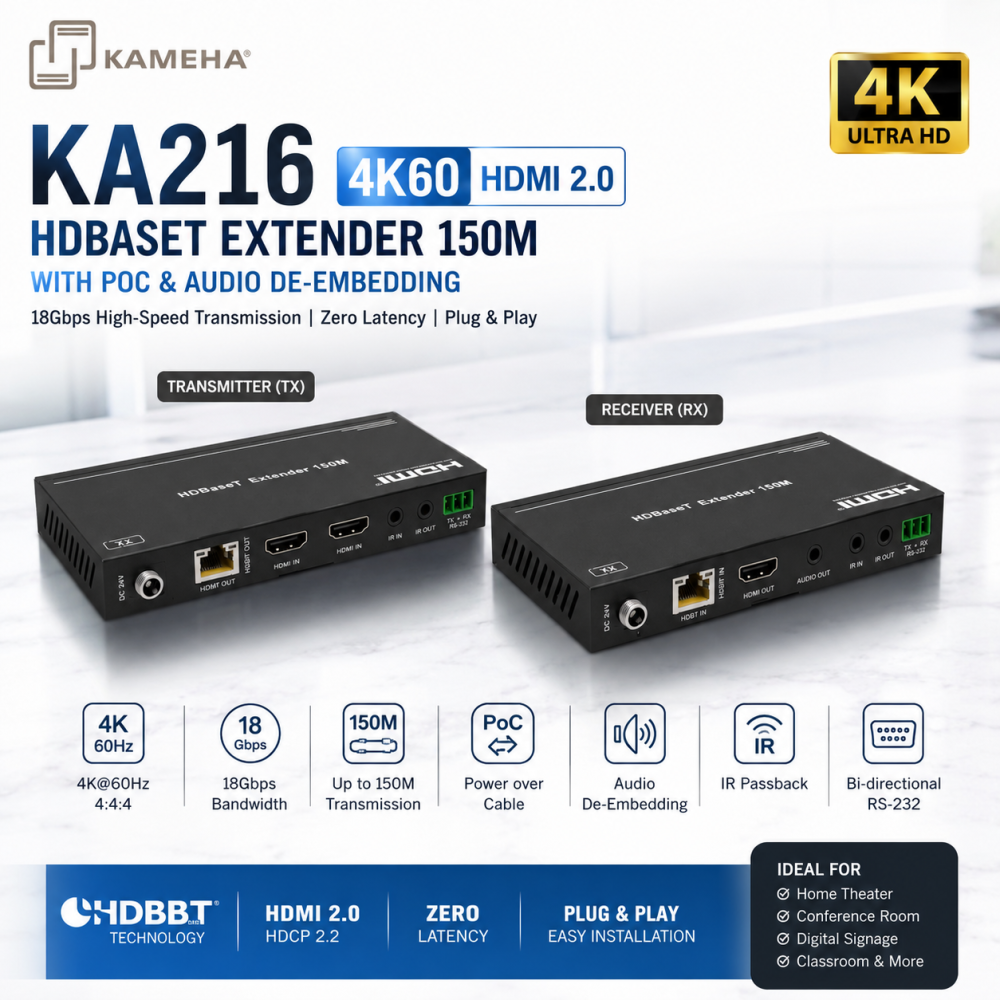

KAMEHA HDMI Extender HDBaseT POC 18Gbps 150 Meter | 4K60 4:4:4 HDMI 2.0 over CAT6 with Audio De-Embedding

---

🔹 Product Introduction

The KAMEHA HDMI Extender HDBaseT 18G 150M is a professional-grade 4K HDMI over CAT6 solution designed for long-distance AV signal transmission in meeting rooms, auditoriums, LED display systems, control rooms, and commercial installations.

Supporting 18Gbps bandwidth and 4K2K@60Hz 4:4:4 resolution, this extender delivers ultra-clear video and high-fidelity audio up to 150 meters (492ft) using a single CAT5e/6 cable.

With built-in PoC (Power over Cable), bi-directional IR, RS-232 pass-through, HDMI loop-out, and analog audio de-embedding, it provides a complete professional AV extension solution.

---

🔹 Product Description

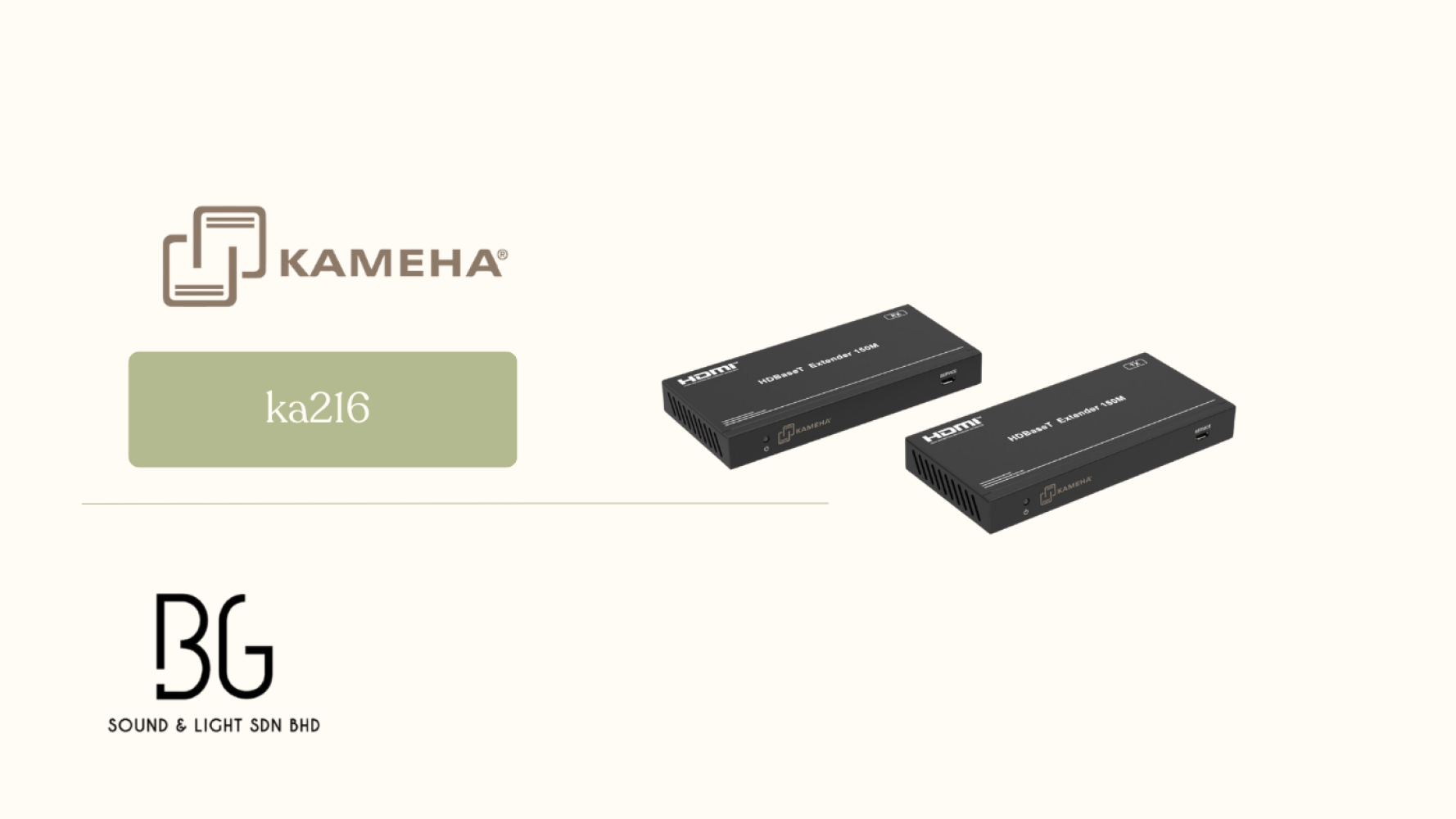

This HDMI HDBaseT extender kit consists of:

• Transmitter (TX) Unit

• Receiver (RX) Unit

The transmitter captures HDMI input signals and transmits video, audio, IR, RS-232, and CEC signals over a single CAT cable. The receiver restores the signal to HDMI output while allowing full control communication between source and display devices.

Designed for reliability and performance, the KA216 supports:

• 4K@60Hz 4:4:4 Ultra HD

• HDR, HDR10+, Dolby Vision & HLG

• HDCP 2.2 / 1.4 compliance

• 18Gbps HDMI 2.0 bandwidth

It also features:

• HDMI loop output on transmitter for local monitoring

• Analog stereo audio de-embedding (L/R output) on receiver

• Bi-directional IR pass-through

• RS-232 and CEC pass-through

• PoC (Power over Cable) – only one power adapter required

This makes it an ideal HDMI extender for professional AV integrators in Malaysia.

---

🔹 Key Features / Bullet Points

✅ 4K@60Hz 4:4:4 HDMI 2.0 (18Gbps) support
✅ HDBaseT transmission up to 150 meters (1080p)
✅ Up to 120 meters for 4K signal
✅ Single CAT5e/6 cable solution
✅ HDCP 2.2 / HDCP 1.4 compliant
✅ HDMI loop-out on transmitter
✅ Analog L/R audio de-embedding on receiver
✅ Bi-directional IR pass-through
✅ RS-232 & CEC control pass-through
✅ HDR / HDR10+ / Dolby Vision / HLG supported
✅ PoC (Power over Cable) – single power supply
✅ Compact metal enclosure design
✅ Ideal for meeting rooms, LED walls & conference systems

---

🔹 Technical Specifications

Video & Compliance

• HDMI 2.0

• HDCP 2.2 / 1.4

• DVI 1.0 compatible

• Video Bandwidth: 18Gbps

• Max Resolution: 3840×2160@60Hz 4:4:4

• HDR Formats: HDR10+, Dolby Vision, HLG

Transmission Distance

• 120M for 4K2K signal

• 150M for 1080P signal

• Single CAT5e/6 cable

Audio

• HDMI embedded audio

• Analog stereo L/R output (receiver)

Control

• Bi-directional IR pass-through

• RS-232 pass-through

• CEC pass-through

Power

• PoC supported

• Single power adapter required

---

🔹 Recommended Applications / Solutions

✔ Meeting Room AV System

Extend HDMI from table input panel to projector or display up to 150M.

✔ LED Wall & Digital Signage

Stable 4K signal transmission for large LED screen installations.

✔ Control Room / Command Center

RS-232 and IR control for centralized system management.

✔ Auditorium & Conference Hall

Long-distance HDMI over CAT6 without signal loss.

✔ Commercial & Hospitality AV

Perfect for hotels, shopping malls, and exhibition centers.
