Details

---

Product Introduction

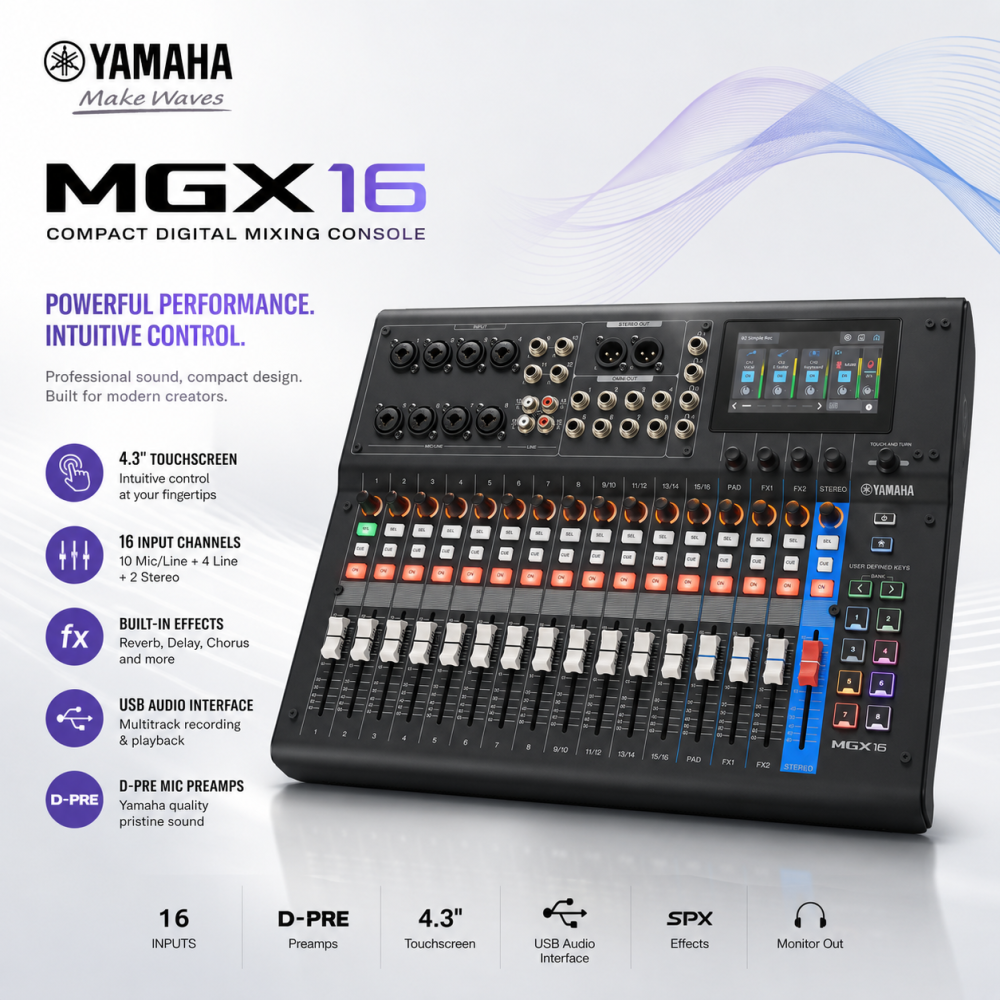

Yamaha MGX16 is a portable compact digital mixing console designed for users who need more channels, greater flexibility, and professional performance in a streamlined format. Delivering superb sound quality, fast setup, and intuitive touchscreen control, MGX16 is ideal for live sound, installations, recording, streaming, and education environments.

---

Product Description

As the larger standard model in the MGX Series, MGX16 expands channel capacity while maintaining the simplicity and portability that modern users demand. Featuring a 15 + 1 non-motorized fader configuration, a 4.3-inch touchscreen, and dedicated control knobs, it allows quick access to essential mixing functions with minimal learning curve.

With 8 mono mic/line inputs, multiple stereo channels, high-resolution USB audio, onboard DSP, and microSD multitrack recording, MGX16 is built to handle complex mixing tasks reliably. Assistive tools such as Auto Gain, Clip Safe, Scene Recall, and Simple/Standard modes help ensure consistent results, making MGX16 suitable for both experienced engineers and first-time digital mixer users.

---

Key Features / Bullet Points

• Compact digital mixing console with professional performance

• 15 + 1 fader configuration (non-motorized faders)

• 4.3-inch touchscreen with five control knobs

• Input channels:

  • 8 mono + 4 stereo

  • 1 Sound Pad

  • 2 FX returns

• Bus structure: 1 Stereo + 8 Mix buses

• Local inputs:

  • 8 × Combo (Mic/Line)

  • 4 × TRS (Line)

  • 4 × RCA (Line)

• Local outputs:

  • 2 × XLR

  • 8 × TRS Phone

  • 4 × Headphone outputs

• USB MAIN: 22 in / 22 out (32-bit / 96 kHz)

• USB SUB: 2 in / 2 out (16-bit / 48 kHz)

• microSD card recording:

  • 16-track recording / 2-track playback

  • Up to 24-bit / 96 kHz

• Bluetooth audio input (Bluetooth 5.0, A2DP)

• Built-in DSP processor for professional sound and latency-free monitoring

• Assistive features: Auto Gain, Clip Safe, Simple / Standard Mode, Scene Recall

• Includes Cubase AI, WaveLab Cast, FX Suite, and AC power adapter (PA-300C)

---

Solutions / Applications

Yamaha MGX16 is an ideal solution for:

• Live sound mixing for bands, events, and worship

• Installed sound systems in halls, schools, and conference rooms

• Recording studios and music production

• Streaming, hybrid events, and broadcast applications

• Education, training rooms, and lecture capture

• AV rental and mobile production systems

With its expanded channel count, compact design, and intelligent digital features, MGX16 enables users to handle demanding audio setups efficiently while maintaining consistent, professional sound quality.
