Product Introduction

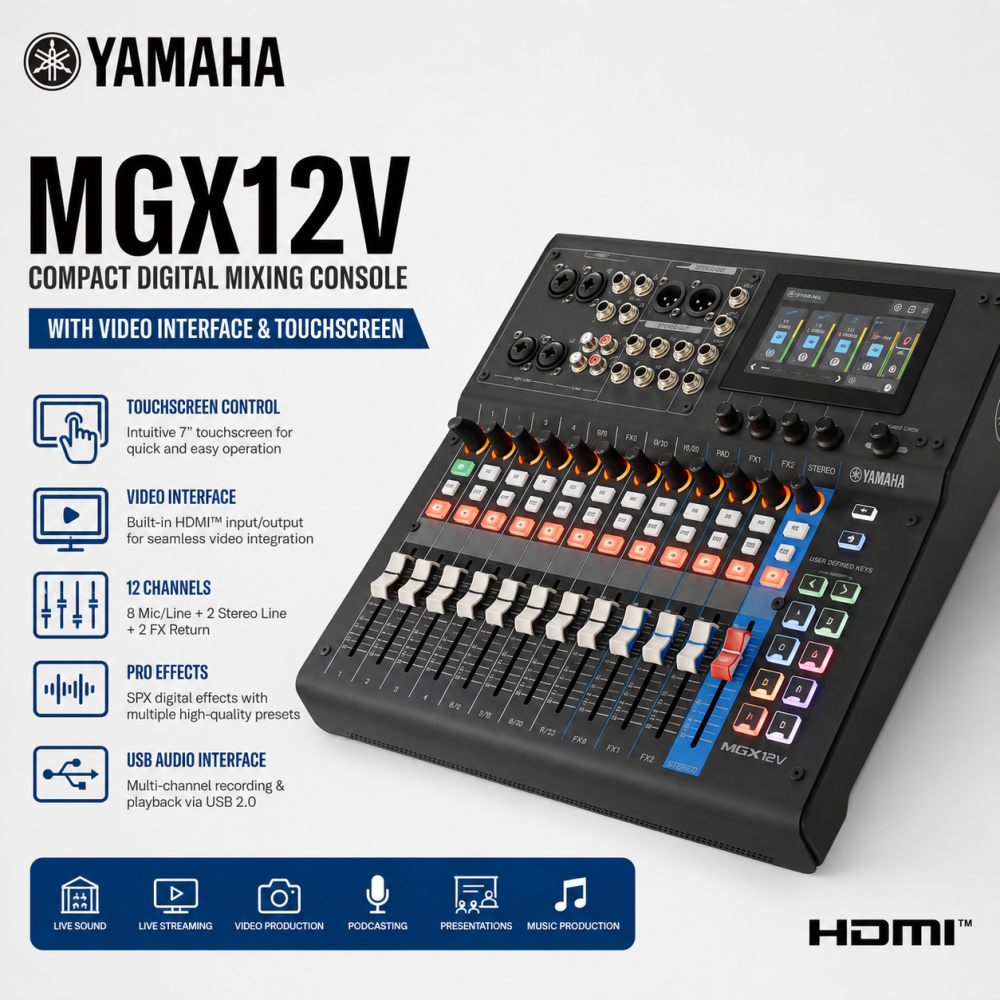

Yamaha MGX12V is a compact digital mixing console with built-in video interface, designed for modern audio-visual workflows. Combining Yamaha’s renowned sound quality with touchscreen control and HDMI video integration, MGX12V is the ideal solution for live sound, streaming, hybrid meetings, education, and content creation where audio and video must work seamlessly together.

---

Product Description

The MGX12V expands the MGX digital mixer lineup by adding HDMI video/audio input with capture capability and real-time passthrough, making it a powerful all-in-one AV mixing solution. Its 11 + 1 non-motorized fader layout, 4.3-inch touchscreen, and intuitive control knobs allow fast operation with minimal setup time, even for users new to digital mixers.

With flexible input routing, high-resolution USB audio, onboard DSP, and microSD multitrack recording, MGX12V supports both live production and recording workflows. Advanced assistive features such as Auto Gain, Clip Safe, Scene Recall, and Simple/Standard modes help ensure stable, professional results in any environment. Whether for streaming studios, conference rooms, or live events, MGX12V delivers reliable performance in a compact, portable form.

---

Key Features / Bullet Points

• Compact digital mixing console with video interface

• 11 + 1 fader configuration (non-motorized faders)

• 4.3-inch touchscreen with five dedicated control knobs

• Input channels:

  • 4 mono + 4 stereo

  • 1 Sound Pad

  • 2 FX returns

• Bus structure: 1 Stereo + 8 Mix buses

• Local inputs:

  • 4 × Combo (Mic/Line)

  • 4 × TRS (Line)

  • 4 × RCA (Line)

• Local outputs:

  • 2 × XLR

  • 6 × TRS Phone

  • 4 × Headphone outputs

• USB MAIN: 18 in / 18 out (32-bit / 96 kHz)

• USB SUB: 2 in / 2 out (16-bit / 48 kHz)

• microSD card recording:

  • 16-track recording / 2-track playback

  • Up to 24-bit / 96 kHz

• Bluetooth audio input (Bluetooth 5.0, A2DP)

• HDMI-to-USB video/audio input with capture function

• Real-time HDMI passthrough for external displays

• Built-in DSP for professional sound and latency-free monitoring

• Assistive features: Auto Gain, Clip Safe, Simple/Standard Mode, Scene Recall

• Includes Cubase AI, WaveLab Cast, FX Suite, and AC power adapter (PA-300C)

---

Solutions / Applications

Yamaha MGX12V is an ideal solution for:

• Live streaming and video production studios

• Hybrid meetings, conferencing, and webinars

• Houses of worship with audio-visual systems

• Education, lecture capture, and training rooms

• Content creation, podcasting, and online courses

• Live sound with integrated video workflows

• AV rental and mobile production systems

By integrating professional audio mixing and video capture in one compact console, MGX12V simplifies system setup, reduces external equipment, and enables users to deliver consistent, high-quality audio and video with confidence.
