Details

---

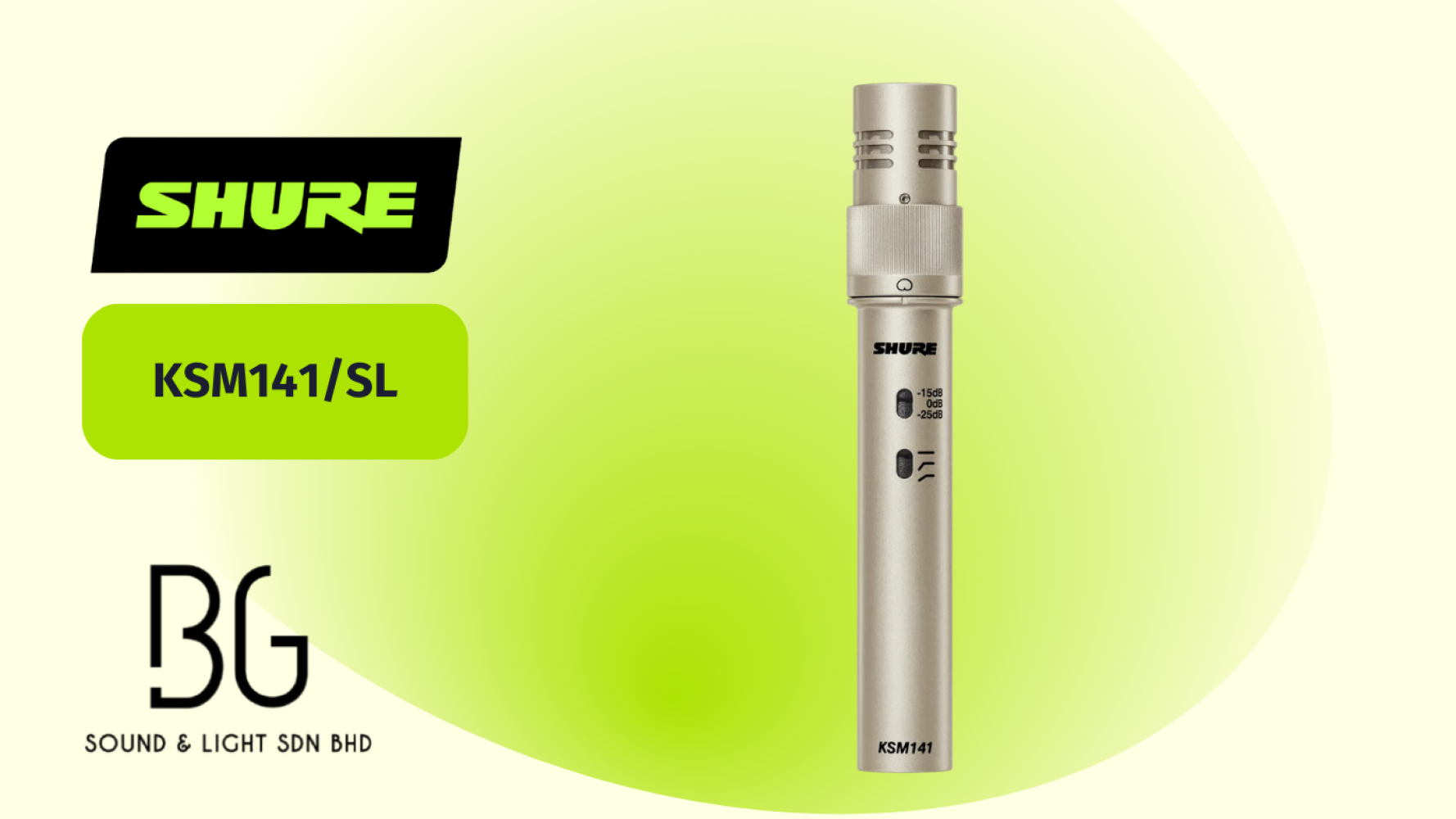

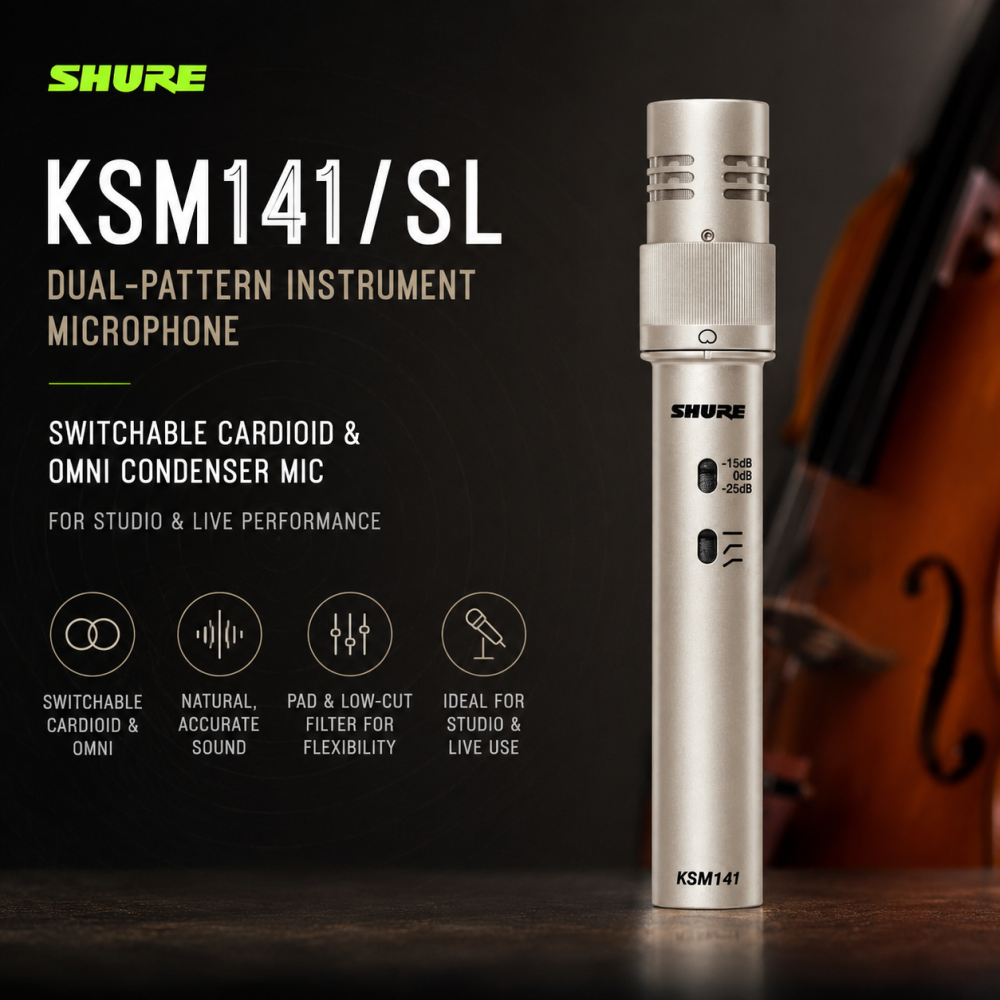

The Shure KSM141/SL is a dual-pattern condenser instrument microphone featuring a mechanical polar pattern switch that allows easy transition between cardioid and true omnidirectional modes. With its ultra-thin 24K gold-layered Mylar diaphragm, transformerless preamplifier, extended frequency response, and low self-noise, the KSM141 is ideal for both studio recording and live applications.

It handles extremely high SPLs with a three-position pad and includes a subsonic filter to eliminate low-frequency rumble caused by mechanical vibrations.

---

Key Features (Bullet Points)

• Dual-Pattern Flexibility – Switchable cardioid and omnidirectional polar patterns

• Gold-Layered Mylar Diaphragm – 2.5 μm, 24K gold for superior transient response

• Transformerless Preamplifier – Class A discrete design for transparency & minimal distortion

• Extended Frequency Response – Smooth response from 20 Hz–20 kHz

• Low Self-Noise – Captures every detail with clarity

• High SPL Handling – Three-position pad (0 dB, -15 dB, -25 dB) for extreme sound levels

• Subsonic Filter – Eliminates vibrations below 17 Hz

• Three-Position Low-Frequency Filter – Reduces background noise & proximity effect

• Rugged Construction – Suitable for studio or stage use

• Versatile Applications – Acoustic, wind, percussion, strings, orchestral, and ambient recording

---

Specifications

• Weight: 156 g / 0.344 lbs

• Dimensions (H × W × D): 146 × 20 × 20 mm / 5.748 × 0.787 × 0.787 in

• Transducer Type: Condenser

• Polar Pattern: Cardioid, Omnidirectional (switchable)

• Frequency Response: 20 Hz – 20 kHz

• Sensitivity: -37 dBV/Pa (14.10 mV)

• Equivalent Self-Noise: 14 dB(A)

• Maximum SPL:

  • 5000 Ω load: 170 dB (Pad OFF) / 145 dB (Pad ON)

  • 2500 Ω load: 164 dB (Pad OFF) / 139 dB (Pad ON)

  • 1000 Ω load: 159 dB (Pad OFF) / 134 dB (Pad ON)

• Impedance: 150 Ω

• Low-Cut Filter: Yes, 3-position

• Attenuation Pad: Yes, 0/-15/-25 dB

• Output Connector: 3-Pin XLR

• Interchangeable Capsule: No

• Phantom Power Requirement: 11–52 VDC
