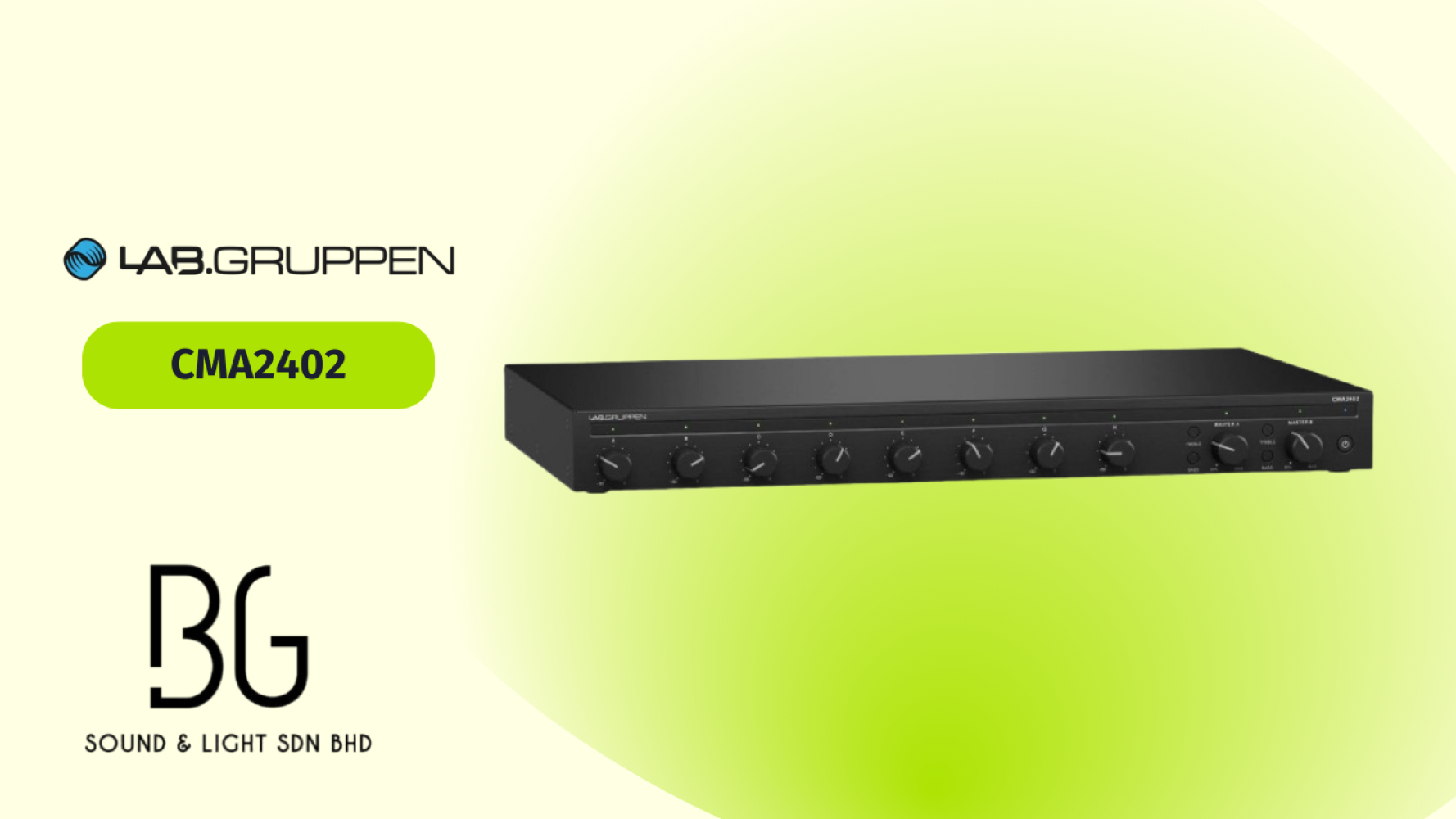

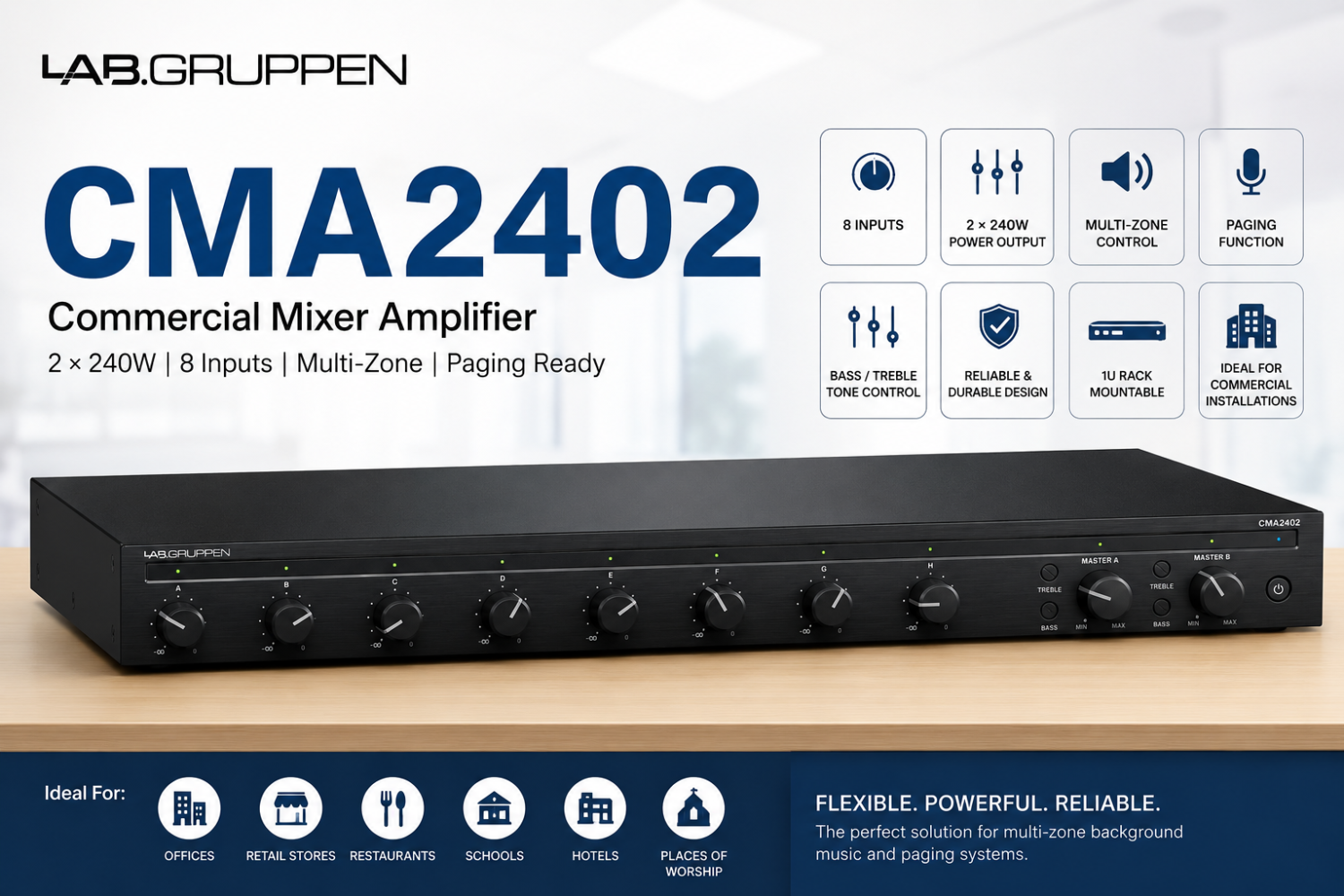

Lab Gruppen CMA2402 – 2 × 240W Commercial Mixer Amplifier with 8 Inputs for Multi-Zone Installed Sound & Paging Systems

Lab Gruppen CMA2402 – 2 × 240W Commercial Mixer Amplifier with 8 Inputs for Multi-Zone Installed Sound & Paging Systems

Category: Power Amplifier

Specifications
Weight(gram)
6800
Dimension
50 cm (Length) x 38 cm (Width) x 14 cm (Height)
Details

🔊 Product Description:
The Lab Gruppen CMA2402 is a dual-channel 2 × 240W commercial mixer amplifier built for high-performance multi-zone installed audio systems. Ideal for restaurants, hotels, retail stores, offices, schools, and conference halls, it delivers powerful, clear sound for both background music and paging. With 8 mic/line inputs and independent zone control, it offers exceptional flexibility for managing multiple audio sources. Supporting low-impedance (4/8Ω) and constant voltage (70/100V) outputs, the CMA2402 is suitable for both distributed and localized sound reinforcement. Engineered with Class-D amplifier technology and Energy Star certification, it ensures reliable, efficient operation with minimal heat generation.

✅ Key Features / Bullet Points:

  • 2 × 240W dual-channel commercial mixer amplifier for installed sound

  • 8 mic/line inputs with independent level controls for multi-source flexibility

  • Supports 4/8Ω and 70/100V constant voltage speaker systems

  • Energy Star certified for eco-friendly and cost-effective operation

  • High-efficiency Class-D amplification with low heat output

  • Independent zone output control for multi-zone setups

  • Bass and treble tone controls for sound adjustment

  • Built-in protection: thermal, overload, short circuit

  • Ideal for background music, announcements, and paging systems

⚙️ Basic Specifications:

  • Type: 2-Channel Commercial Mixer Amplifier

  • Output Power: 2 × 240W RMS @ 4/8Ω or 70/100V line

  • Amplifier Class: Class-D

  • Inputs: 8 × Mic/Line (XLR/TRS), 1 × Aux RCA

  • Outputs: Euroblock / terminal block

  • Tone Controls: Bass/Treble

  • Frequency Response: 80 Hz – 16 kHz

  • Protection: Thermal, overload, short circuit

  • Dimensions (W × D × H): 430 × 300 × 90 mm (2U rack mountable)

  • Weight: 5.8 kg

📦 Packing Size & Weight:

  • Box Dimensions: 500 × 380 × 140 mm

  • Gross Weight: 6.8 kg
