🔊 Product Description:

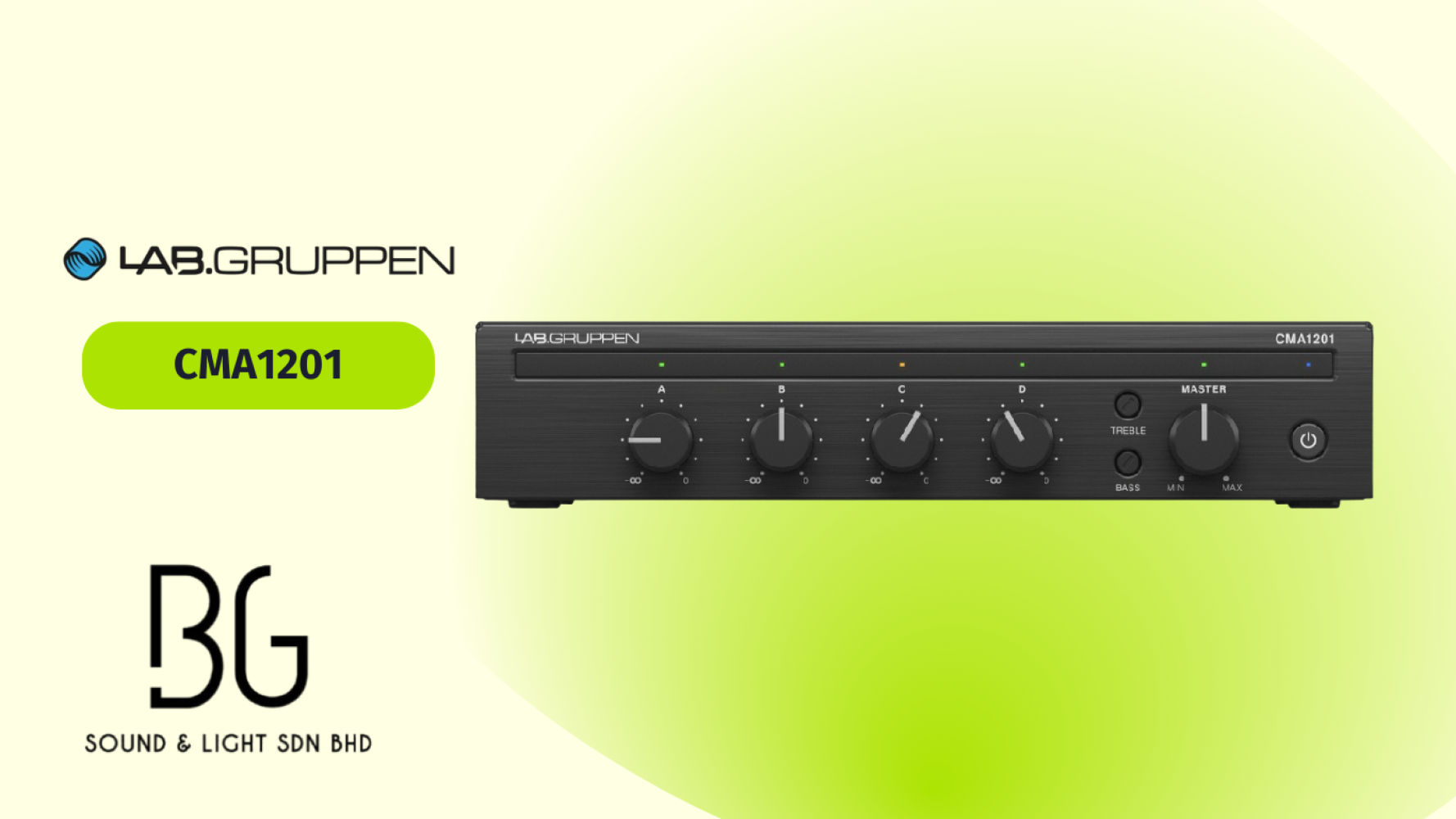

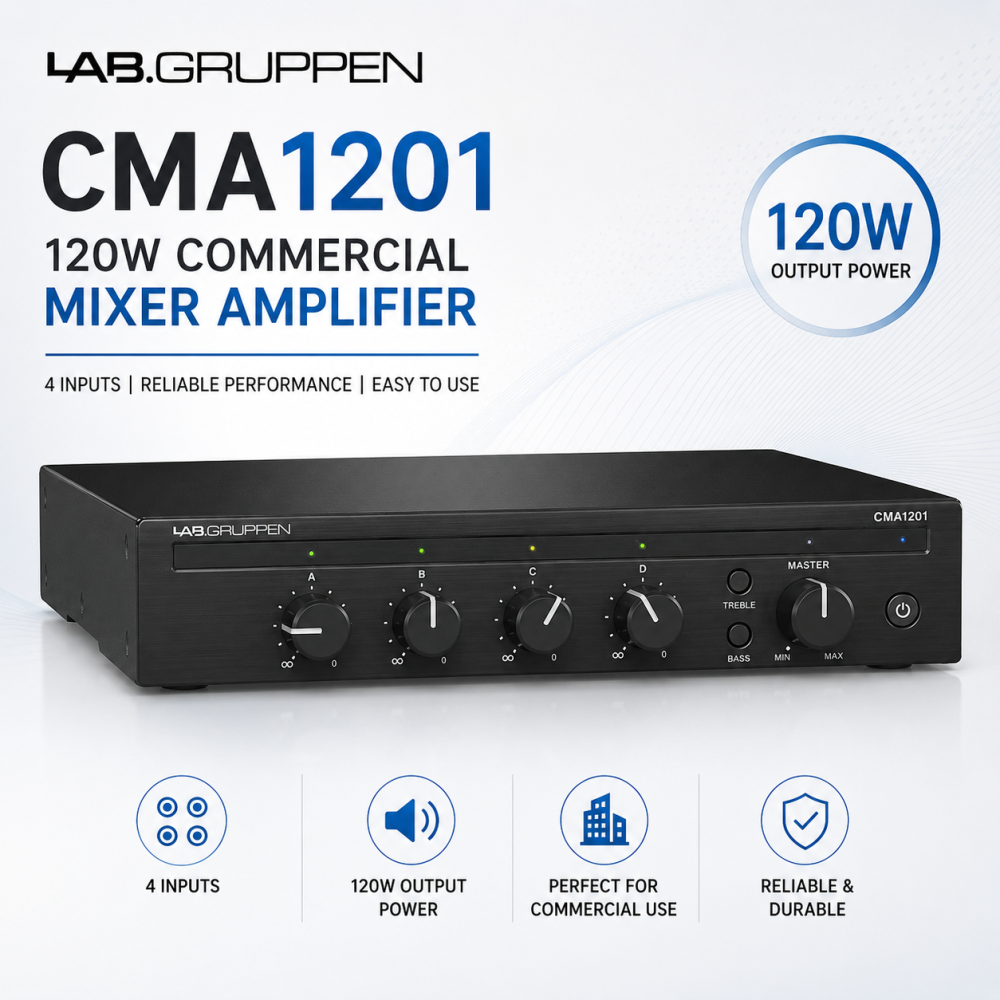

The Lab Gruppen CMA1201 is a 120W commercial mixer amplifier designed for installed sound applications in restaurants, retail outlets, offices, conference rooms, and educational facilities. With four input channels, it combines a powerful Class-D amplifier with an integrated audio mixer, enabling flexible audio routing and simple system control. The CMA1201 supports low-impedance (4/8Ω) and constant voltage (70/100V) speaker systems, making it ideal for both distributed audio and localized sound reinforcement. Its robust design, energy-efficient performance, and comprehensive protection features make it perfect for continuous operation in commercial environments.

✅ Key Features / Bullet Points:

• 120W commercial mixer amplifier with built-in 4-channel mixer

• Supports 4/8Ω and 70/100V constant voltage systems

• Four mic/line inputs with independent level control

• Class-D amplifier technology for high efficiency and low heat

• Bass and treble tone controls for sound adjustment

• Compact and durable design for reliable installation

• Integrated protection: thermal, overload, short circuit

• Ideal for background music, paging, and small-to-medium sound systems

⚙️ Basic Specifications:

• Type: Commercial Mixer Amplifier

• Output Power: 120W RMS @ 4/8Ω or 70/100V line

• Amplifier Class: Class-D

• Inputs: 4 × Mic/Line (XLR/TRS), 1 × Aux RCA

• Outputs: Euroblock or terminal block

• Tone Controls: Bass/Treble

• Frequency Response: 80 Hz – 16 kHz

• Protection: Thermal, overload, short circuit

• Dimensions (W × D × H): 300 × 280 × 90 mm

• Weight: 3.5 kg

📦 Packing Size & Weight:

• Box Dimensions: 350 × 350 × 120 mm

• Gross Weight: 4.2 kg
