Details

---

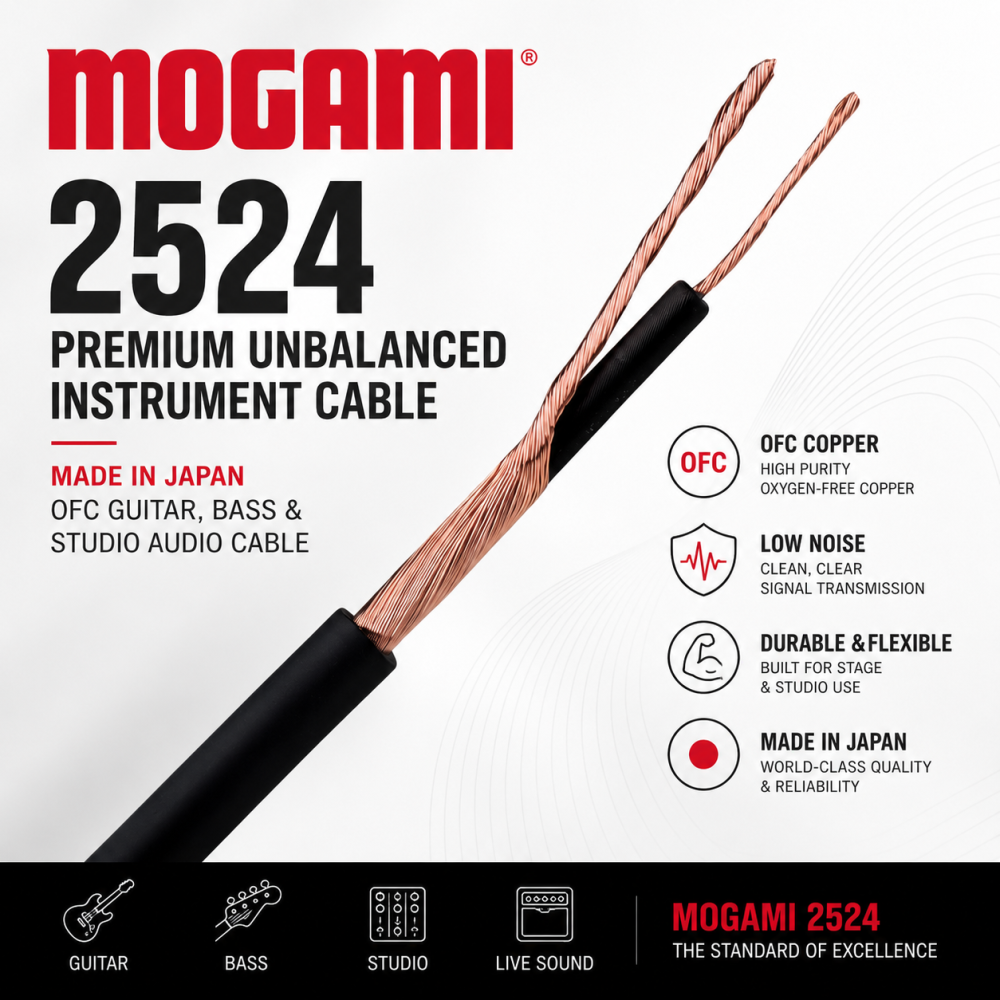

Mogami 2524 Premium Unbalanced Instrument Cable – Made in Japan OFC Guitar, Bass & Studio Audio Cable



The Mogami 2524 Premium Unbalanced Instrument Cable is specifically designed for high-impedance musical instrument pickups, such as electric guitars and basses. Most pickups generate signals with very little current, making them prone to microphonic noise when cables are flexed or stepped on. Mogami 2524 solves this issue with a conductive PVC sub-shield layer, draining away unwanted voltages and delivering the world-renowned low-noise, high-fidelity performance trusted by musicians and studios worldwide.
Made in Japan with Oxygen-Free Copper (OFC) conductors, Mogami 2524 ensures pristine signal transfer, long flex life, and durability for both stage and studio use.

Key Features

• Premium OFC conductor for superior signal clarity

• Conductive PVC sub-shield reduces microphonic noise

• Served shield construction for maximum noise rejection

• High flexibility and 15,000-cycle flex life for stage use

• Made in Japan with precise engineering and durability

• Available in bulk rolls for custom cable builds

Specifications

Item	Details
Part No.	W2524
Conductor	50/0.12A (0.565mm², #20AWG)
Insulation	PE, Ø2.7mm (Clear)
Sub-Shield	Conductive PVC (Black), Ø3.3mm
Main Shield	Served Shield, ~55/0.18A
Jacket	PVC, Ø6.0mm (Black)
Roll Sizes	100m / 200m
Weight (100m)	5.1kg
DC Resistance (20°C)	Inner: 0.033Ω/m, Shield: 0.014Ω/m
Capacitance (1kHz, 20°C)	130pF/m
Inductance	0.2µH/m
Microphonics	0.3mV Max
Flex Life	15,000 cycles
Temp Range	-20°C to +60°C
