Details

---

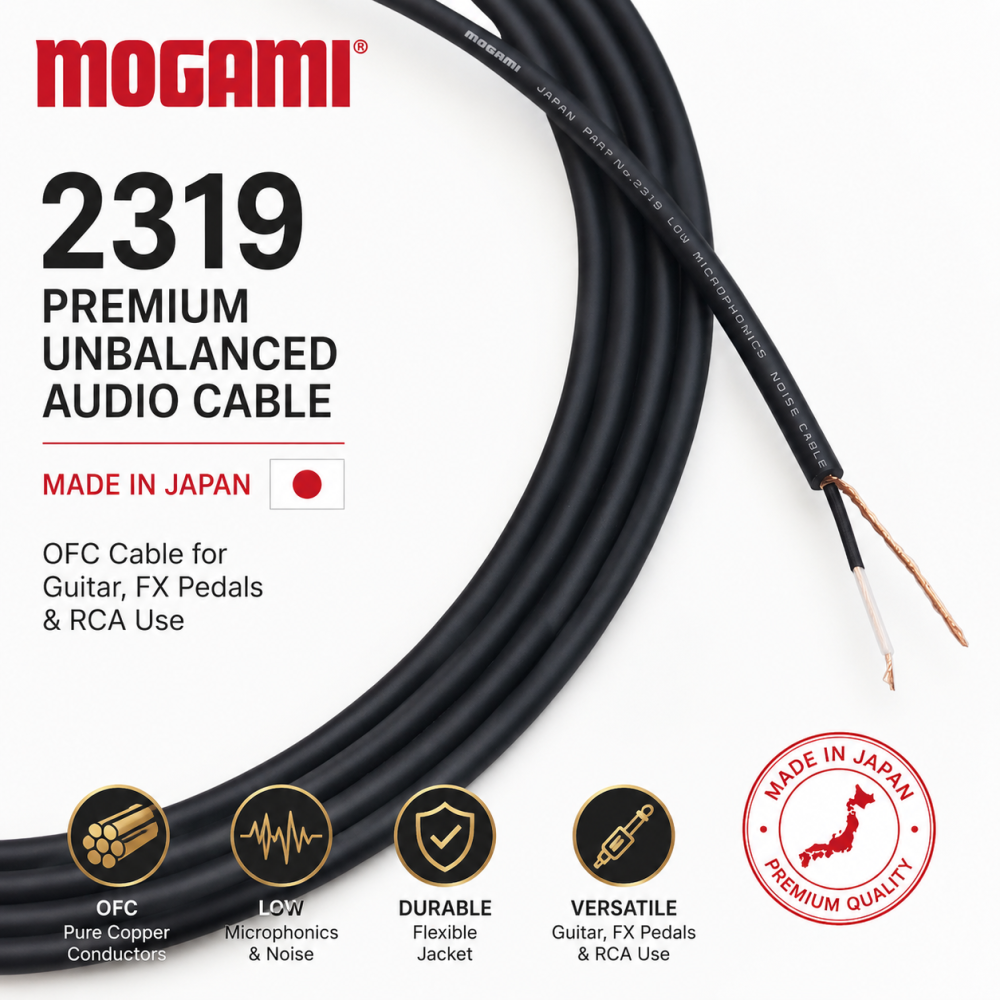

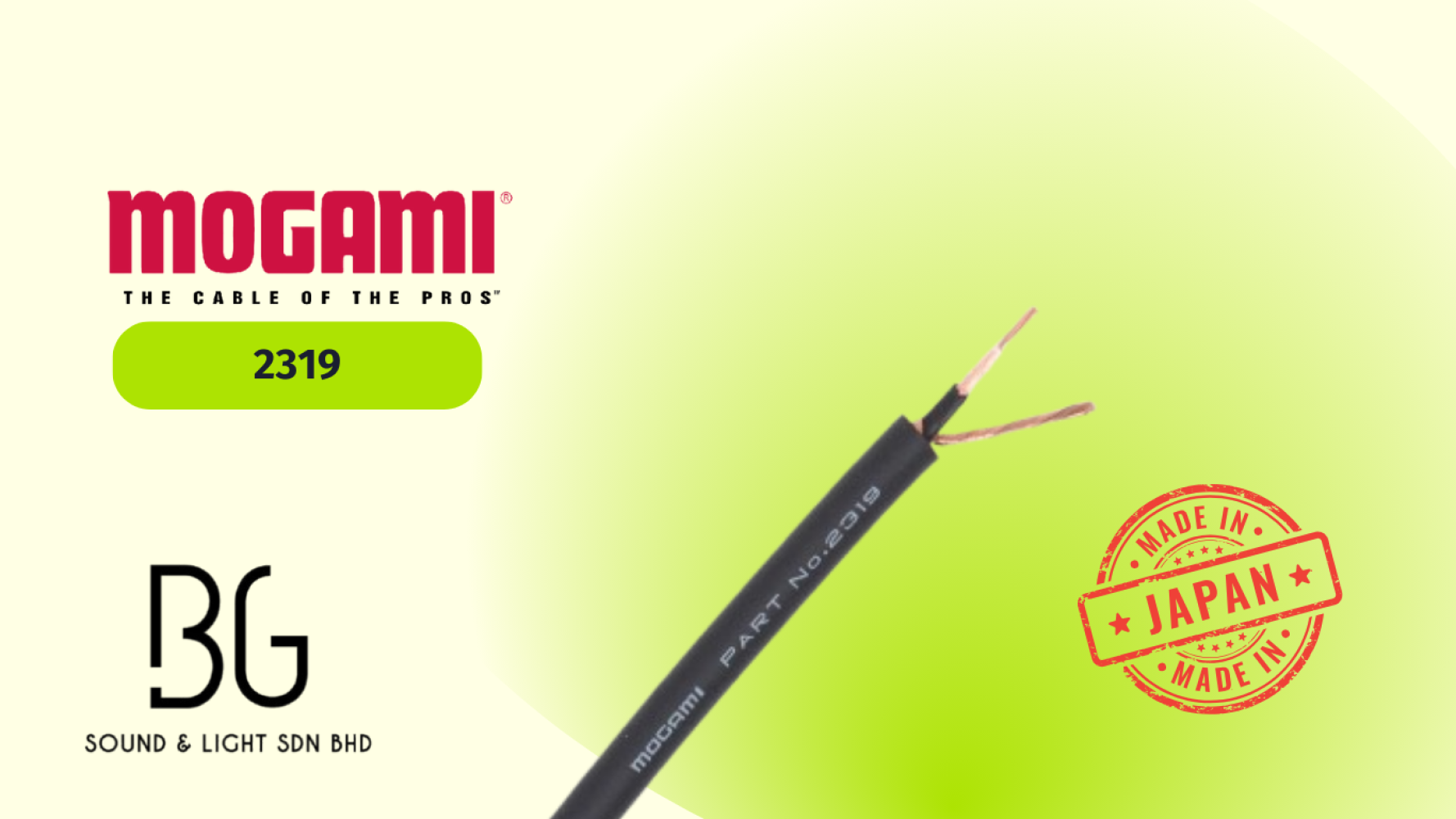

The Mogami W2319 Unbalanced Audio Cable is designed for short-run unbalanced connections such as guitar leads, FX pedal patch cables, and RCA interconnects. Like all Mogami instrument cables, the W2319 is engineered to prevent microphonic noise caused by flexing or stepping on the cable.
A conductive PVC layer under the served shield drains away unwanted voltage, ensuring ultra-low noise operation. Made in Japan with Oxygen-Free Copper (OFC) conductors, Mogami W2319 is trusted for its clarity, flexibility, and long life.

Key Features

• Premium OFC conductor for superior audio clarity

• Conductive PVC sub-shield reduces microphonic noise

• Lightweight, slim, and flexible (ideal for pedalboards & patch cables)

• Rugged PVC jacket for durability

• Made in Japan with Mogami’s legendary reliability

Specifications

Item	Details
Part No.	W2319
Conductor	12/0.18TA (0.305mm², #23AWG)
Insulation	PE, Ø1.6mm (Clear)
Sub-Shield	Conductive PVC (Black), Ø1.8mm
Main Shield	Served Shield, ~38/0.16TA
Jacket	PVC, Ø5.0mm (Black)
Roll Size	100m
Weight (100m)	3.5kg
DC Resistance (20°C)	Inner: 0.064Ω/m, Shield: 0.026Ω/m
Capacitance (1kHz, 20°C)	155pF/m
Inductance	0.3µH/m
Microphonics	0.3mV Max
Voltage Breakdown	DC 500V / 15sec
Insulation Resistance	100,000 MΩ × m (at DC 500V, 20°C)
Flex Life	11,000 cycles
Tensile Strength	303N
Temperature Range	-20°C to +60°C
