Details

---

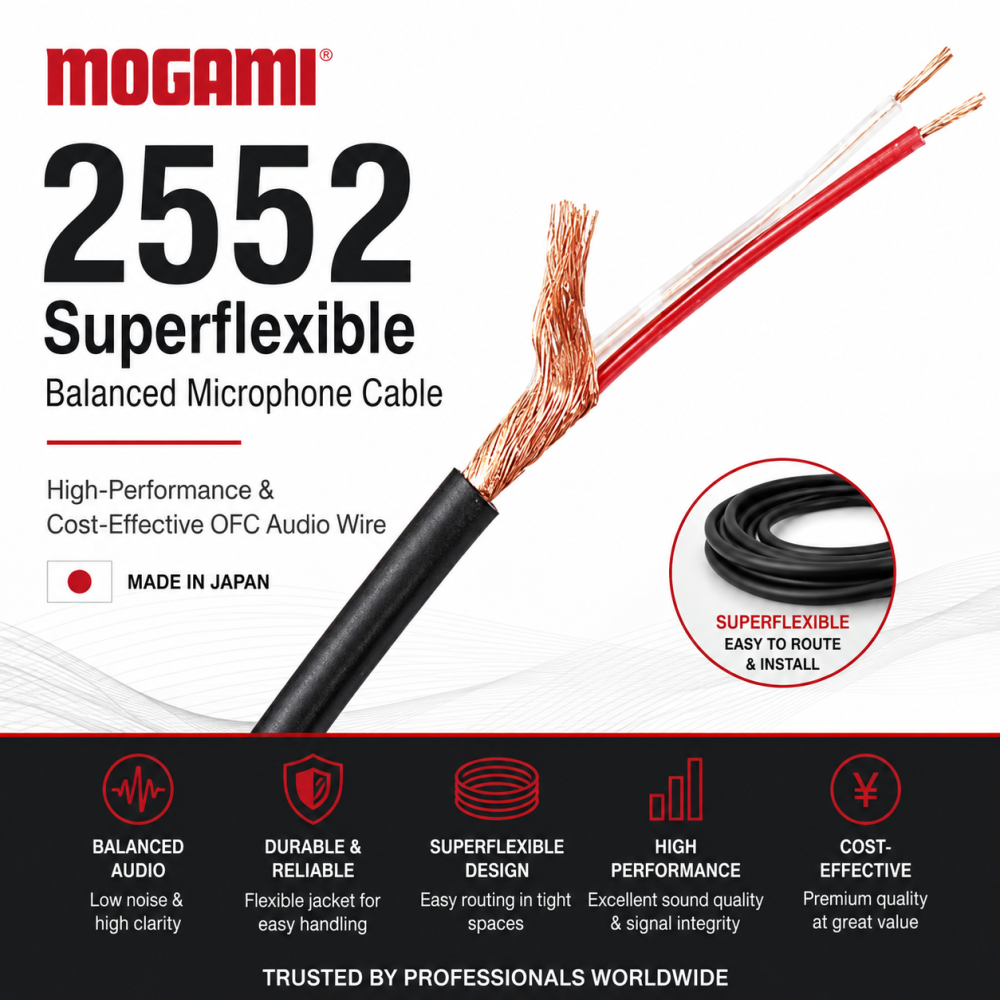

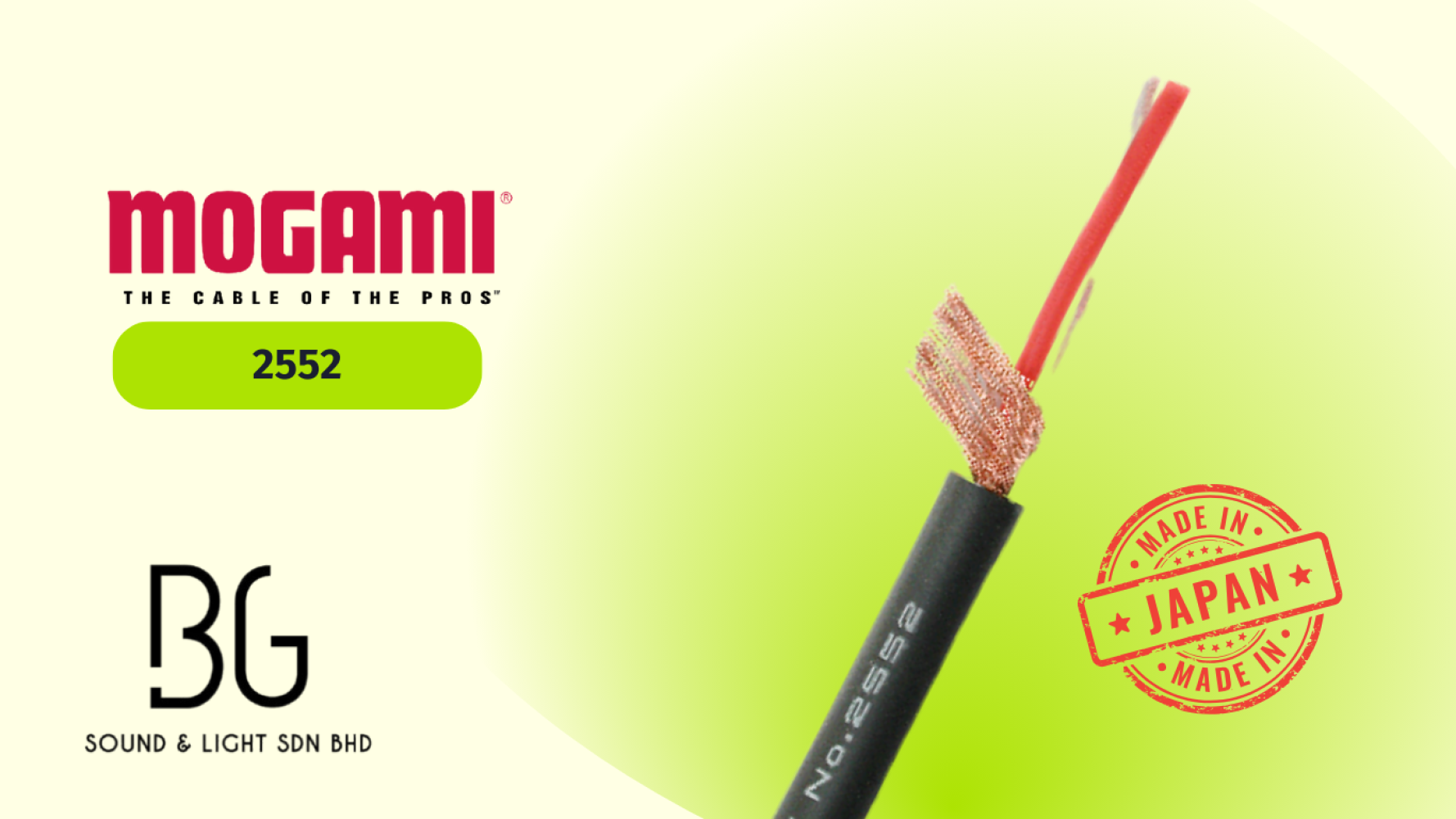

Mogami 2552 Superflexible Balanced Microphone Cable – High-Performance & Cost-Effective OFC Audio Wire (Made in Japan)



The Mogami 2552 Superflexible Balanced Microphone Cable is a specially developed, high-performance yet cost-effective low-impedance cable made in Japan. Designed for professional audio, broadcast, and A/V applications, the 2552 features NEGLEX OFC conductors and a rubber-like PVC jacket that offers superior flexibility, abrasion resistance, and durability.

Its small diameter and extremely limp design make it easy to handle and perfect for tight spaces, while high-grade XLPE insulation minimizes heat shrinkage during soldering, ensuring reliable XLR termination. Ideal for users who need a durable yet economical microphone cable without sacrificing sound quality.

Key Features (Bullet Points)

• High performance, cost-effective design – professional quality at an affordable price

• Superflexible PVC jacket with excellent abrasion resistance

• NEGLEX OFC conductors for low noise and superior signal clarity

• XLPE insulation minimizes shrinkage during soldering, ideal for XLR termination

• Compact and limp construction for easy handling and routing

• Durable and lightweight – withstands rough handling in stage and studio use

• Available in black jacket color

• Made in Japan with legendary Mogami reliability

Specifications



• Part No.: W2552

• Cable Type: Superflexible Balanced Microphone Cable

• Outer Diameter: 5.0 mm (0.197")

• Conductor: OFC, low impedance design

• Insulation: XLPE (Cross-Linked Polyethylene)

• Jacket Material: Rubber-like flexible PVC

• Flex Life: 11,000 cycles

• Tensile Strength: 421 N

• Color: Black

• Applications: Microphones, audio/visual setups, industrial audio, broadcast, stage and studio



• Part No.: W2552

• No. of Conductors: 2

• Electrical & Mechanical Characteristics

• DC Resistance @ 20°C
  • Inner Conductor: 0.14 Ω/m (0.043 Ω/ft)
  • Shield: 0.024 Ω/m (0.007 Ω/ft)

• Capacitance @ 1 kHz, 20°C
  • K0: 90 pF/m (27 pF/ft)
  • K1: 10 pF/m (3 pF/ft)

• Inductance (1 kHz, 20°C): 0.8 µH/m (0.24 µH/ft)

• Electrostatic Noise: 50 mV Max.

• Electromagnetic Noise: 0.15 mV Max.

• Microphonics @ 50KΩ Load: 30 mV Max.

• Voltage Breakdown: Must withstand DC 500V / 15 sec

• Insulation Resistance: 100,000 MΩ × m Min. @ DC 125V, 20°C

• Flex Life: 11,000 cycles

• Tensile Strength: 421 N

• Emigration: Non-emigrant to ABS

• Applicable Temperature: -20°C to +70°C (-4°F to +158°F)

•

• Conductor Details: 12/0.12 A <T250D*3>

• Conductor Size: 0.135 mm² (#26 AWG)

• Insulation: Ø 1.5 mm (0.059"), LNXLPE (Low Noise Cross-Linked Polyethylene)

• Insulation Colors: Red / Clear

• Served Shield: Approx. 67/0.12A

• Jacket Diameter: Ø 5.0 mm (0.197")

• Jacket Material: Flexible PVC

• Jacket Color: Black

• Roll Sizes: 50 m (164 ft), 100 m (328 ft), 200 m (656 ft)

• Weight (per 200 m Roll): 7.5 kg
