Details

---

🔊 Product Description

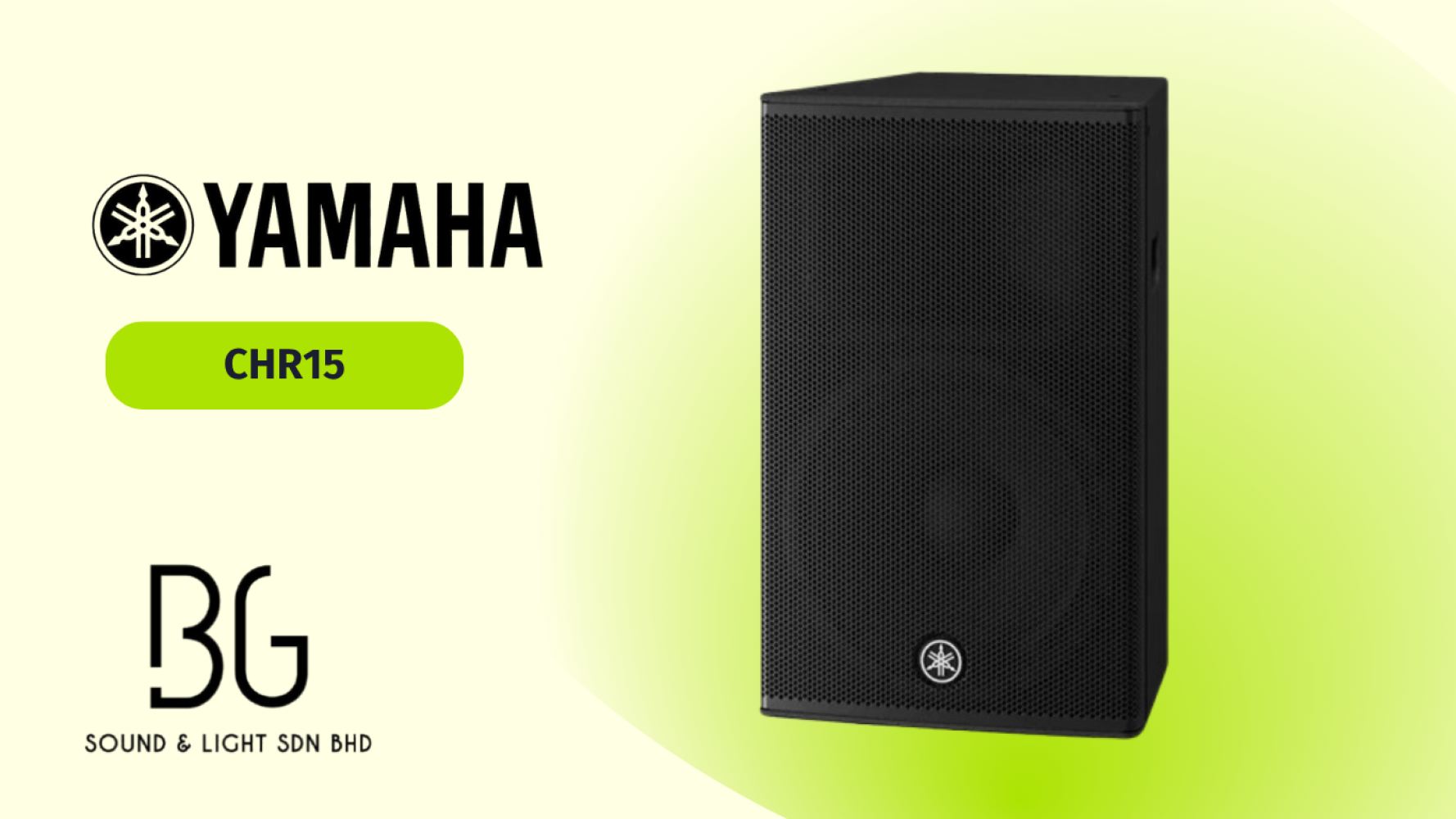

The Yamaha CHR15 is a 2-way passive loudspeaker designed for professional live sound reinforcement. Equipped with a 15-inch woofer and 1.4-inch HF compression driver, it delivers powerful low frequencies, smooth high-end, and consistent coverage. Built with the same plywood construction and polyurea coating as Yamaha’s flagship CZR Series, the CHR15 ensures exceptional durability, scratch resistance, and clear sound performance.

Its dual-angle pole socket, multiple rigging points, and versatile design make it suitable for front-of-house, installation, or portable PA applications. With up to 1000W peak power handling, the CHR15 offers reliable performance in concerts, DJ events, and fixed installations.

---

✅ Key Features / Bullet Points

• 2-way passive speaker with 15-inch LF woofer + 1.4-inch HF compression driver

• Frequency range: 49Hz – 20kHz for extended low-end response

• High SPL: 125dB peak output with 95dB sensitivity

• Power handling: 250W (Noise), 500W (PGM), 1000W (Peak)

• Durable plywood cabinet with polyurea coating – robust and scratch resistant

• Dual-angle pole socket (0° or -7° tilt) for flexible positioning

• Rigging points for eye-bolt installation in fixed setups

• Ideal for live sound, stage performance, DJ setups, and permanent installations

---

⚙️ Basic Specifications

• Speaker Type: 2-way, Bass-reflex

• Frequency Range (-10dB): 49Hz – 20kHz

• Coverage: H90° × V60°

• Crossover: 2.0 kHz

• Nominal Impedance: 8Ω

• Sensitivity: 95 dB SPL (1W @ 1m)

• Peak SPL: 125 dB SPL

• LF Driver: 15" cone, 2.5" voice coil, Ferrite magnet

• HF Driver: 1.4" diaphragm, 1" throat compression driver, Ferrite magnet

• Power Rating: 250W (Noise) / 500W (PGM) / 1000W (Peak)

• I/O Connectors: 2 × SpeakON NL4MP (Parallel)

• Cabinet Material: Plywood with durable black polyurea paint

• Handles: 2 × side handles

• Pole Socket: 35 mm (0° or -7° tilt)

• Rigging Points: Top ×2, Rear ×1 (M10 eyebolts)

• Dimensions (W × H × D): 432 × 692 × 405 mm

• Net Weight: 22.0 kg
