🔊 Product Description:

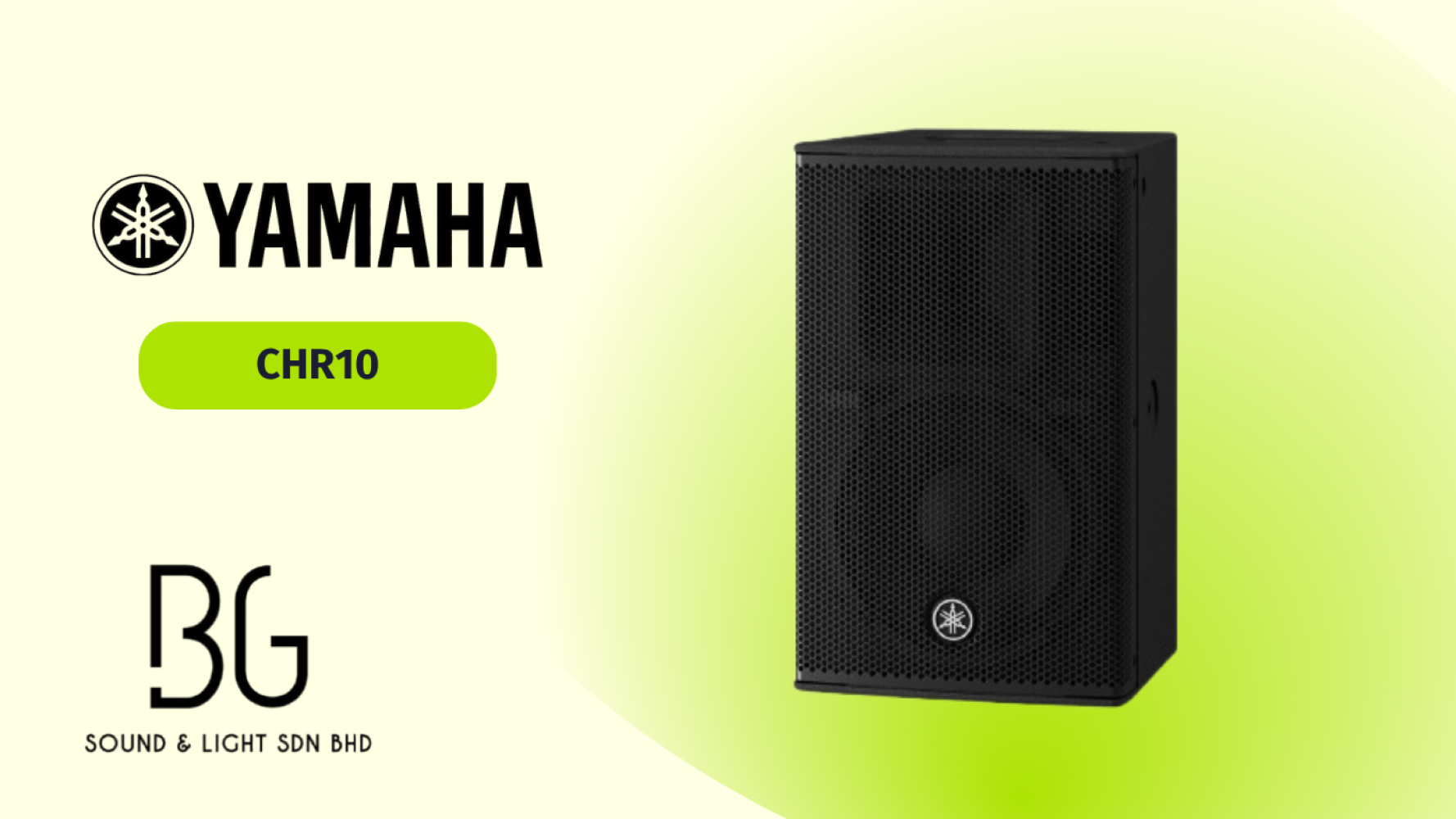

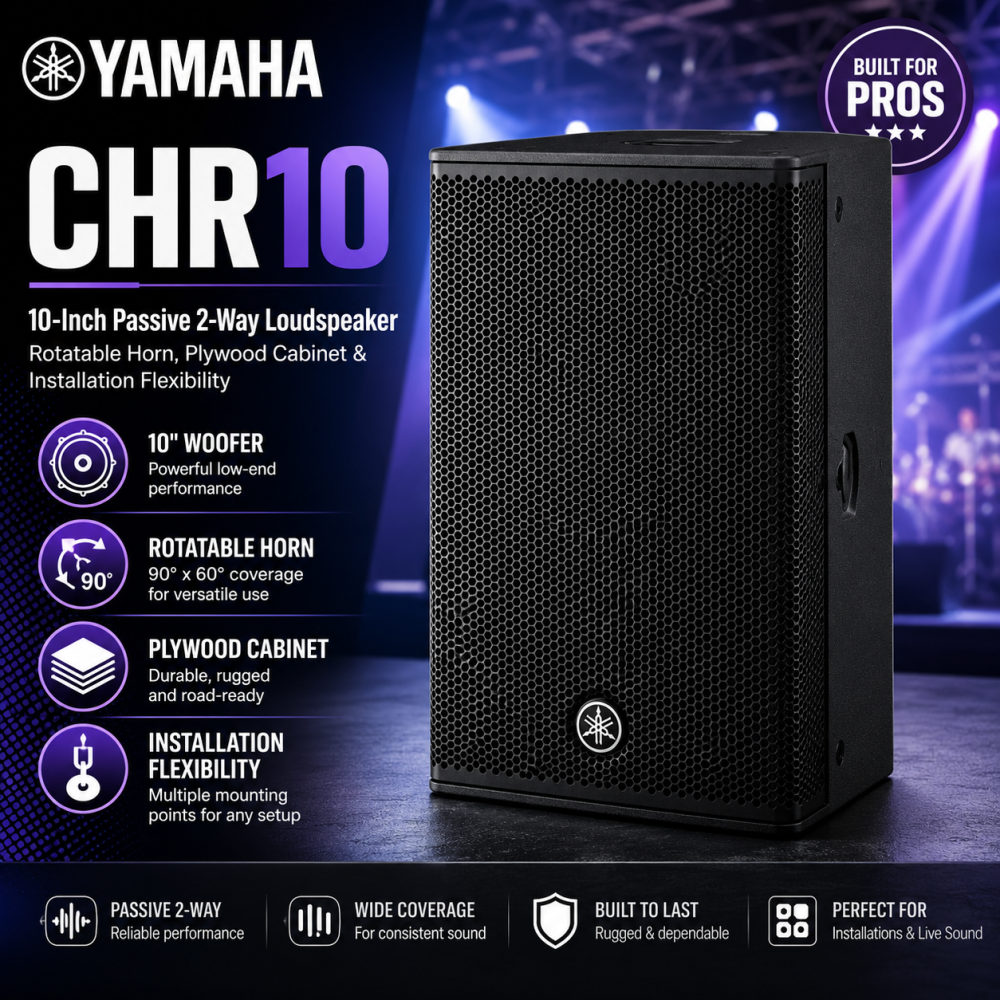

The Yamaha CHR10 is a compact 10-inch 2-way passive loudspeaker, engineered for versatile installation and high-quality sound reinforcement. With its rotatable horn, plywood cabinet, and durable polyurea finish, it delivers excellent clarity, flexibility, and reliability. Ideal for fixed installations, stage monitoring, or portable PA setups, the CHR10 ensures consistent performance across a wide range of environments.

✅ Key Features / Bullet Points:

• 10” LF driver with ferrite magnet for clear low-frequency response

• 1.4” HF compression driver with rotatable horn for flexible installation

• Power rating: 175W (Noise) / 350W (PGM) / 700W (Peak)

• Frequency response: 55 Hz – 20 kHz

• Maximum SPL: 122 dB

• 90° x 60° coverage with rotatable horn

• Durable plywood cabinet with polyurea coating for scratch resistance

• SpeakON NL4MP x2 parallel connectors

• Pole socket (Φ35 mm, bottom)

• Rigging points compatible with M10 eyebolts

• Compatible with Yamaha DSP-equipped amplifiers for optimized tuning

⚙️ Basic Specifications:

• Speaker Type: 2-way, Bass-reflex passive speaker

• Frequency Range (-10 dB): 55 Hz – 20 kHz

• Coverage: H90° x V60° (Rotatable)

• Crossover: 2.5 kHz

• Nominal Impedance: 8 Ω

• Sensitivity (1W/1m): 93 dB SPL

• Peak Output (Calculated): 122 dB SPL

• LF Driver: 10" cone, 2" voice coil, ferrite magnet

• HF Driver: 1.4" diaphragm compression driver, ferrite magnet

• Power Rating: Noise 175 W / Program 350 W / Peak 700 W

• Connectors: SpeakON NL4MP x2 (Parallel)

• Cabinet Material: Plywood with polyurea coating

• Finish: Black

• Handle: Top x1

• Pole Socket: Φ35 mm (Bottom x1)

• Rigging: Top x2, Rear x1 (M10 x 30–50 mm eyebolts)

• Dimensions (W x H x D): 305 × 494 × 300 mm (12.0" × 19.5" × 11.8")

• Net Weight: 13.7 kg (30.2 lbs)

• Options: UB-DXRDHR10 U-bracket
