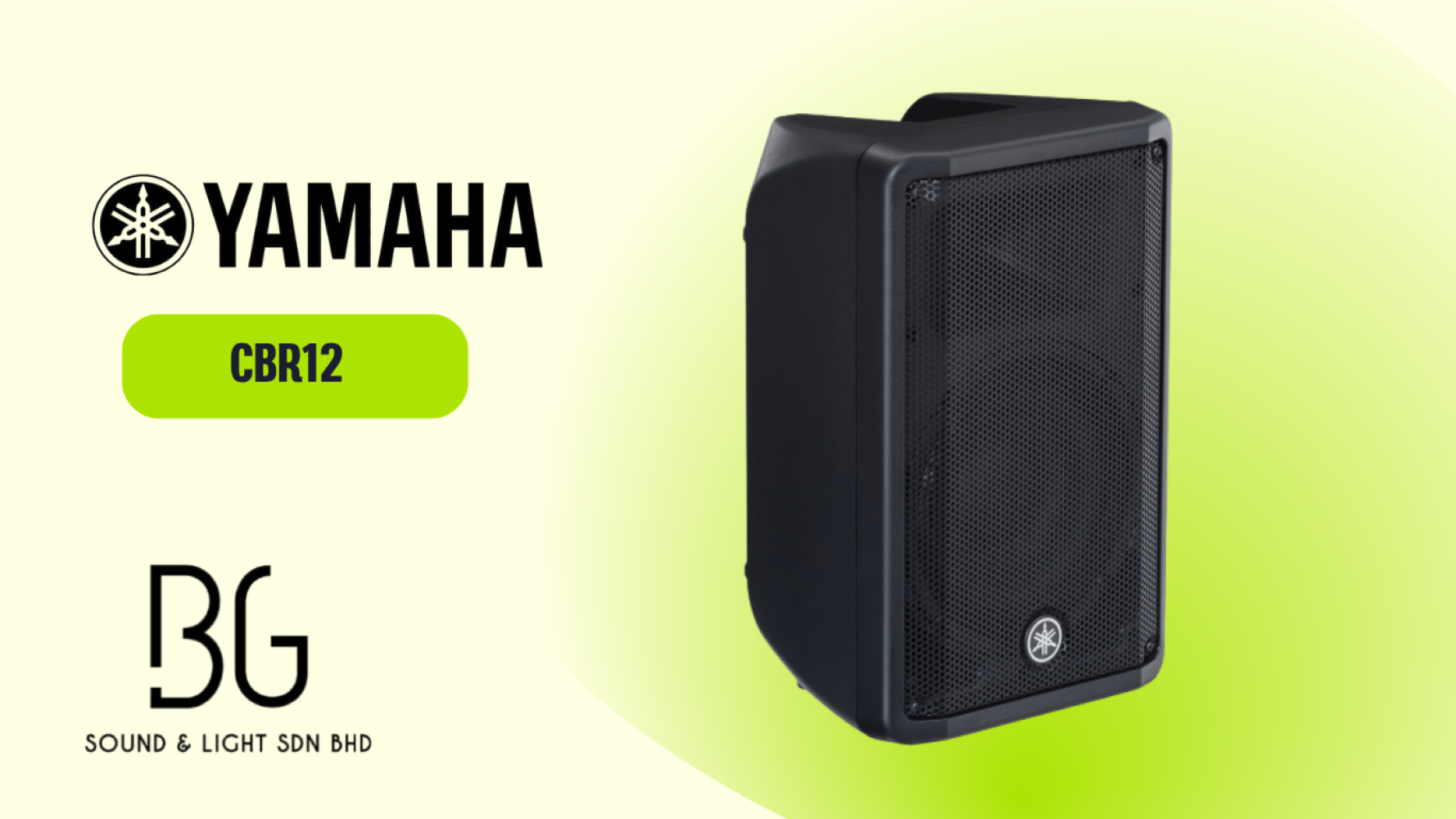

Yamaha CBR12 – 12-Inch 700W Passive Speaker for FOH, Monitor & Installations

🔊 Product Description:
The Yamaha CBR12 strikes the perfect balance between size and performance. With a 12-inch woofer, 1.4-inch compression driver, and 700W peak power, it delivers clear, powerful sound for a wide range of applications. Whether used for front-of-house, floor monitoring, or rigged installations, the CBR12 ensures consistent coverage, reliability, and superior Yamaha sound quality.

✅ Key Features / Bullet Points

• 12" LF cone driver + 1.4" compression HF driver

• Wide frequency response: 48 Hz – 20 kHz

• High SPL output: 125 dB peak

• Compact yet powerful 2-way bass-reflex design

• Rugged plastic cabinet with side handles for portability

• Flexible applications: FOH, monitor, or rigged setups

• 1/4" jack and speakON connectors for secure connectivity

• 35 mm pole socket for stand mounting

⚙️ Basic Specifications

• Speaker type: 2-way, Bass-reflex

• Frequency range (-10dB): 48 Hz – 20 kHz

• Coverage: H90° x V60°

• Crossover: 2.1 kHz

• Nominal impedance: 8 Ω

• SPL Sensitivity: 96 dB (1W/1m)

• Peak SPL: 125 dB

• Power rating: 175W (Noise) / 350W (PGM) / 700W (Peak)

• LF driver: 12" cone, 2" voice coil (Ferrite)

• HF driver: 1.4" compression driver (Ferrite)

• Connectors: 1/4" Phone x1, SpeakON NL4MP x1

• Cabinet: Plastic, Black finish

• Handles: Side x2

• Flying hardware: Bottom x2, Rear x1 (M8 x 15mm eyebolts)

• Pole socket: Φ35 mm (Bottom)

• Dimensions (W x H x D): 376 × 601 × 348 mm

• Net weight: 13.9 kg
