🎚️ Product Introduction

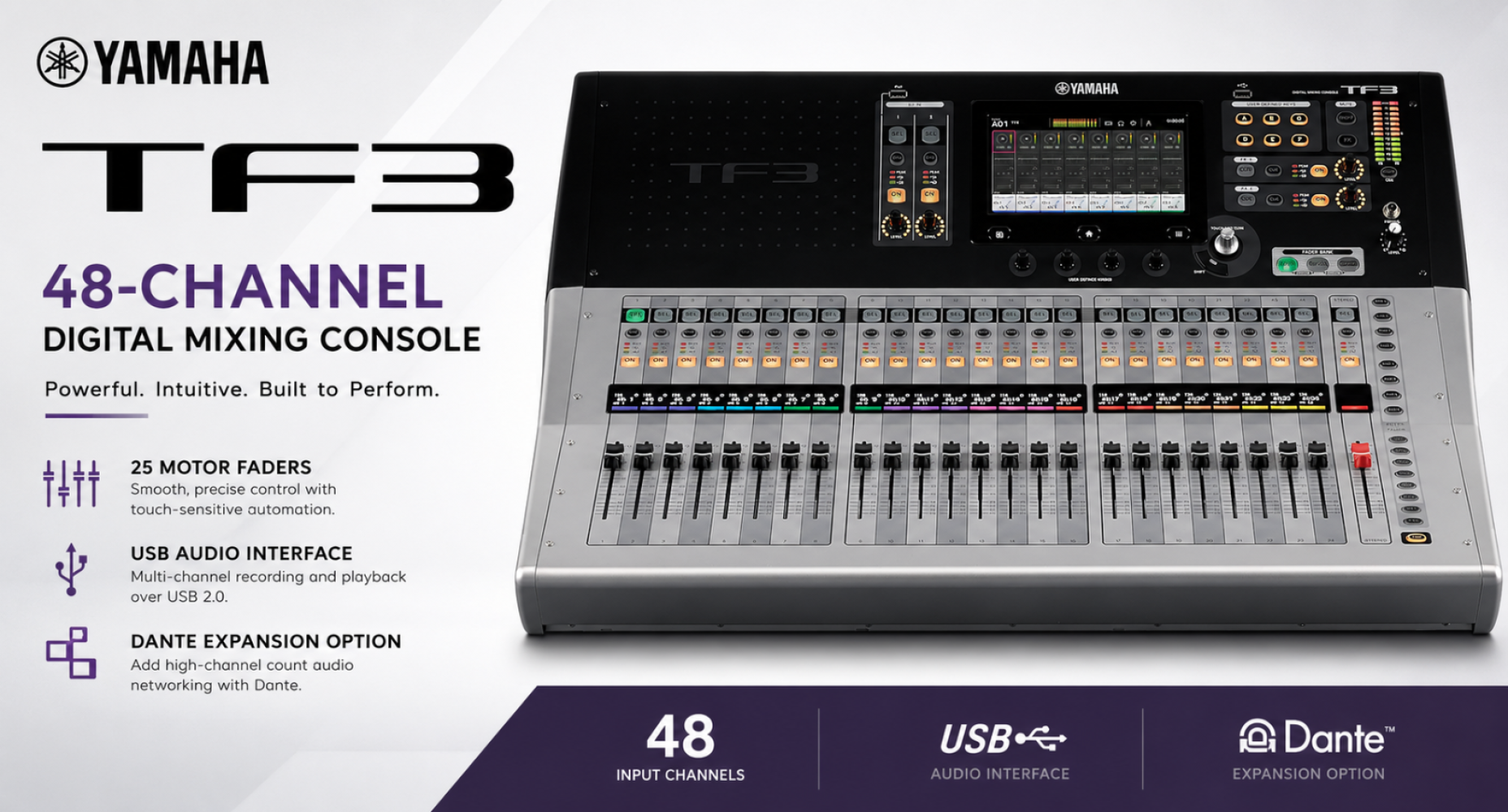

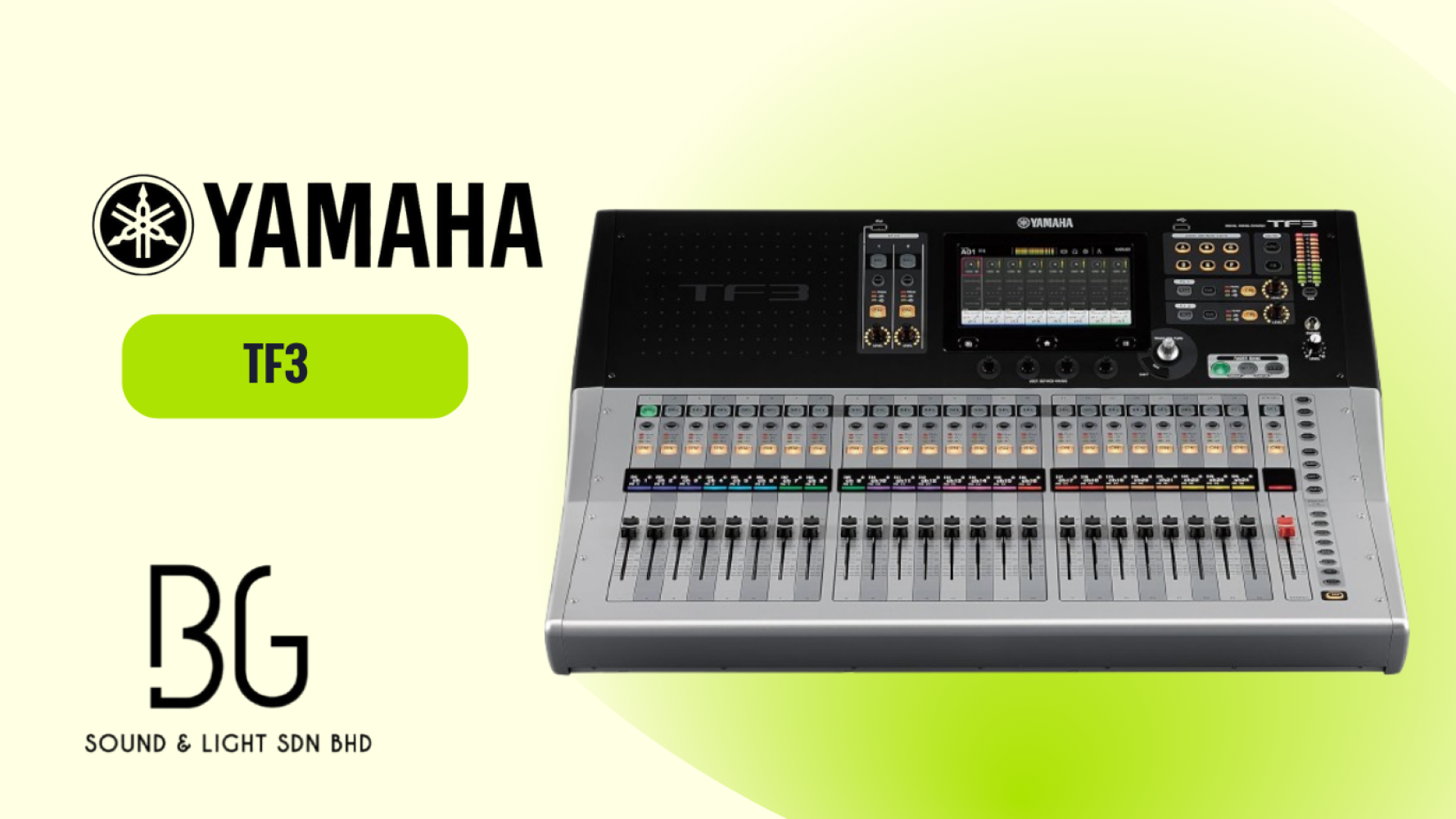

The Yamaha TF3 Digital Mixing Console delivers exceptional performance with powerful input capacity and hands-on control in a compact design. Featuring 25 motor faders, 48 input channels, and advanced DSP effects, the TF3 is engineered for live sound, recording, and installation applications. With intuitive TouchFlow™ Operation, 34x34 USB audio interface, and expansion support via NY64-D Dante card, the TF3 ensures professional-grade mixing with maximum flexibility.

---

✅ Key Features / Bullet Points

• 25 motorized faders (24 channels + 1 master)

• 48 input mixing channels (40 mono + 2 stereo + 2 return)

• 20 Aux buses (8 mono + 6 stereo), Stereo + Sub buses

• 8 DCA groups with roll-out function

• 24 mic/line XLR/TRS combo inputs + 2 stereo RCA inputs

• 16 XLR outputs for flexible routing

• 34x34 USB 2.0 interface + 2-track USB storage recording/playback

• High-resolution SPX digital effects + 10-band graphic EQ

• Less than 2.6 ms latency (input to output)

• 100 mm motorized faders with 10-bit resolution

• Optional NY64-D Dante expansion card for advanced networking

---

⚙️ Technical Specifications

• Fader Configuration: 24 + 1 (Master)

• Mixing Capacity: 48 channels (40 mono + 2 stereo + 2 return)

• Aux Buses: 20 (8 mono + 6 stereo)

• Stereo Buses: 1

• Sub Buses: 1

• DCA Groups: 8

• Inputs: 24 XLR/TRS combo + 2 RCA stereo

• Outputs: 16 XLR

• USB: 34x34 USB Audio Interface, 2-track USB recording/playback

• DSP Effects: 8 Effects + 10 GEQ

• Frequency Response: +0.5/–1.5 dB (20 Hz–20 kHz)

• Dynamic Range: 110 dB (DA converter), 107 dB (Input to Output)

• THD: Less than 0.05%

• Sampling Rate: 48 kHz

• Latency: < 2.6 ms

• Power Supply: 100–240 V, 50/60 Hz

• Power Consumption: 110 W

• Dimensions (W×H×D): 716 × 225 × 599 mm

• Weight: 17.0 kg

• Accessories: Quick Guide, Power Cord, NUENDO Live Software

• Options: NY64-D Dante Card, Foot Switch (FC5)
