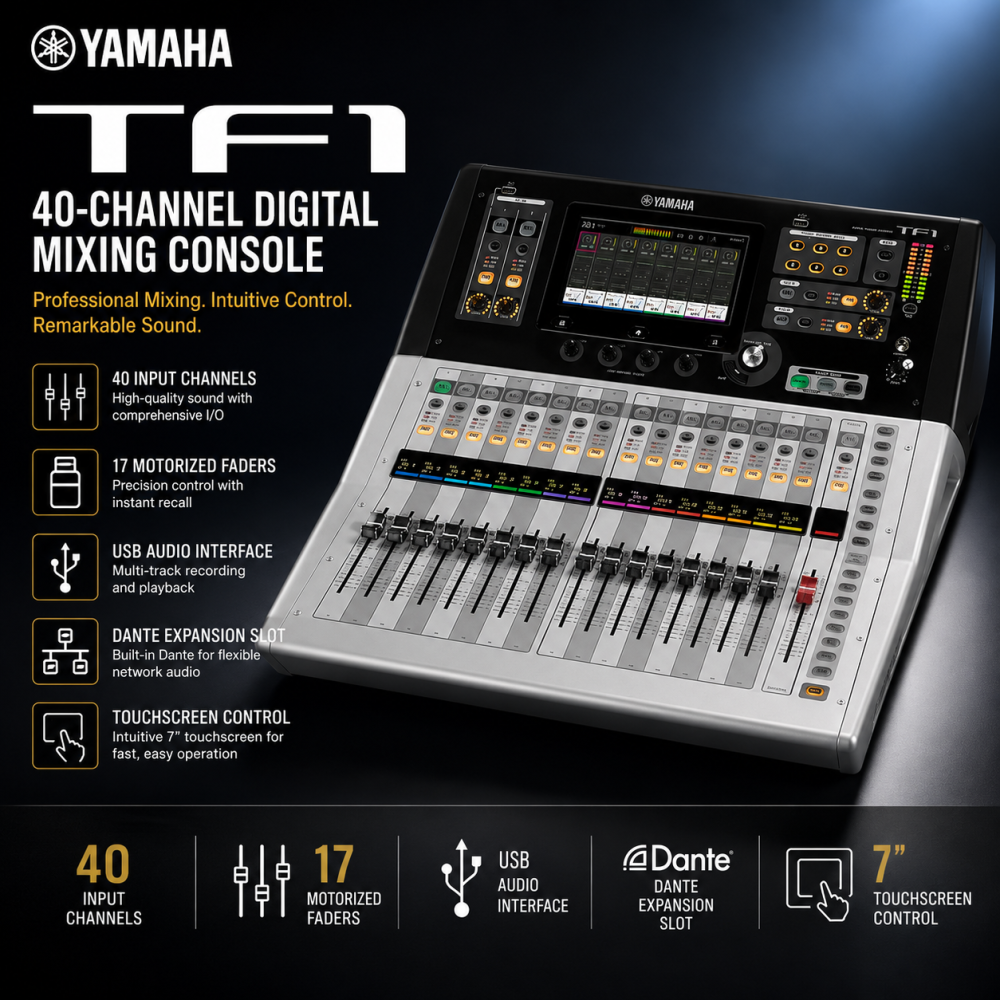

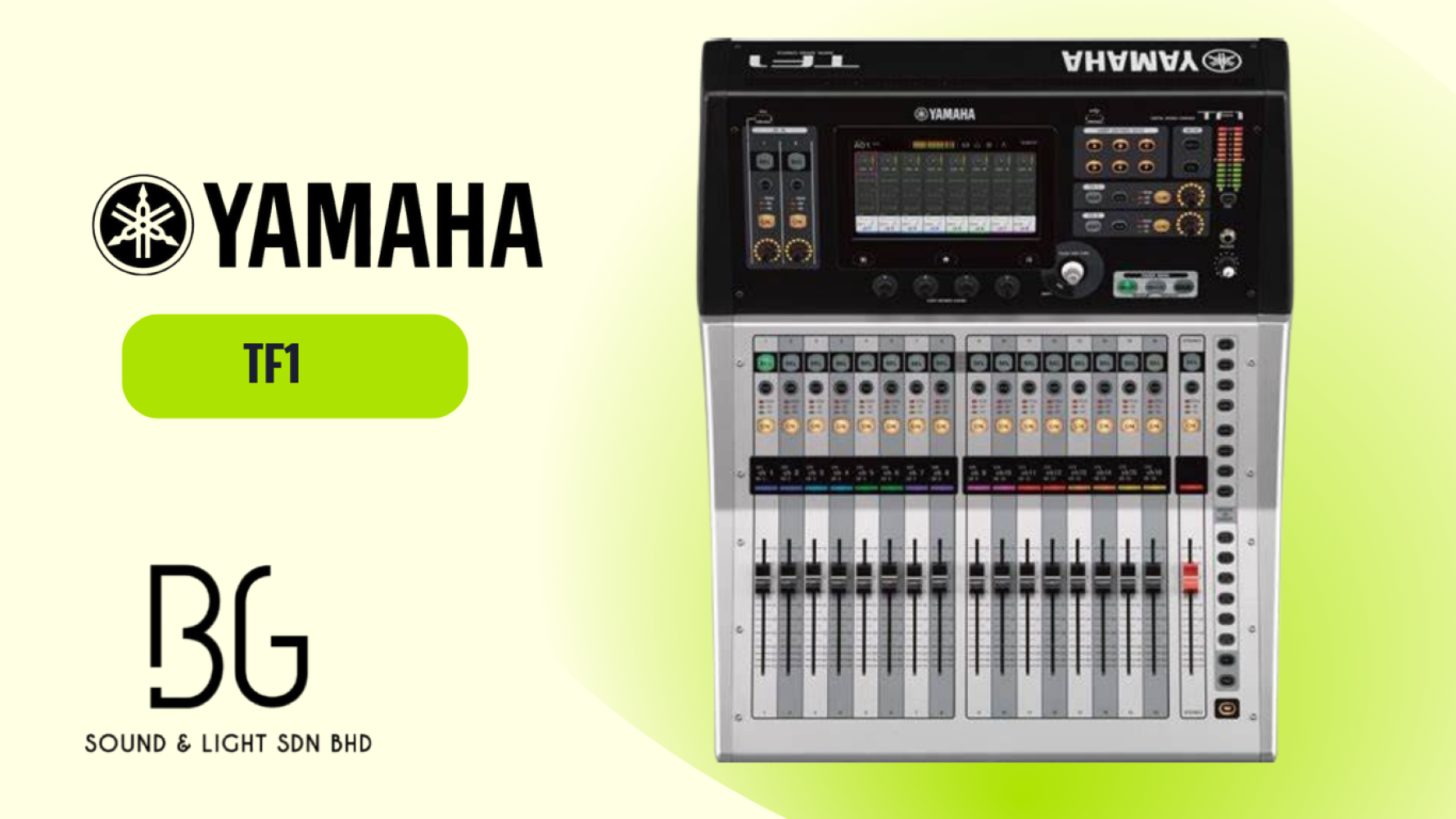

🎚 Yamaha TF1 Digital Mixing Console – Compact & Rack-Mountable Professional Mixer

The Yamaha TF1 is a compact yet powerful digital mixing console designed for small to medium-sized live sound systems, houses of worship, installations, and mobile applications. With its intuitive touch-panel operation, motorized faders, and versatile I/O, the TF1 delivers smooth workflow and outstanding sound quality in a portable design that can even be rack-mounted.

✅ Key Features / Bullet Points:

• 17 motorized faders (16 channels + 1 master)

• 40 input mixing channels (32 mono + 2 stereo + 2 return)

• 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub buses

• 8 DCA groups with Roll-out

• 16 XLR/TRS combo mic/line inputs + 2 RCA stereo line inputs

• 16 XLR analog outputs

• 34 x 34 digital record/playback via USB 2.0 + 2-track via USB storage

• 1 expansion slot for NY64-D Dante audio card

• 8 onboard effects + 10 GEQ for flexible sound shaping

• Lightweight, compact, and rack-mountable design

⚙️ Technical Specifications:

• Fader Configuration: 16 + 1 (Master) motorized, 100mm

• Mixing Capacity: 40 channels (32 mono + 2 stereo + 2 return)

• Aux Buses: 20 (8 mono + 6 stereo)

• Stereo Buses: 1

• Sub Buses: 1

• Input/Output: 16 XLR/TRS combo inputs, 2 RCA stereo inputs, 16 XLR outputs

• Expansion Slot: 1 (NY64-D compatible)

• USB Interface: 34 in / 34 out, plus 2-track record/playback

• DSP: 8 Effects + 10 GEQ

• Sampling Rate: 48 kHz

• Signal Delay: < 2.6 ms (Input → Omni Out)

• THD: < 0.05% (20 Hz–20 kHz @ +4 dBu)

• Frequency Response: +0.5 / -1.5 dB (20 Hz–20 kHz)

• Dynamic Range: 110 dB (DA Converter)

• Noise Level: EIN –128 dBu, Residual Output Noise –85 dBu

• Power Supply: 100–240V, 50/60 Hz

• Power Consumption: 100W

• Dimensions (W x H x D): 510 × 225 × 599 mm

• Net Weight: 13.5 kg

• Included Accessories: Quick Guide, Power Cord, Nuendo Live DAW software

• Options: Rack-mount kit RK5014, Expansion card, Foot Switch (FC5)
