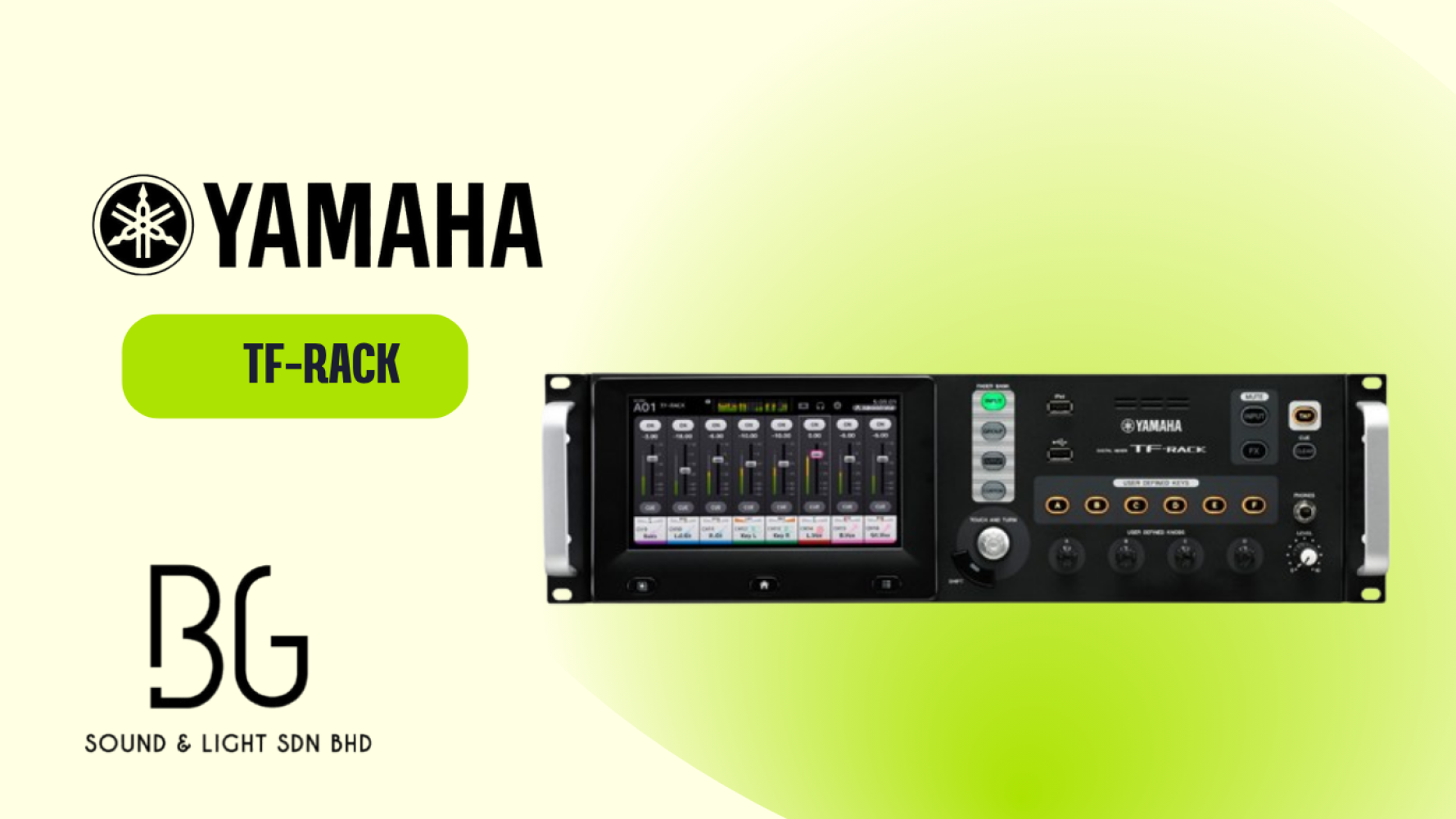

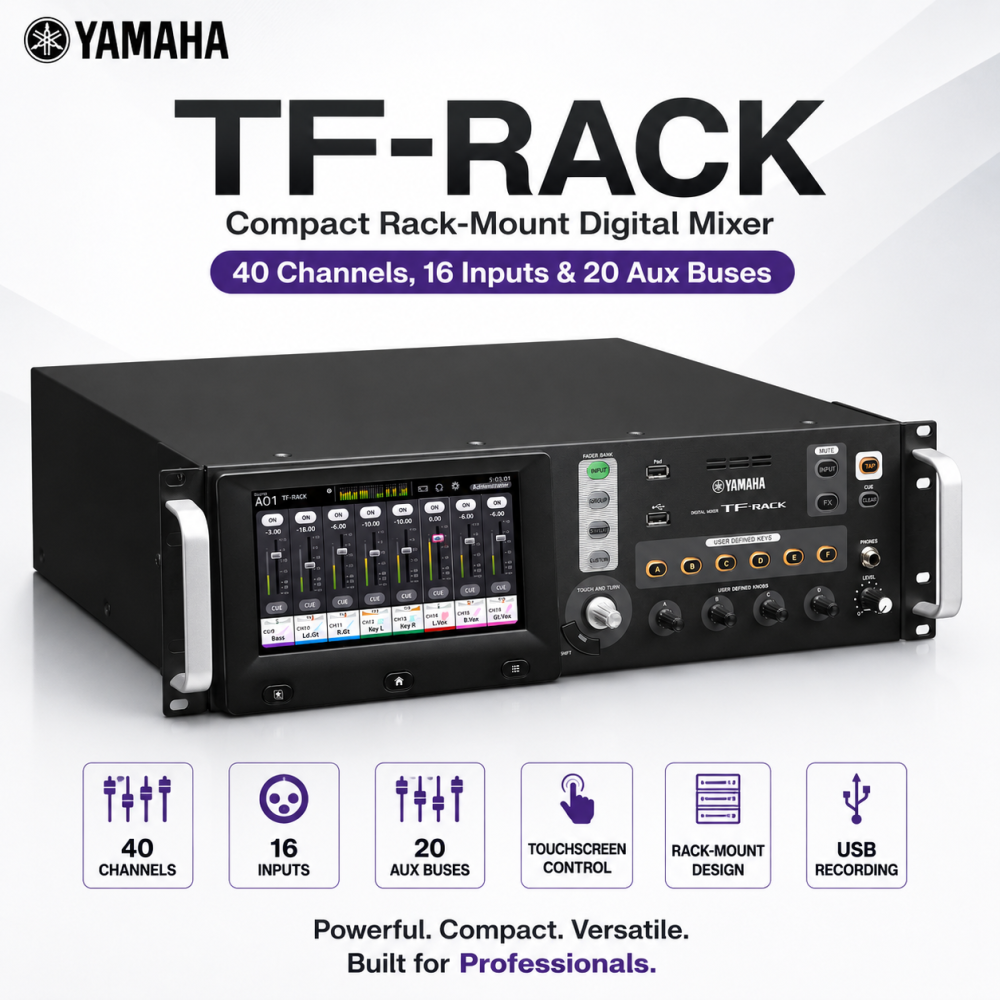

🔊 Yamaha TF-RACK – Compact Rack-Mount Digital Mixer

The Yamaha TF-RACK is a powerful rack-mount version of the TF Series digital mixers, combining portability and professional-grade features in a space-saving design. With 40 channels, 16 inputs, advanced DSP effects, and versatile connectivity, it is the ideal solution for installations, touring rigs, and portable live sound systems.

✅ Key Features

• Compact rack-mount digital mixer with TF Series operability

• 40 input channels (32 mono, 2 stereo, 2 return)

• 16 mic/line combo inputs + stereo RCA input

• 16 outputs (8 XLR + 8 TRS) for flexible routing

• 20 Aux buses, 1 Stereo bus, 1 Sub bus

• 8 DCA groups for efficient control

• 34x34 USB audio interface + direct 2-track USB recording/playback

• Powerful DSP: 8 effects processors + 10 GEQs

• Expansion slot for NY64-D Dante card

• Lightweight, portable, and road-ready rack-mount design

---

⚙️ Technical Specifications

Outline

• Mixing Capacity: 40 (32 mono + 2 stereo + 2 return)

• Aux Buses: 20 (8 mono + 6 stereo)

• Stereo Buses: 1

• Sub Buses: 1

• Input Channel Functions: 8 DCA Groups

I/O

• Inputs: 16 mic/line (XLR/TRS combo), 1 stereo line (RCA pin)

• Outputs: 16 (8 XLR + 8 TRS phone)

• Expansion Slots: 1 (for NY64-D)

On-board Processors

• DSP: 8 Effects + 10 GEQ

General Specifications

• Sampling Frequency: 48 kHz

• Signal Delay: <2.6 ms (INPUT to OMNI OUT, Fs=48 kHz)

• Fader Resolution: 10-bit, +10 dB to –138 dB, –∞

• THD: <0.05% (20 Hz–20 kHz, +4 dBu, 600Ω load)

• Frequency Response: +0.5, –1.5 dB (20 Hz–20 kHz)

• Dynamic Range: 110 dB (DA converter), 108 dB (INPUT to OMNI OUT)

• Equivalent Input Noise: –128 dBu typ.

• Residual Output Noise: –85 dBu

• Crosstalk: –100 dB

Power

• Requirements: 100–240 V, 50/60 Hz

• Consumption: 85 W

Dimensions & Weight

• W: 480 mm (18-7/8 in)

• H: 132 mm (5-1/4 in)

• D: 409 mm (16-1/8 in)

• Net Weight: 9.2 kg (20.3 lb)

Accessories

• Quick Guide, Power Cord, NUENDO LIVE software, Rubber stoppers (x4)

Options

• NY64-D Dante card, FC5 Foot Switch

Others

• Operating Temp: 0–40 °C

• Storage Temp: -20–60 °C
